Push-In Fittings
Push-in fittings provide a quick, tool-free connection for tubes, ensuring fast installation and leak-free performance. Designed for efficiency, they improve machine productivity and reduce maintenance costs.

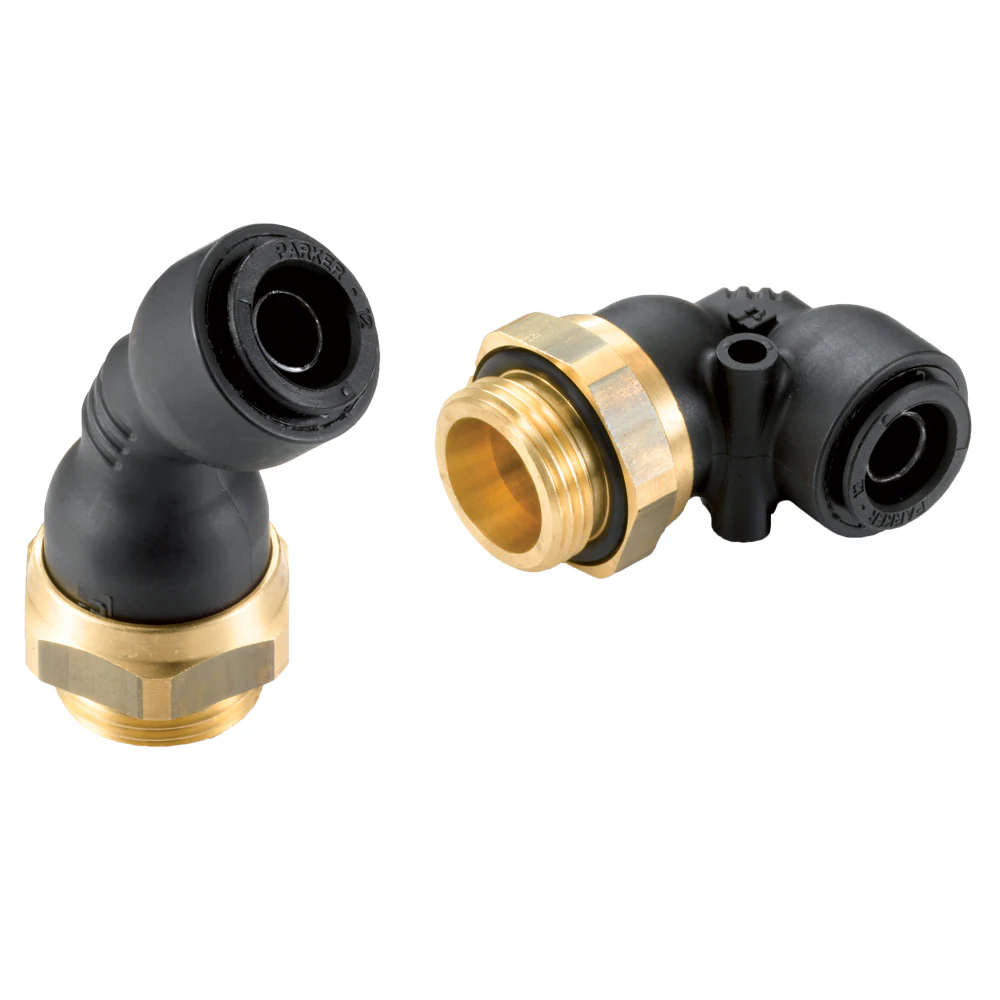

Connection
- Enables quick manual connection and disconnection without tools, ensuring fast and easy installation.
- Features color-coded release buttons (5 options) for simple identification of different circuits.

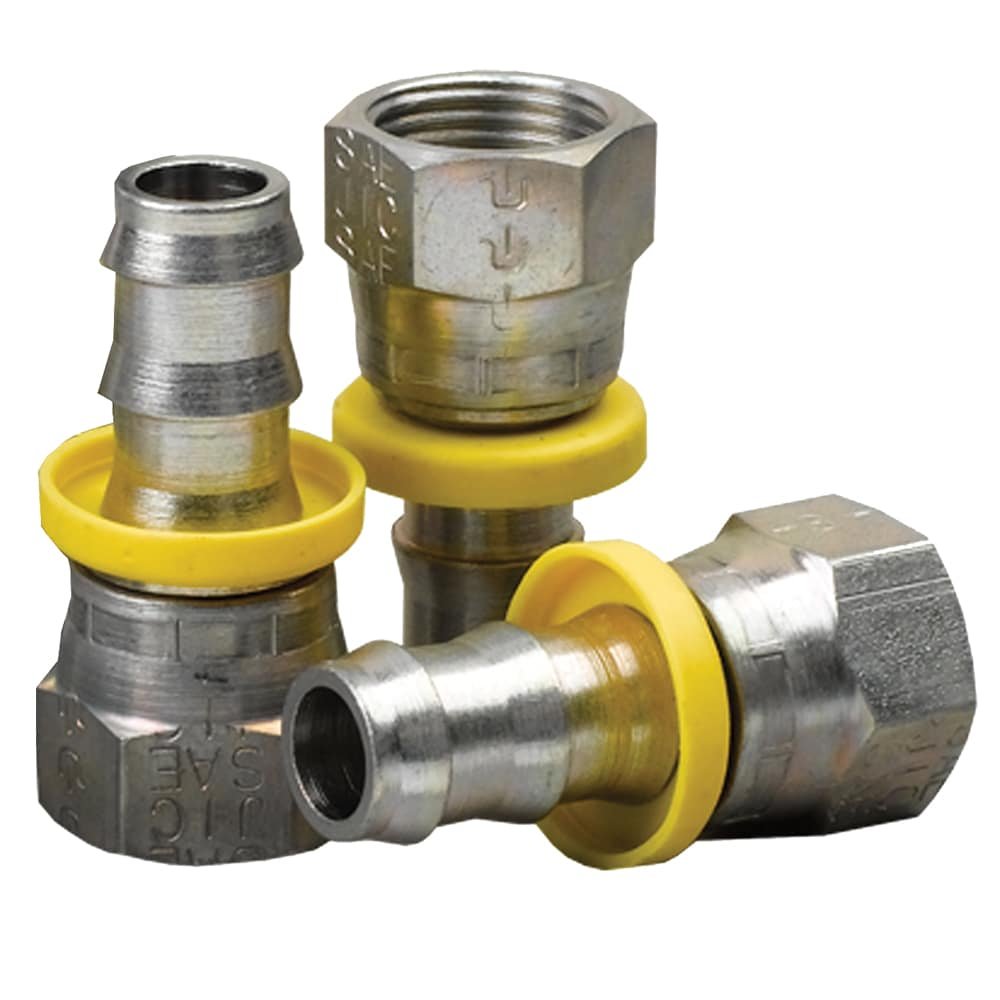

Assembly
- Straight connectors feature an internal hexagon design for easy installation using an Allen spanner.
- Enables quick and convenient assembly even in restricted or tight spaces.
Sealing & 100% Leak-Tested
High-quality sealing materials ensure long-lasting, leak-free performance and reliable operation across applications. Designed for durability, these fittings deliver excellent return on investment.
Key Features & Benefits
Patented sealing technology for superior performance
Premium materials: NBR, EPDM, FKM
Ultra-low leak rate across temperatures and usage
Suitable for primary vacuum applications
Full bore design for maximum flow efficiency
Secure tube gripping for safe and stable connections
Gripping Ring Technology
- Ideal for polymer tubing, including soft tubing
- Ensures excellent tube guidance
- Prevents tube movement under pressure
- Compact design for space-saving installation

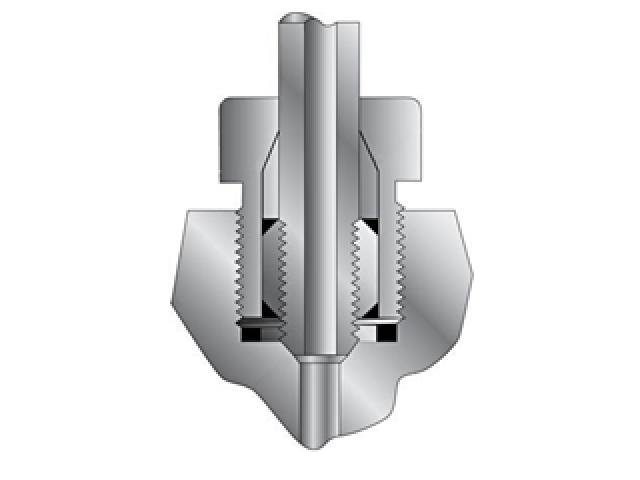

Gripping with Collet
- Suitable for polymer and grooved metal tubing
- High resistance to pressure for reliable performance
- Long service life with durable construction
- Robust design for harsh and demanding environments
Gripping with Reversed Collet
- Suitable for rigid polymer and grooved metal tubing
- High resistance to pressure
- Excellent durability for long-term use
- Ensures optimum sealing performance

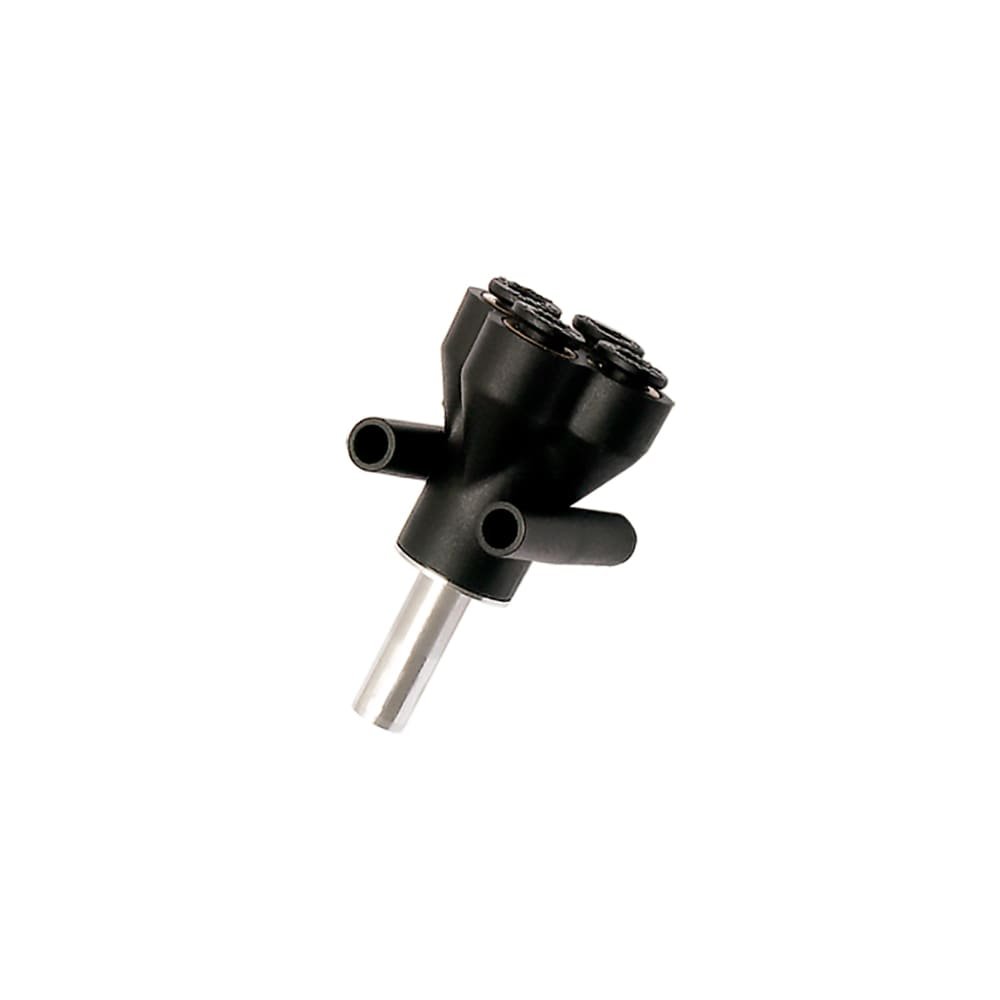

LF 3000® Push-In Fittings
Fluids
Compressed air
Materials
Technical polymer, nickel-plated brass, NBR
Pressure Rating
Up to 20 bar
Temperature Range
-20°C to +80°C
Size Range (Metric)
3 mm to 16 mm
Size Range (Inch)
1/8″ to 1/2″

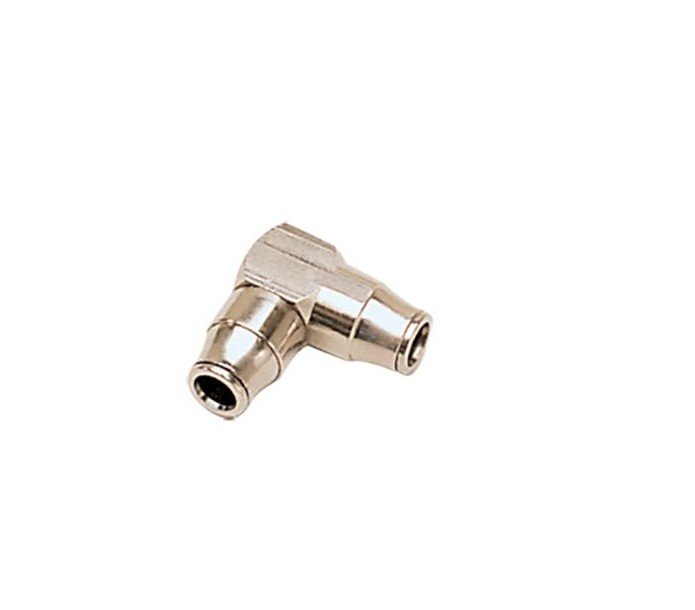

LF 3200 Push-In Fittings (3 mm)
Fluids
Compressed air, non-corrosive fluids
Materials
Chemical nickel-plated brass, NBR
Pressure Rating
Up to 20 bar
Temperature Range
-15°C to +80°C
Size (Metric)
3 mm

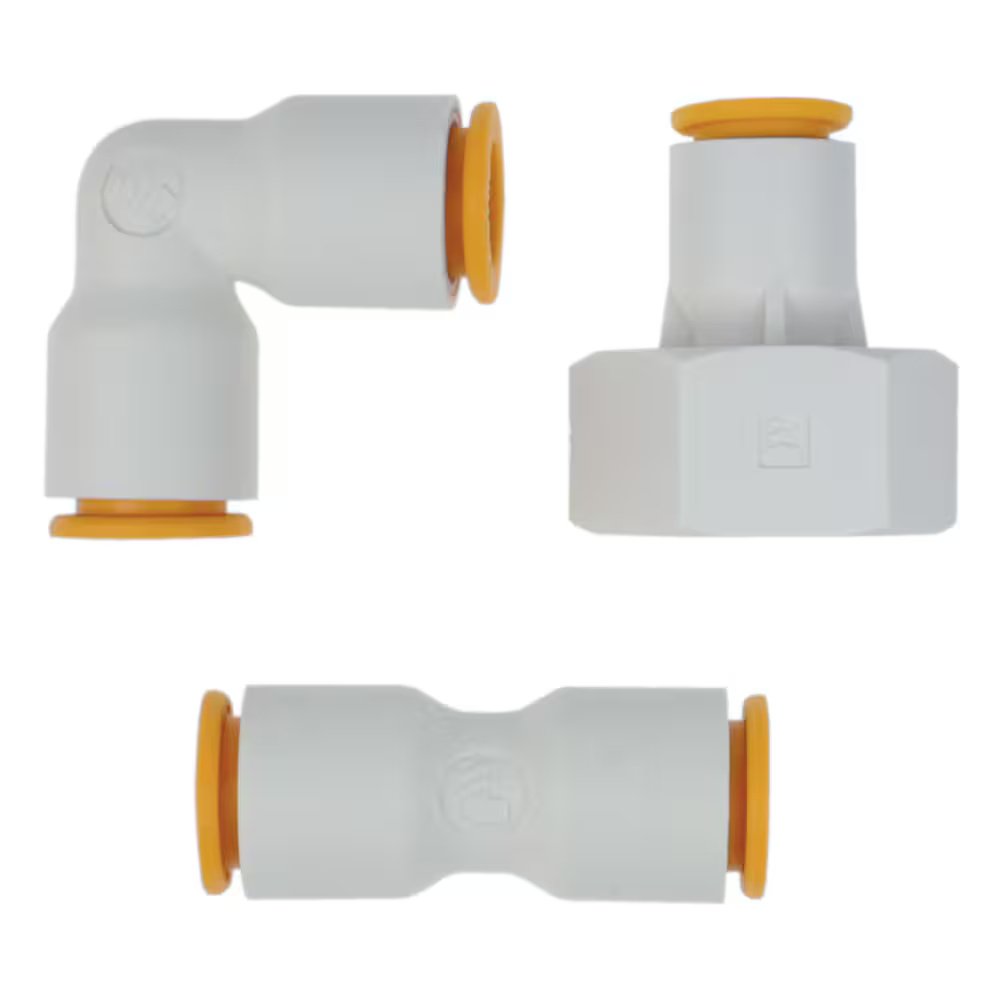

LIQUIFIT® Push-In Fittings
Fluids
Water, beverages, coolants, inert gases
Materials
Biopolymer, EPDM, nickel-plated brass or stainless steel
Pressure Rating
Up to 16 bar
Temperature Range
-10°C to +95°C
Size Range (Metric)
4 mm to 12 mm

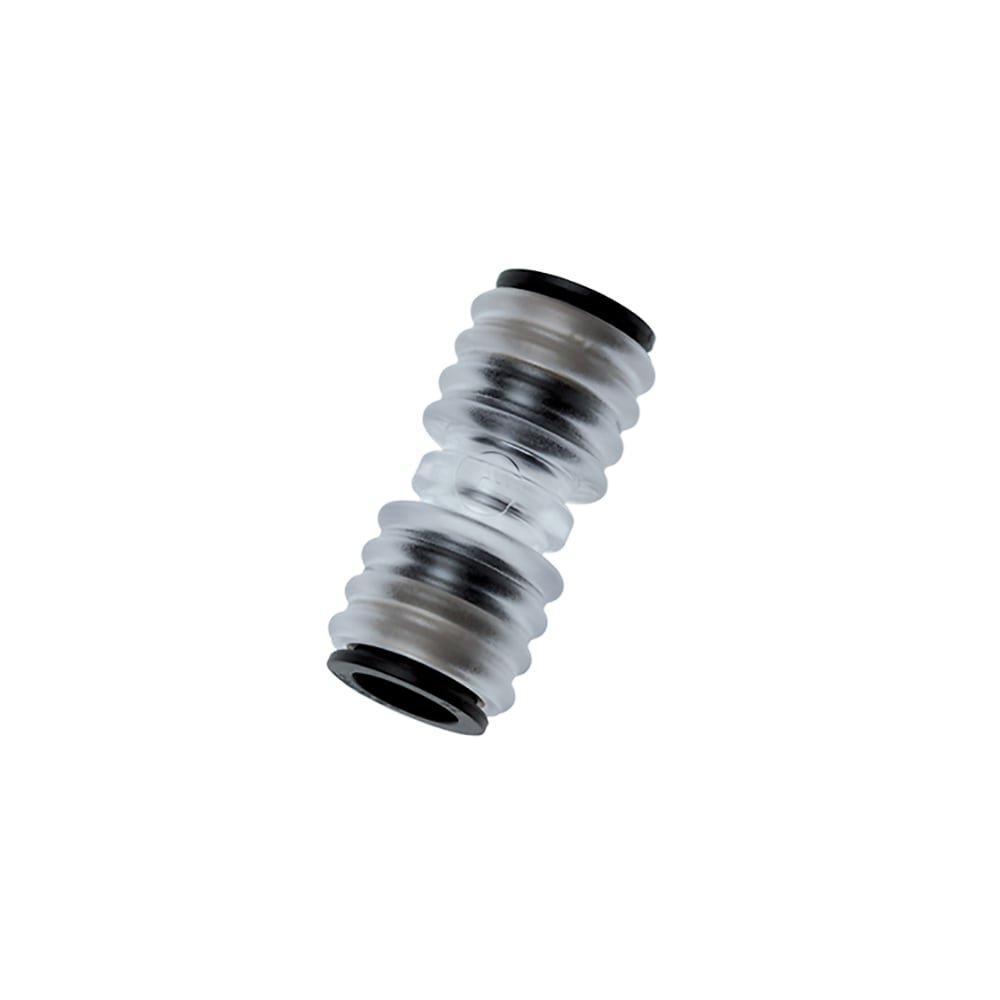

LF 6270 Connectors (Optic Fibre Networks)
Fluids
Compressed air, industrial water
Materials
Technical polymer, NBR
Pressure Rating
Up to 25 bar
Temperature Range
-20°C to +80°C
Size Range (Metric)
5 mm to 14 mm

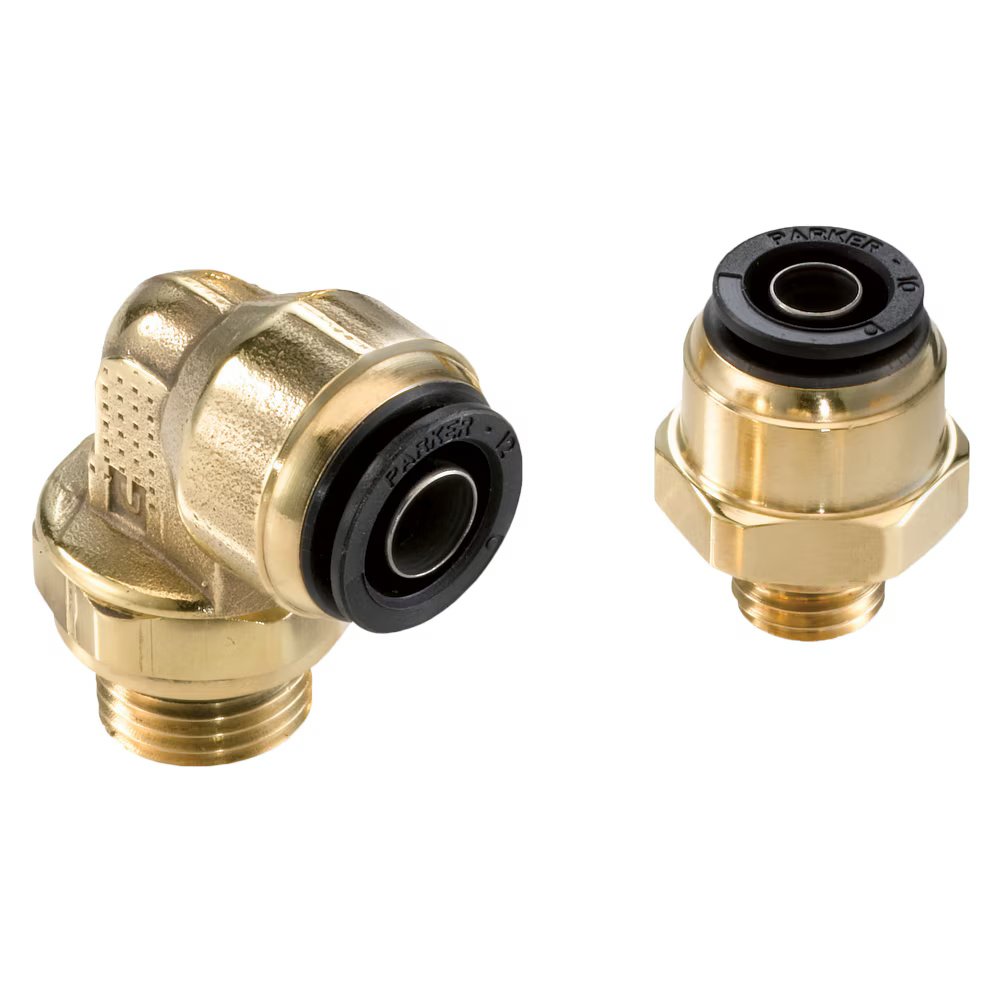

Prestomatic Push-In Fittings
Fluids
Compressed air
Materials
Technical polymer, brass, NBR
Pressure Rating
Up to 25 bar
Temperature Range
-50°C to +100°C
Size Range (Metric)
6 mm to 16 mm

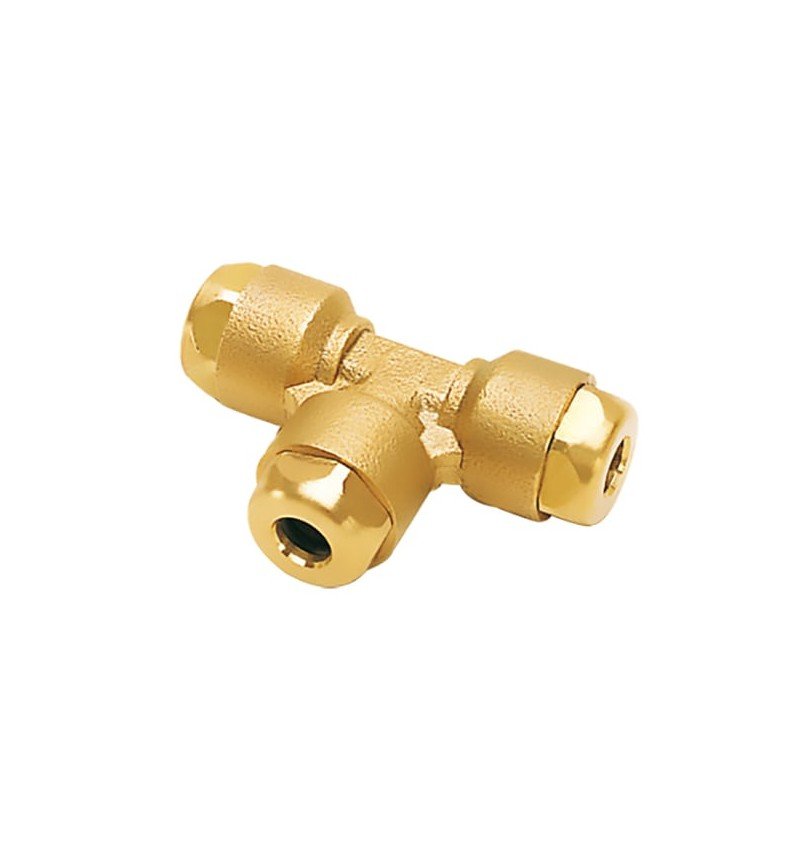

LF 6100 Push-In Fittings
Fluids
Compressed air, oil, water
Materials
Brass, NBR
Pressure Rating
Up to 60 bar
Temperature Range
-40°C to +120°C
Size Range (Metric)
4 mm to 10 mm
LF 3800 / LF 3900 Push-In Fittings
Fluids
Industrial fluids, chemicals, medical fluids, beverages
Materials
Stainless steel, FKM
Pressure Rating
Up to 30 bar
Temperature Range
-25°C to +150°C
Size Range (Metric)
4 mm to 12 mm
Size Range (Inch)
3/16″ to 1/2″
Braking System Adaptors
Fluids
Compressed air
Materials
Brass, NBR
Pressure Rating
Up to 25 bar
Temperature Range
-40°C to +100°C
LF 3600 Push-In Fittings
Fluids
Compressed air, slightly corrosive fluids
Materials
High phosphorus nickel plated brass, FKM
Pressure Rating
Up to 30 bar
Temperature Range
-25°C to +150°C
Size Range (Metric)
4 mm to 14 mm
Technical Tubing &Hoses
A wide range of high-quality tubing and hoses for compressed air, industrial fluids, and specialized applications.
PA & PU Tubing
Flexible, durable, multi-color options
Antistatic & Fire-Resistant
For specialized environments
Food-Grade Tubing
PE, FEP, PFA: Safe for beverages
Recoil & Braided
Space-saving & high-strength designs

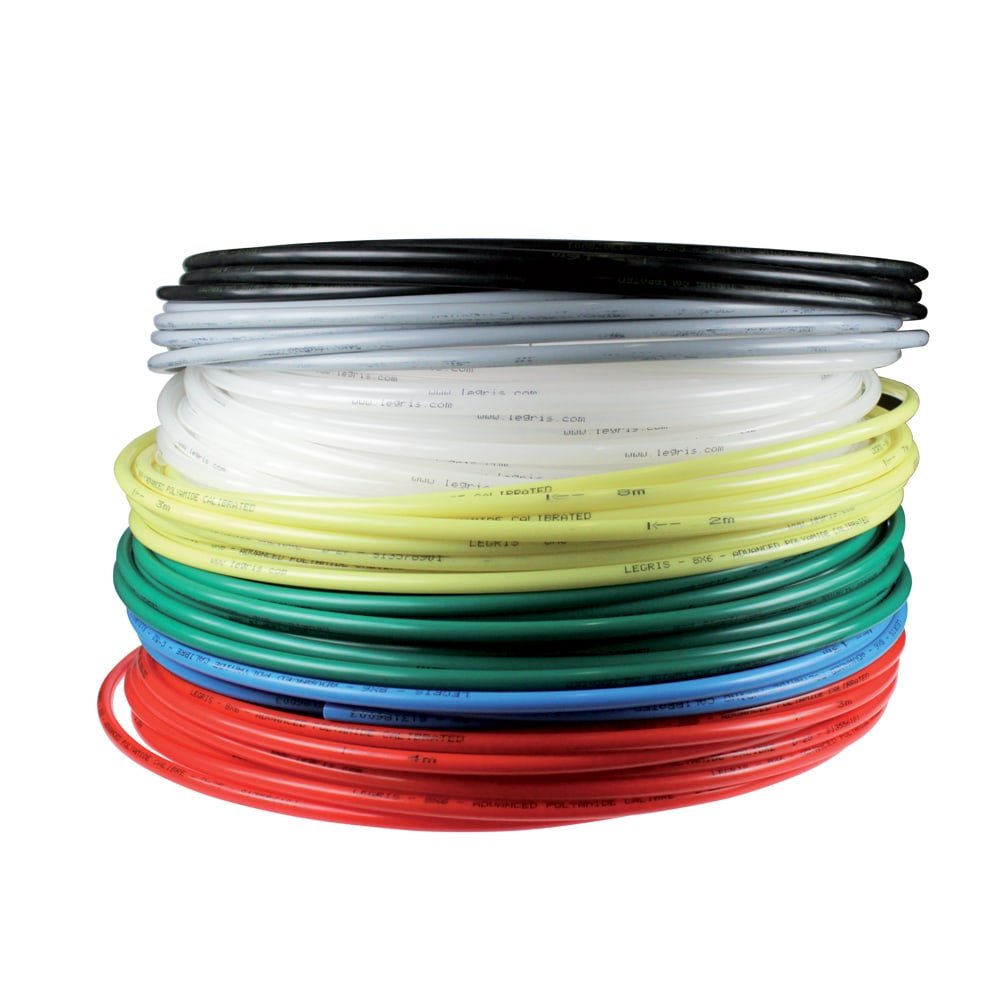

PA Tubing
Fluids
Compressed air, industrial fluids
Materials
Polyamide (semi-rigid & rigid), 7 colours
Pressure Rating
Up to 58 bar
Temperature Range
-40°C to +100°C
O.D. (Metric)
3 mm to 16 mm

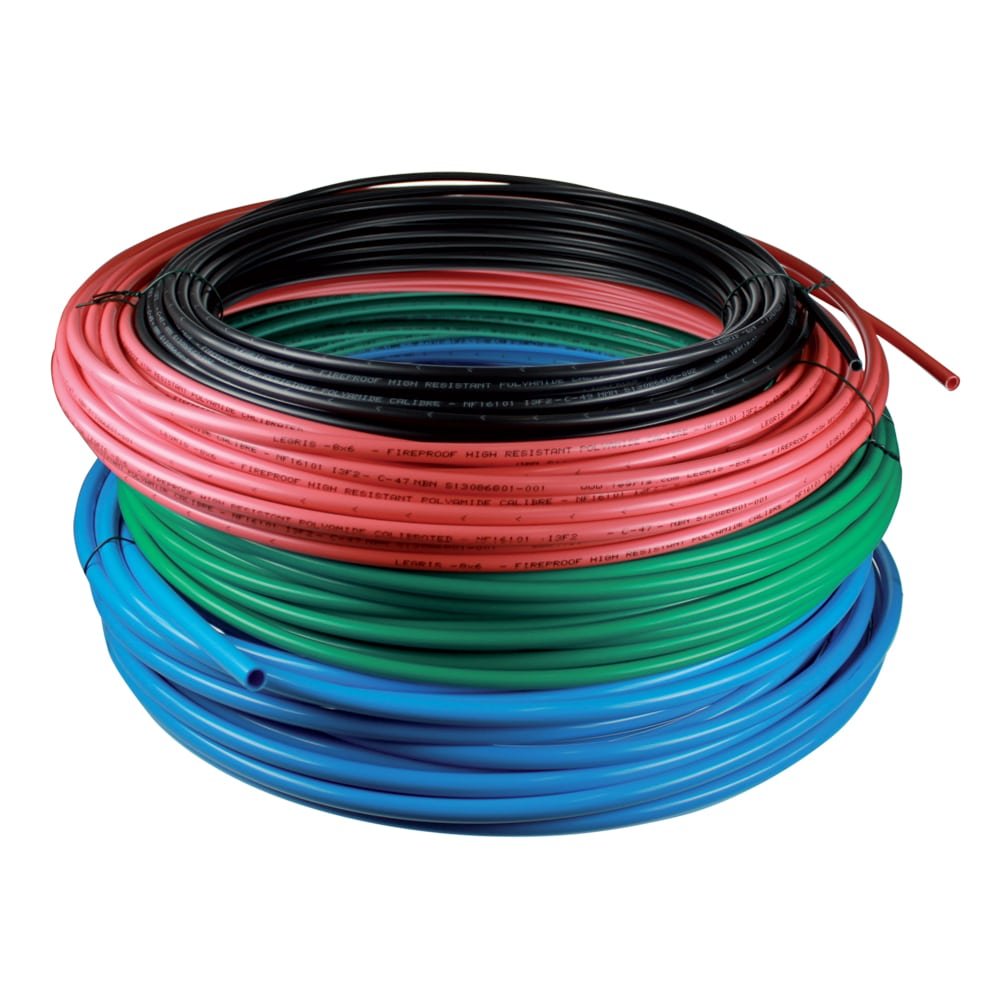

Fireproof High Resistance PA Tubing
Fluids
Compressed air, coolants, lubricants
Materials
Flame-retardant polyamide, 5 colours
Pressure Rating
Up to 50 bar
Temperature Range
-50°C to +100°C
O.D. (Metric)
4 mm to 12 mm

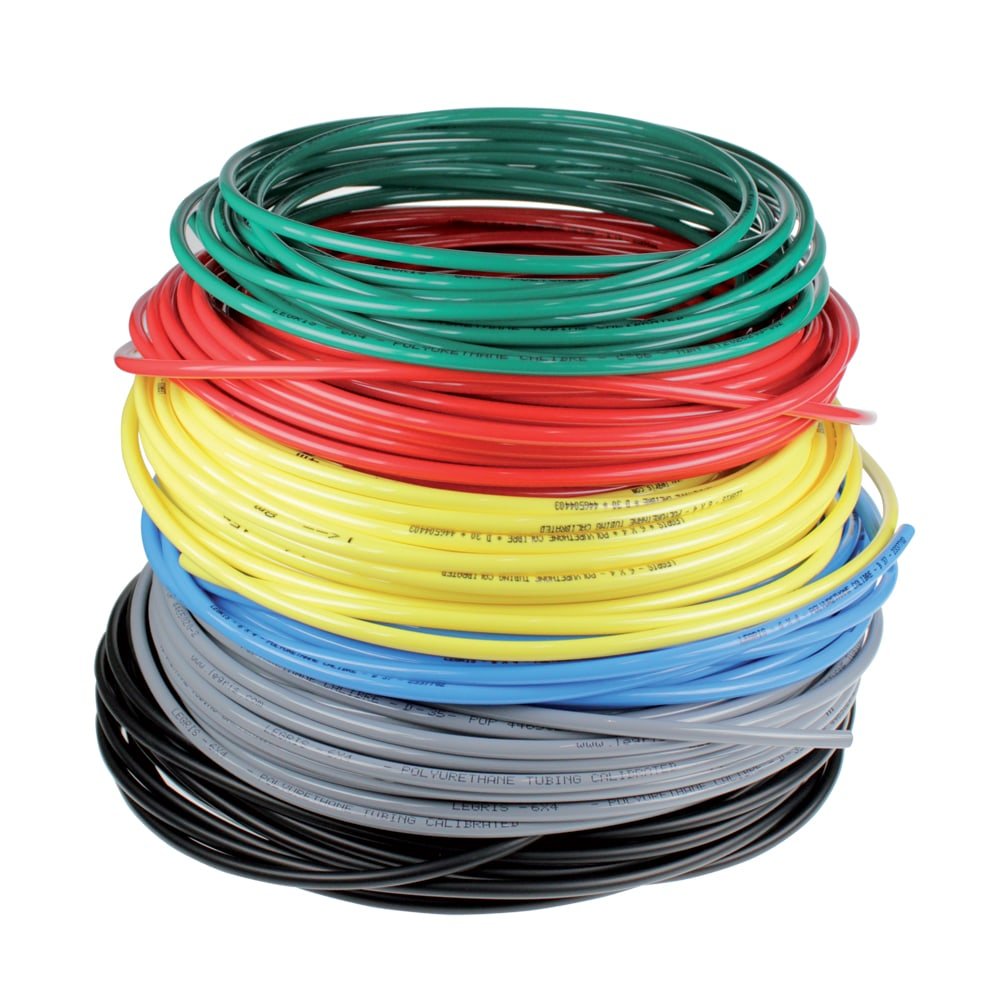

PU Tubing
Fluids
Compressed air, food industry fluids
Materials
Polyurethane (ester/ether), food-grade “crystal”, 7 colours
Pressure Rating
Up to 12 bar
Temperature Range
-20°C to +70°C
O.D. (Metric)
3 mm to 16 mm

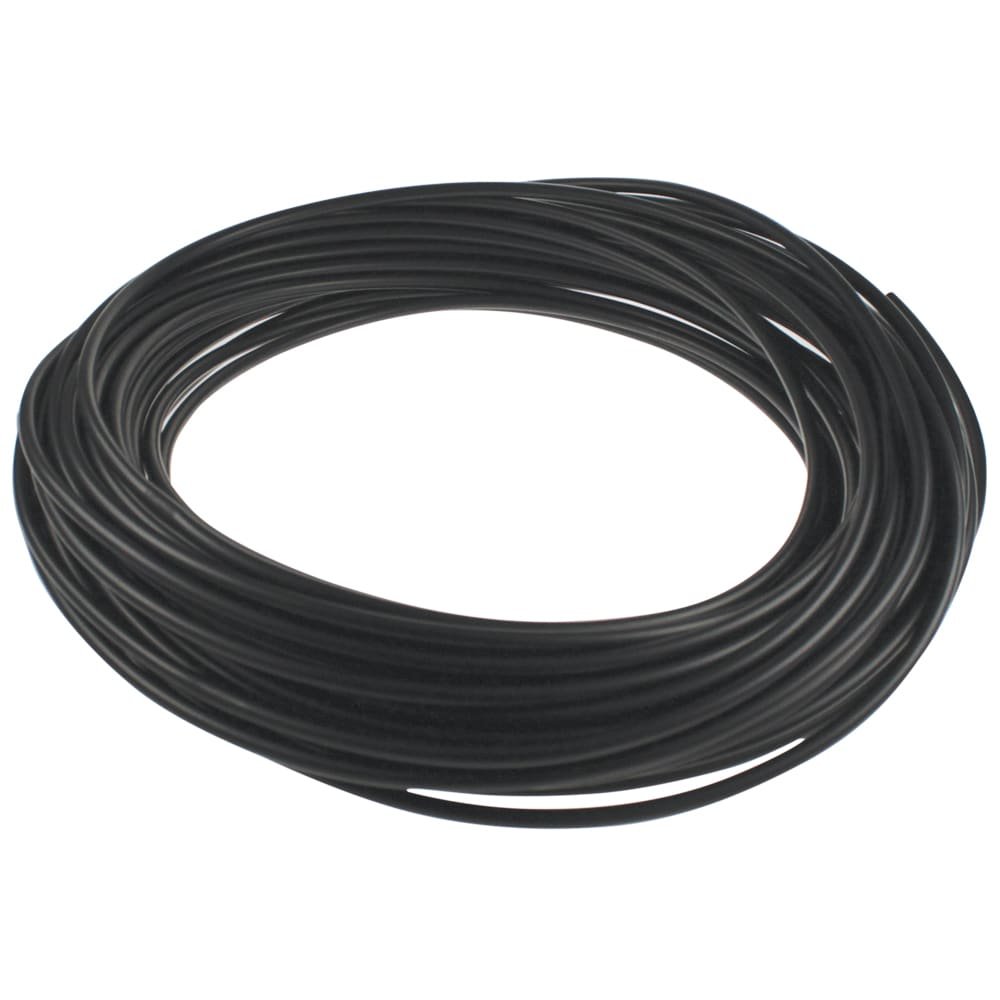

Antistatic PU Tubing
Fluids
Compressed air
Materials
Conductive polyurethane (black)
Pressure Rating
Up to 10 bar
Temperature Range
-20°C to +70°C
O.D. (Metric)
3 mm to 12 mm

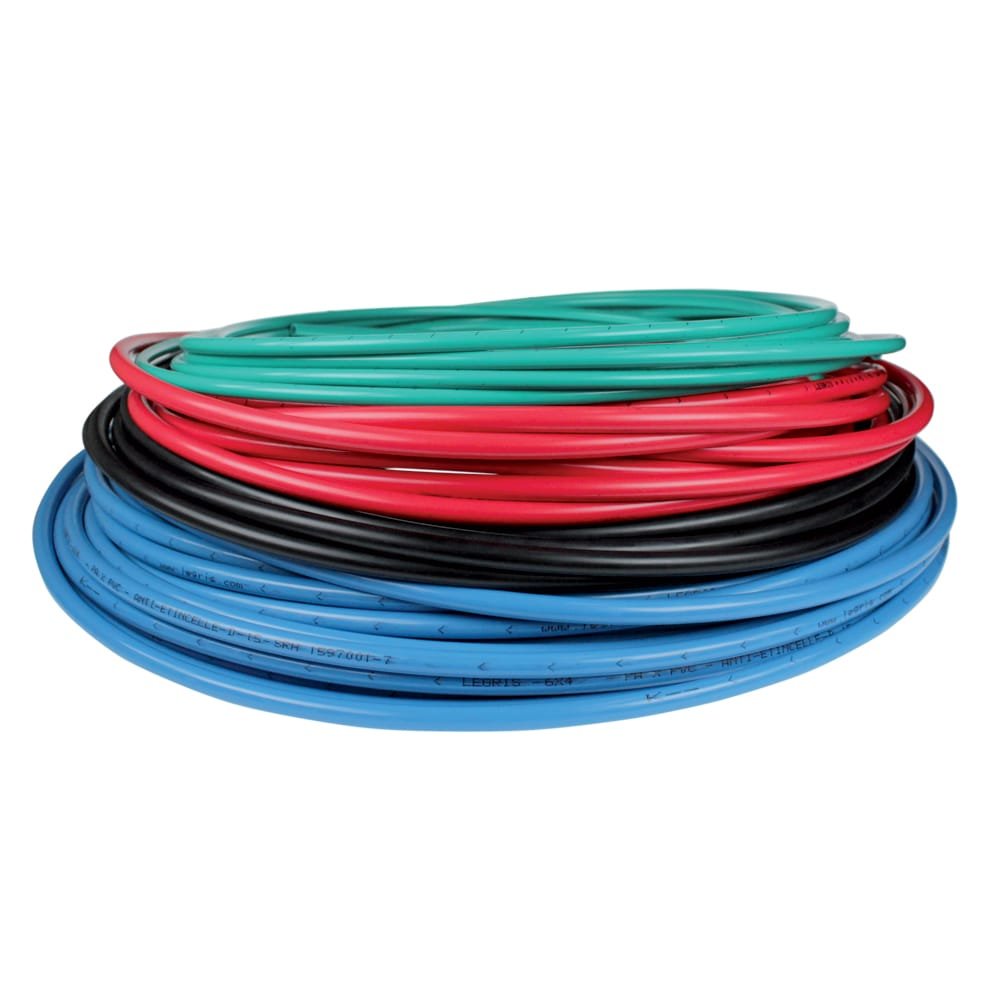

Anti-Spark PA/PU Tubing
Fluids
Compressed air, coolants, industrial fluids
Materials
Polyamide or polyurethane with PVC sheath
Pressure Rating
Up to 36 bar
Temperature Range
-20°C to +80°C
O.D. (Metric)
4 mm to 14 mm

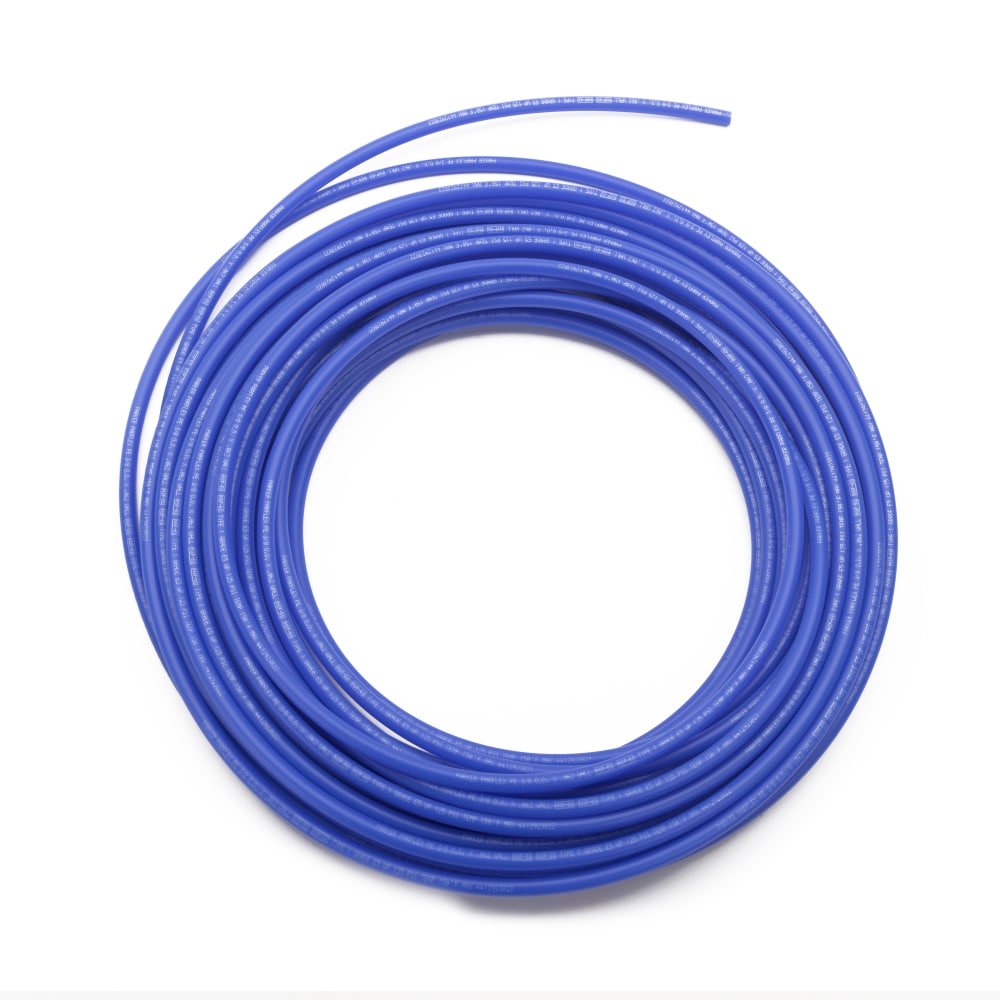

PE Tubing
Fluids
Multiple industrial fluids
Materials
Low-density & reticulated polyethylene (food-grade)
Pressure Rating
Up to 20 bar
Temperature Range
-40°C to +95°C
Size (Metric)
4 mm to 16 mm
Size (Inch)
1/8″ to 1/2″
FEP Tubing
Fluids
Many industrial fluids
Materials
Fluoropolymer (FEP), food-grade, transparent
Pressure Rating
Up to 28 bar
Temperature Range
-40°C to +150°C
O.D. (Metric)
4 mm to 12 mm

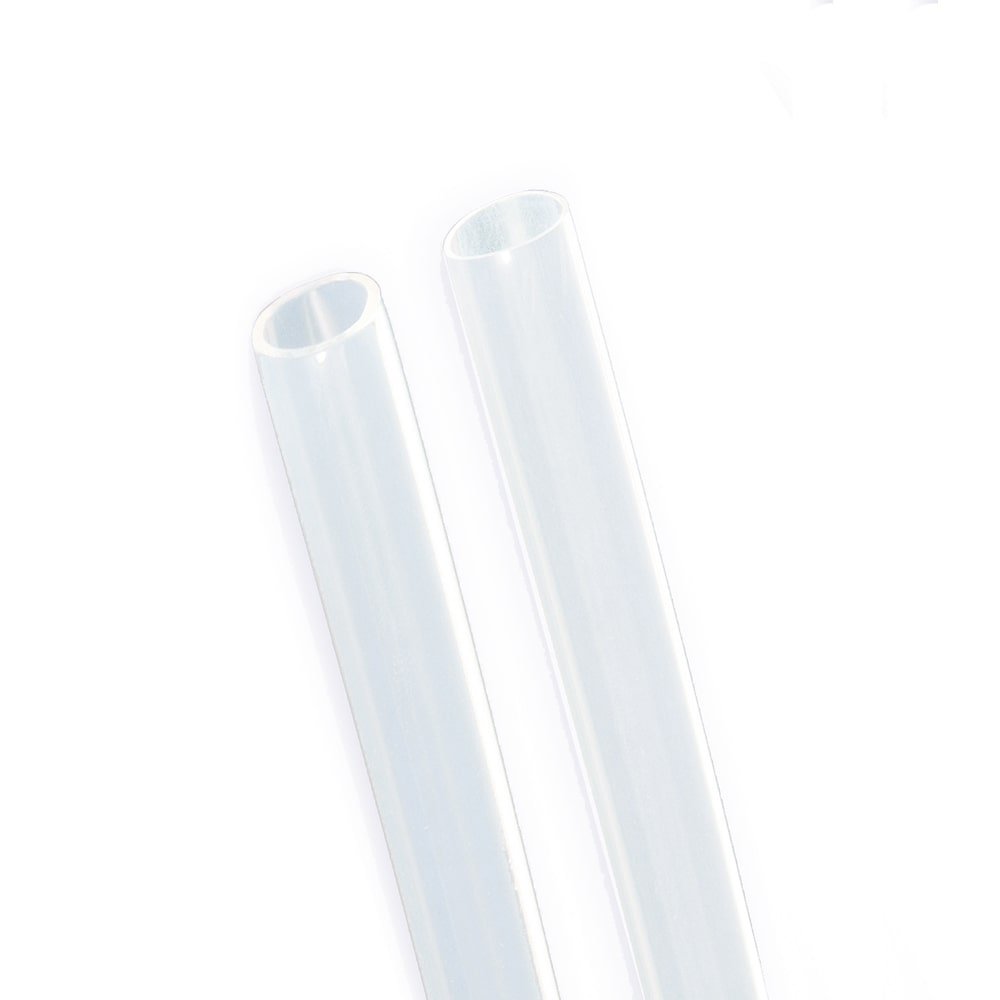

PFA Tubing
Fluids
High purity industrial fluids
Materials
Perfluoroalkoxy (food-grade, antistatic options)
Pressure Rating
Up to 36 bar
Temperature Range
-196°C to +260°C
O.D. (Metric)
4 mm to 12 mm

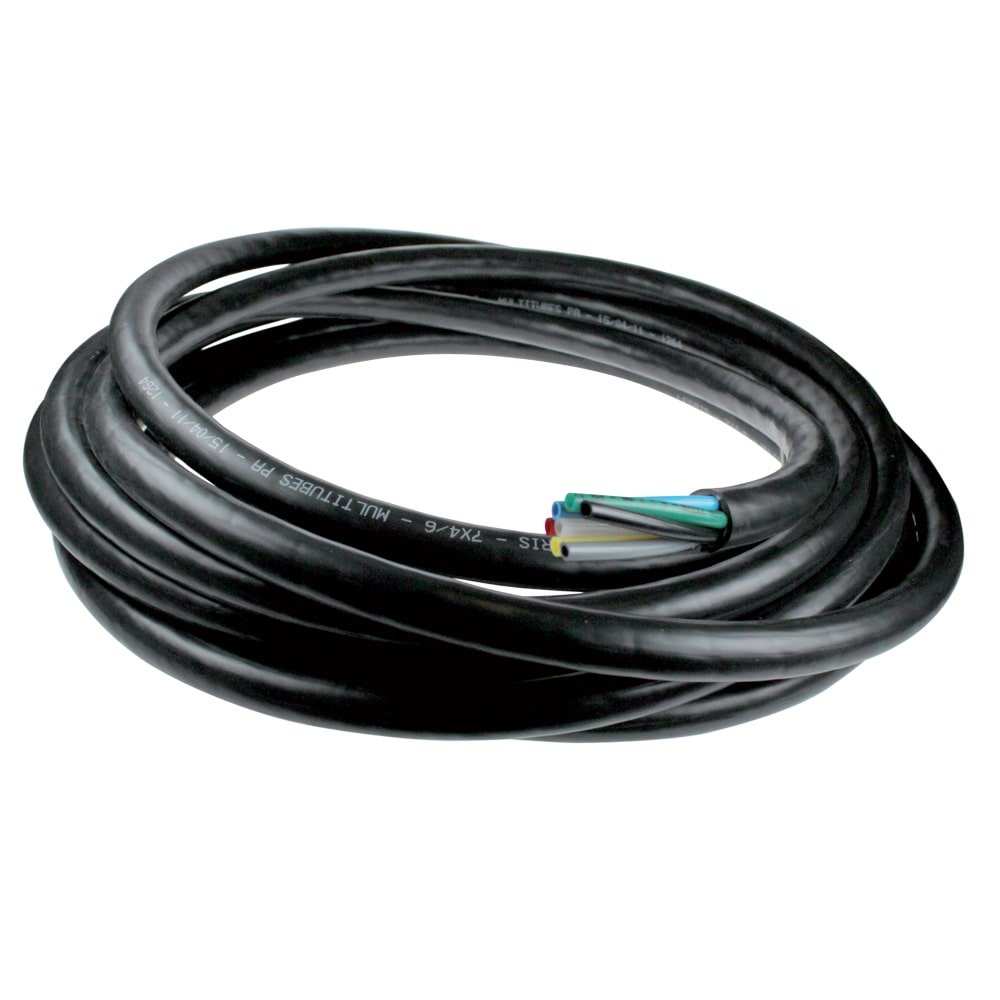

PA Multi-Tubing
Fluids
Compressed air, industrial fluids
Materials
Polyamide with PVC sheath, 6 colours
Pressure Rating
Up to 24 bar
Temperature Range
-40°C to +80°C
O.D. (Metric)
4 mm to 8 mm
Twin PU Tubing
Fluids
Compressed air
Materials
Polyurethane ester, 1–2 colours
Pressure Rating
Up to 14 bar
Temperature Range
-20°C to +70°C
O.D. (Metric)
4 mm to 8 mm

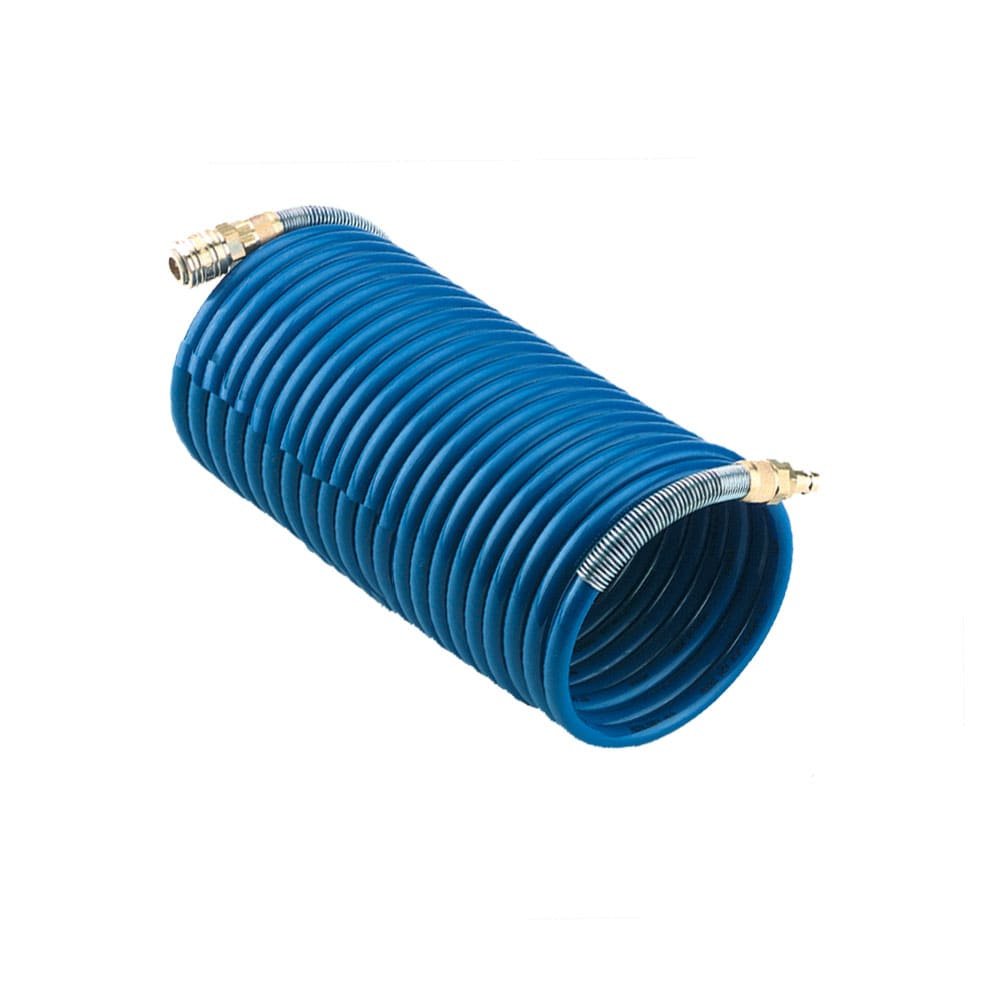

Recoil PA Tubing
Fluids
Compressed air, industrial fluids
Materials
Semi-rigid polyamide (with fittings)
Pressure Rating
Up to 20 bar
Temperature Range
-20°C to +80°C
O.D. (Metric)
6 mm to 8 mm

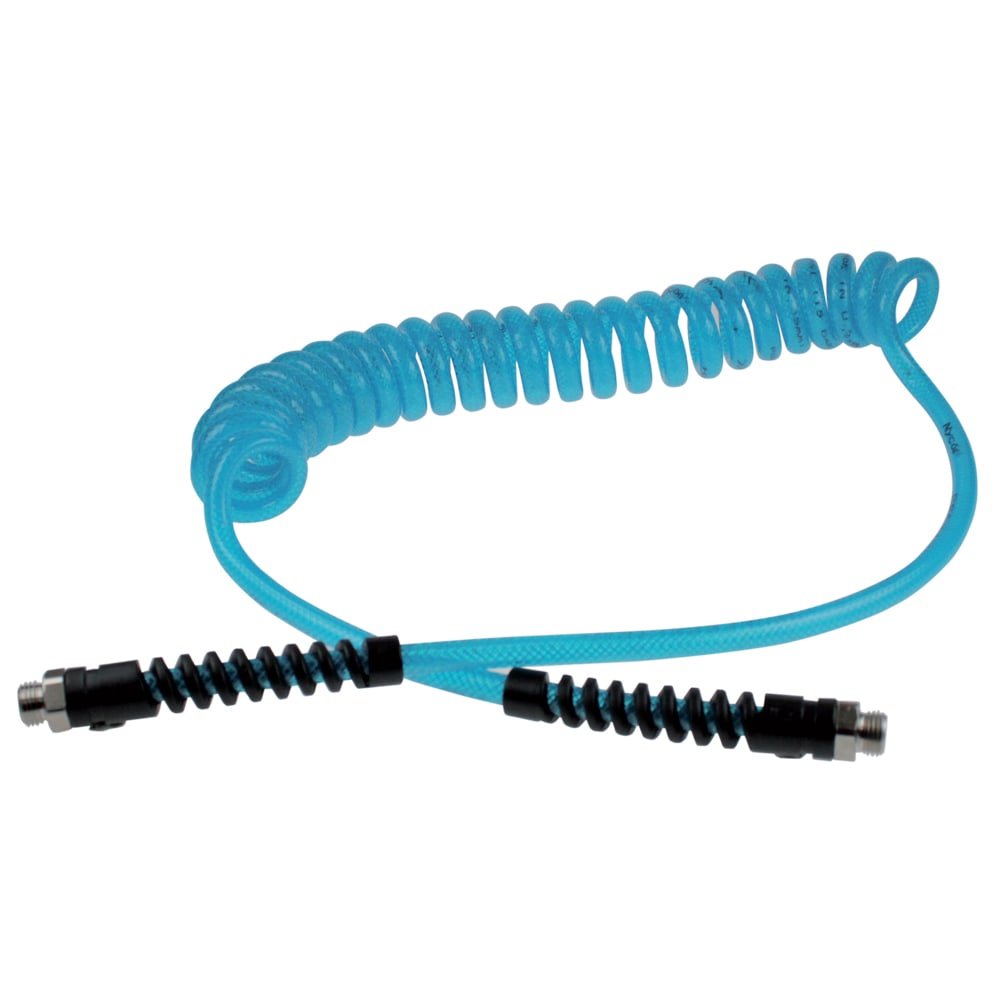

Recoil PU Tubing
Fluids
Compressed air
Materials
Polyurethane ester/ether
Pressure Rating
Up to 10 bar
Temperature Range
-20°C to +70°C
O.D. (Metric)
4 mm to 12 mm
I.D. (Inch)
3/8″ and 19/32″

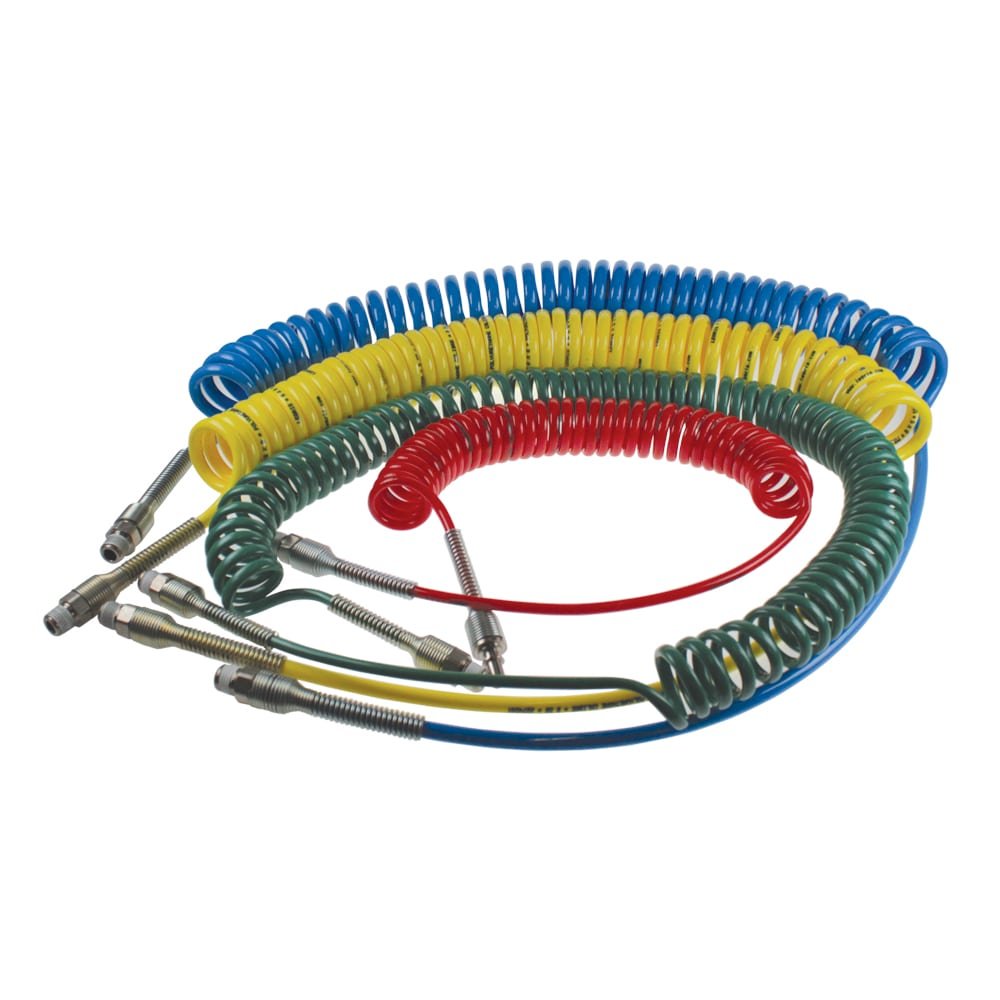

Braided PU Recoil Hose
Fluids
Compressed air, industrial fluids
Materials
Polyurethane with polyester braid
Pressure Rating
Up to 15 bar
Temperature Range
-40°C to +75°C
I.D. (Inch)
1/4″ and 5/16″

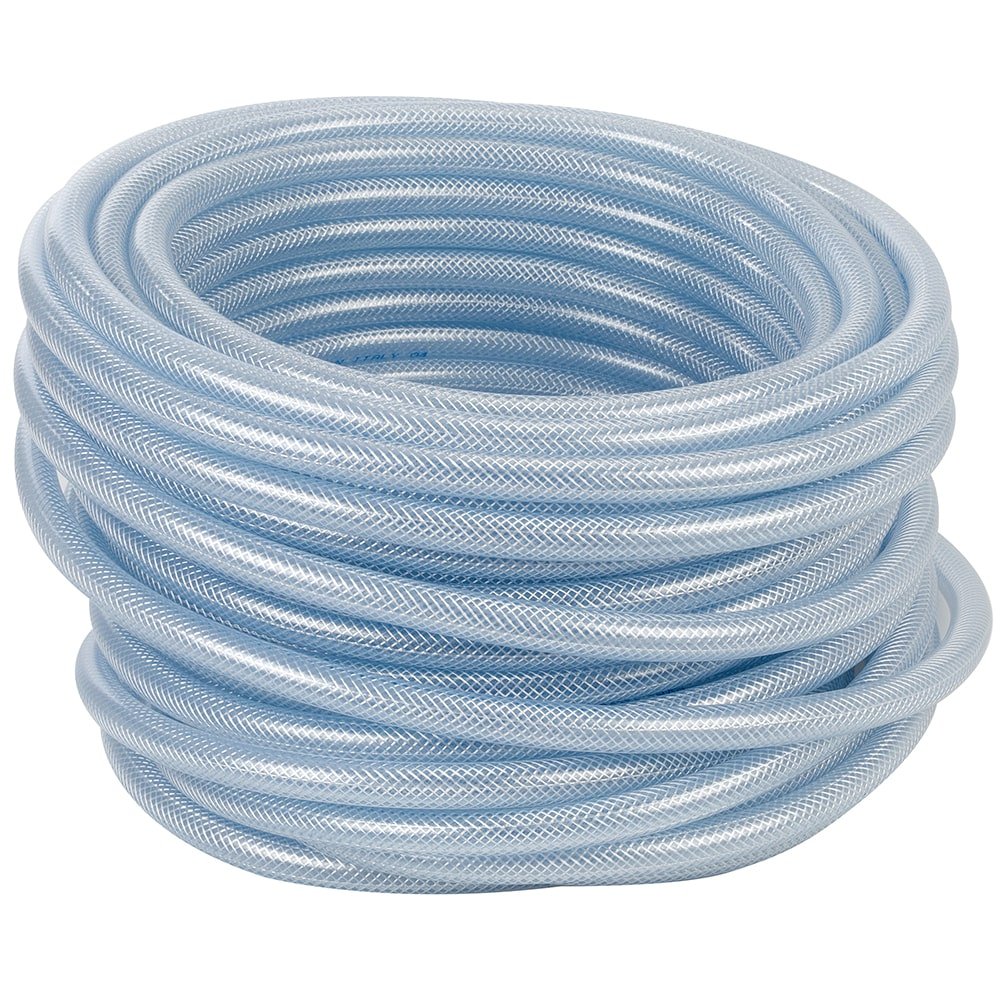

Braided PVC Hose
Fluids
Compressed air, non-corrosive fluids, food-grade applications
Materials
PVC with polyester braid (translucent/blue)
Pressure Rating
Up to 15 bar
Temperature Range
-25°C to +70°C
I.D. (Metric)
4 mm to 19 mm

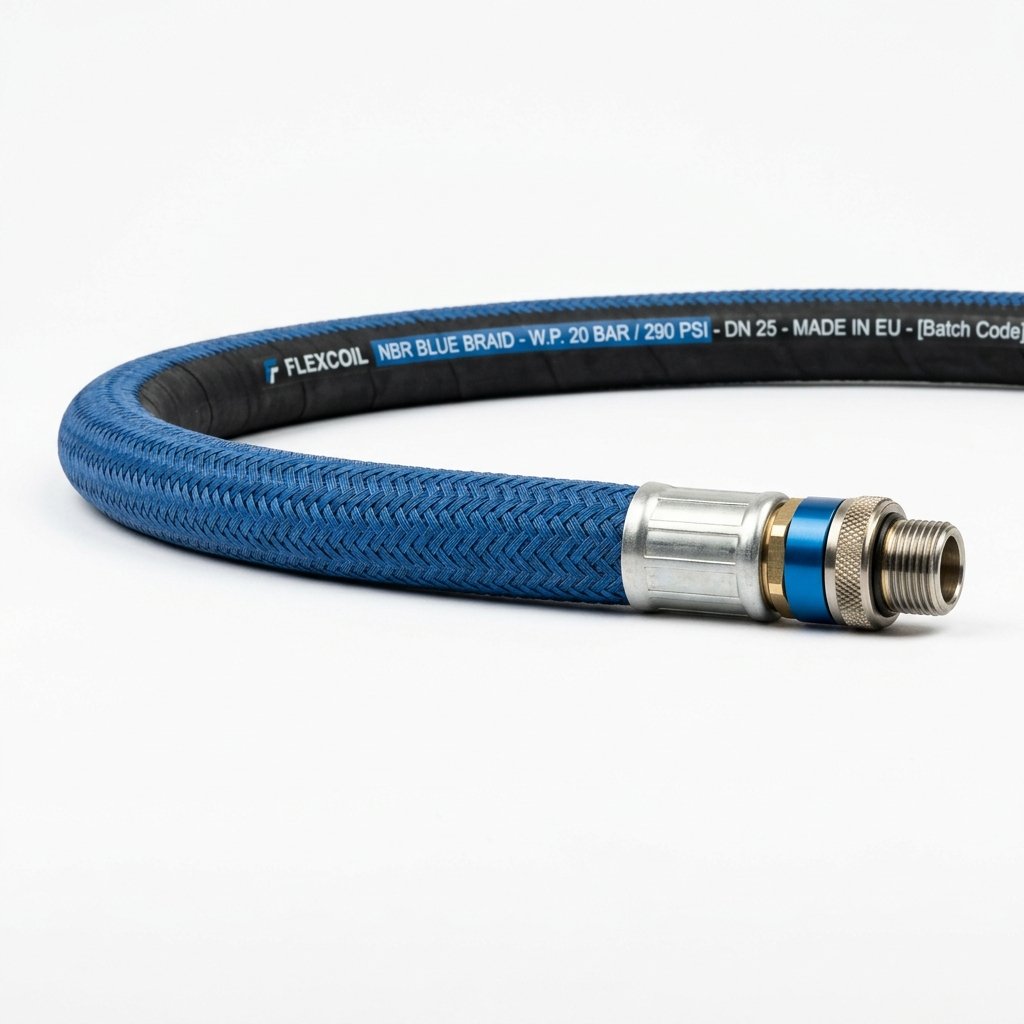

Self-Fastening NBR Hose
Durable NBR hose with polyamide braiding, designed for quick self-fastening connections.
Fluids
Compressed air, coolants
Materials
NBR with polyamide braid (4 colours)
Pressure Rating
Up to 16 bar
Temperature Range
-20°C to +100°C
I.D. (Inch)
1/4″ to 3/4″
Function Fittings & Valves
Precision-engineered components to control, regulate, and protect pneumatic systems.
Flow Control
Flow control regulators (speed control)
Non-Return
Non-return valves (one-way flow)
Pressure Control
Pressure regulators (pressure control)
Safety Valves
Soft start & safety valves

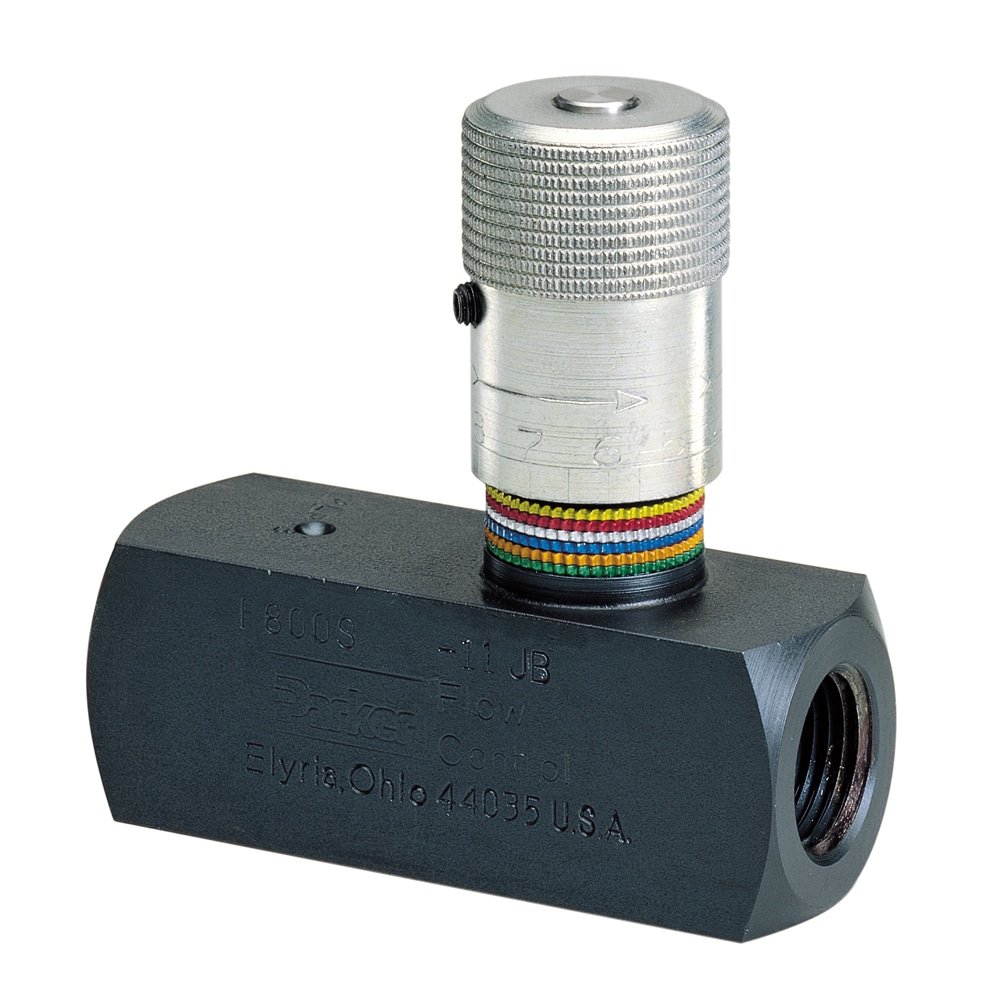

Flow Control Regulators
Function
Controls cylinder rod speed
Materials
Polymer, metal, stainless steel
Pressure Rating
Up to 10 bar
Temp Range
0°C to +70°C
Size (Metric)
3 mm to 18 mm

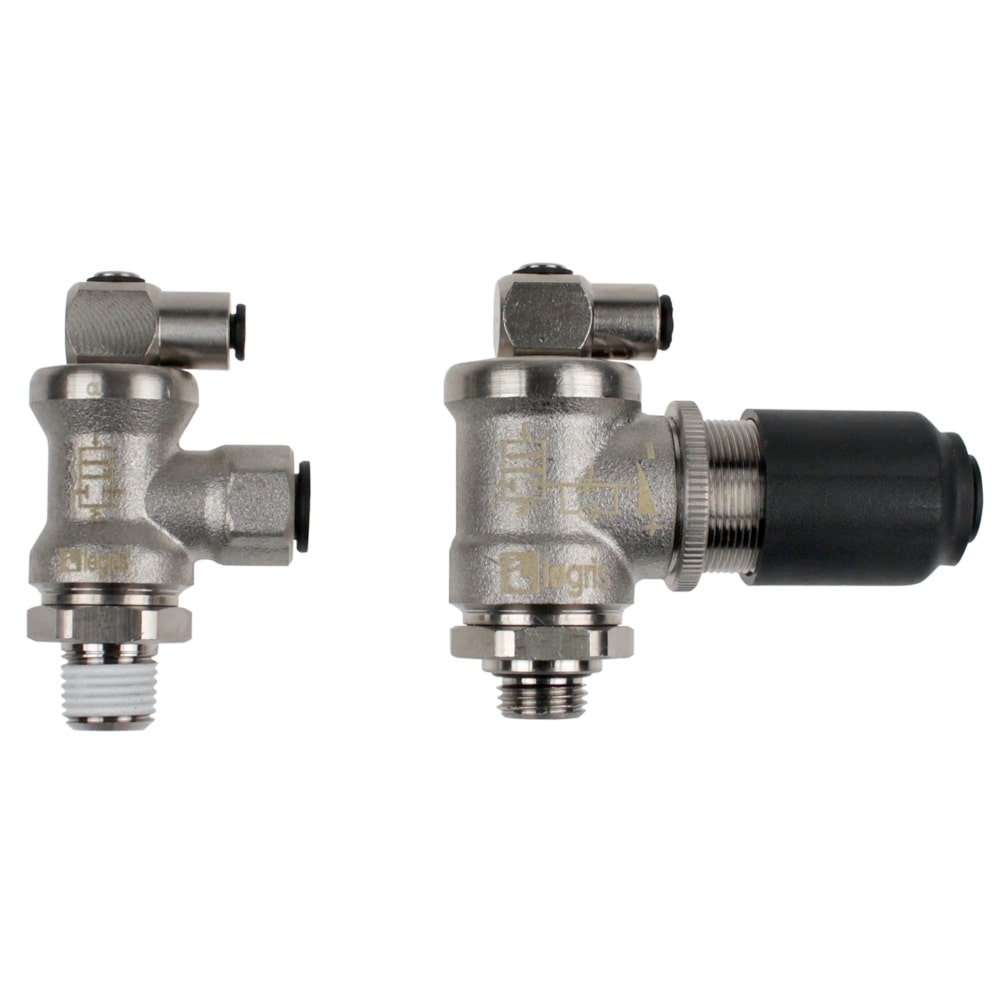

Blocking Fittings
Function
Locks cylinder piston for safety
Materials
Nickel-plated brass, polymer
Pressure Rating
Up to 10 bar
Temp Range
-20°C to +70°C
Size (Metric)
6 mm to 12 mm

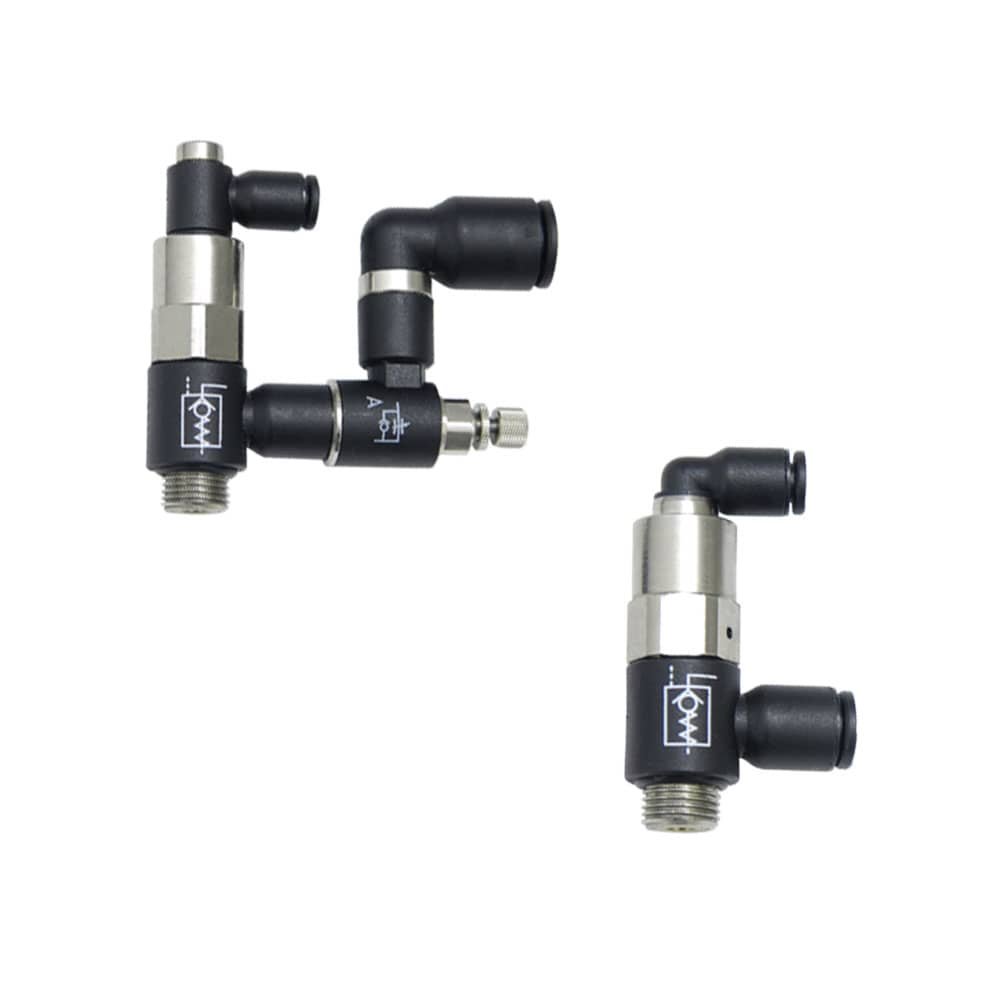

Piloted Non-Return Valves
Function
Safety locking of cylinder piston
Materials
Nickel-plated brass, polymer
Pressure Rating
Up to 10 bar
Temp Range
-5°C to +60°C
Size (Metric)
6 mm to 12 mm
Non-Return Valves
Function
Allows one-way air flow
Materials
Polymer, nickel-plated brass
Pressure Rating
Up to 10 bar
Temp Range
0°C to +70°C
Size (Metric)
4 mm to 12 mm

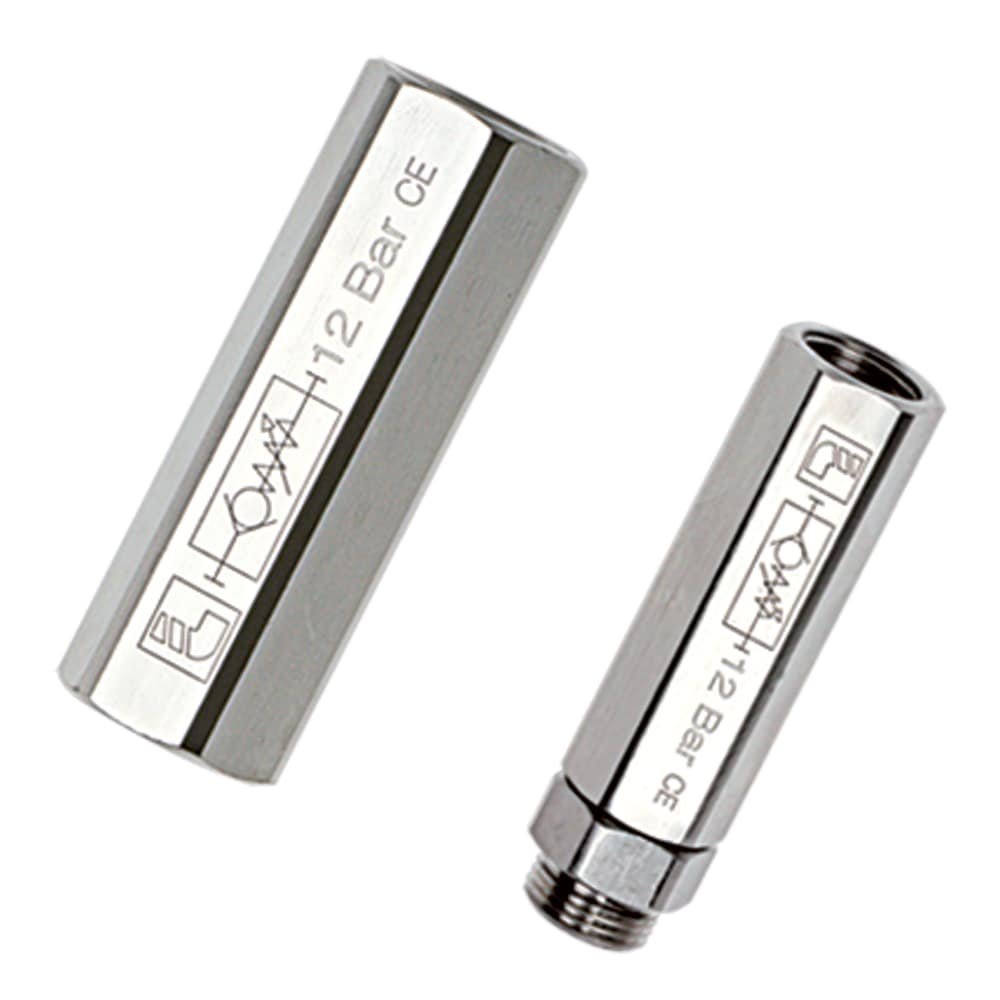

Adjustable Non-Return Valves
Function
One-way flow with adjustable opening pressure
Materials
FDA chemical nickel-plated brass
Pressure Rating
Up to 12 bar
Temp Range
-20°C to +80°C
Threads
BSPP, metric
Food-Grade Non-Return Valves
Function
One-way fluid control for food applications
Materials
Food-grade polymer
Pressure Rating
Up to 10 bar
Temp Range
0°C to +65°C
Size (Inch)
1/4″ and 3/8″

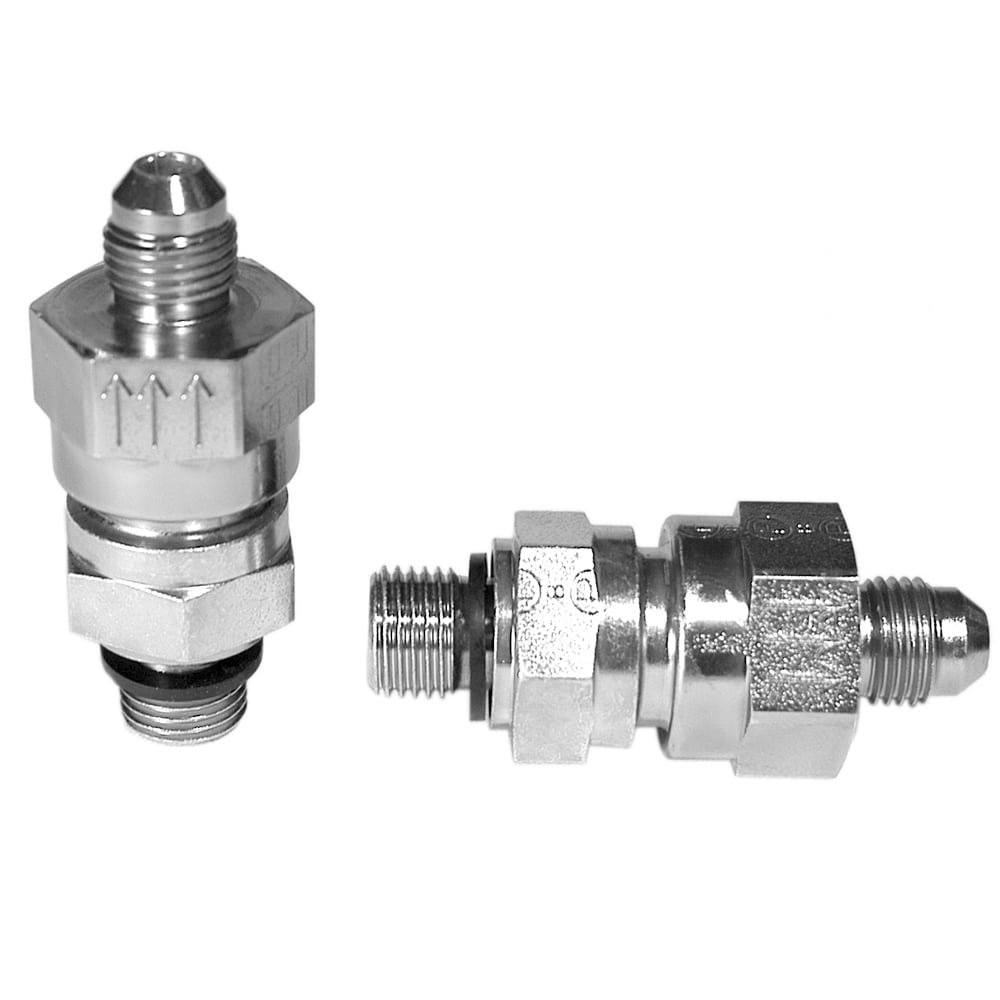

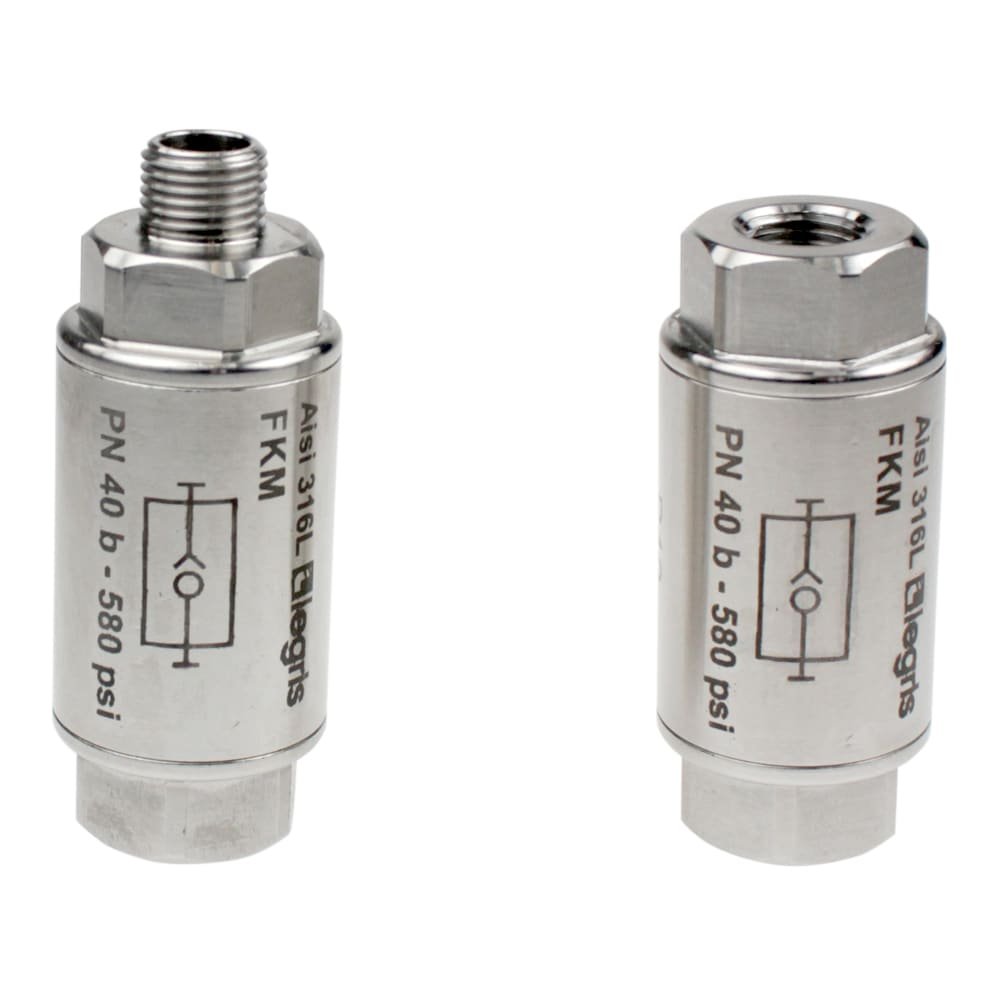

Stainless Steel Non-Return Valves
Function
One-way fluid control
Materials
Stainless steel
Pressure Rating
0.5 to 40 bar
Temp Range
-20°C to +180°C
Size (Metric)
10 mm to 25 mm

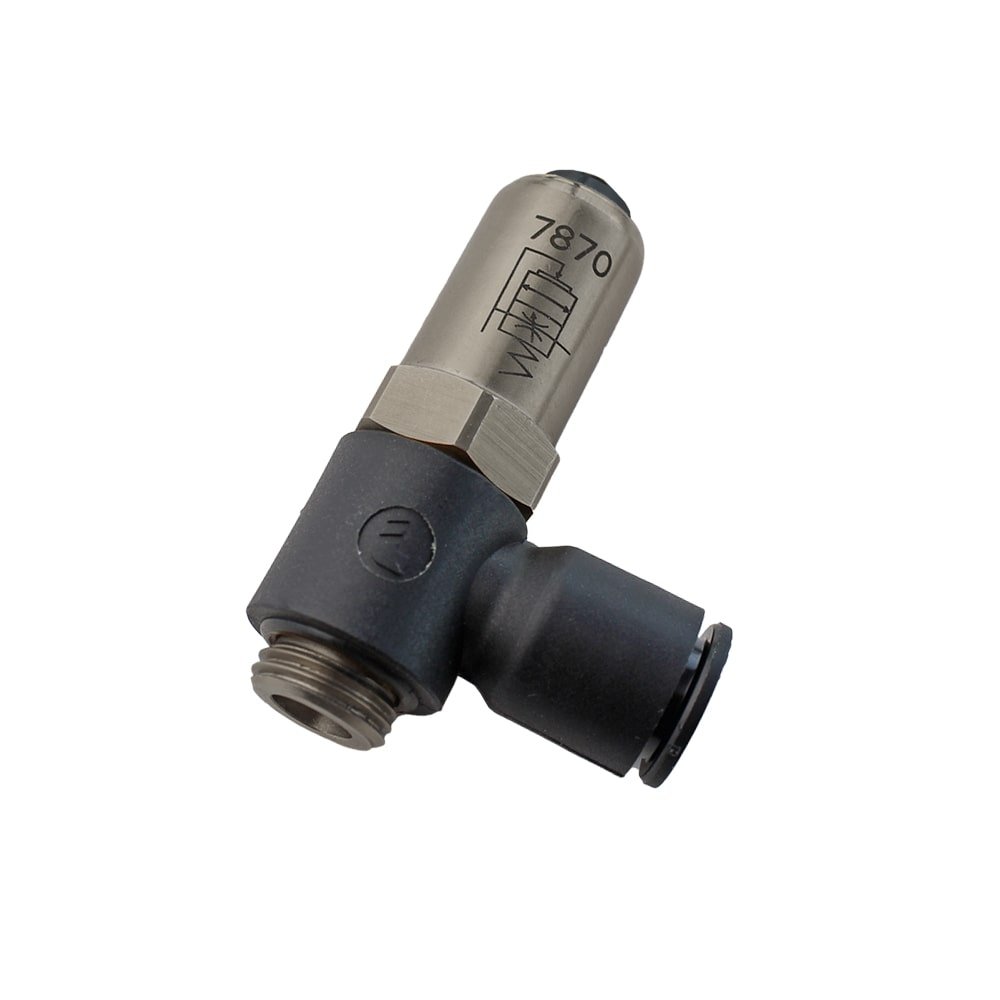

Soft Start Fittings
Function
Protects system during start-up
Materials
Polymer, nickel-plated brass
Pressure Rating
3 to 10 bar
Temp Range
-15°C to +60°C
Size (Metric)
8 mm to 12 mm

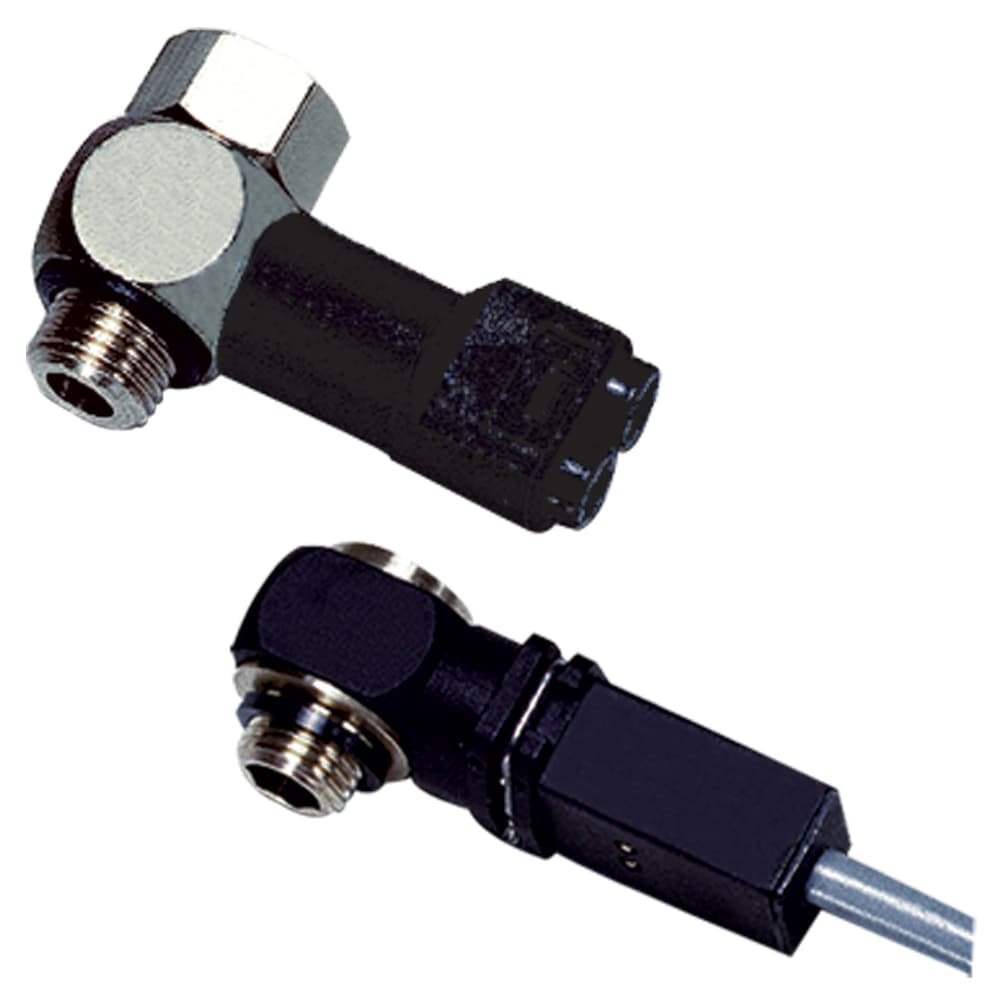

Pneumatic Sensor Fittings
Function
Detects cylinder rod end position
Materials
Polymer, treated metal
Pressure Rating
3 to 8 bar
Temp Range
-15°C to +60°C
Size (Metric)
4 mm

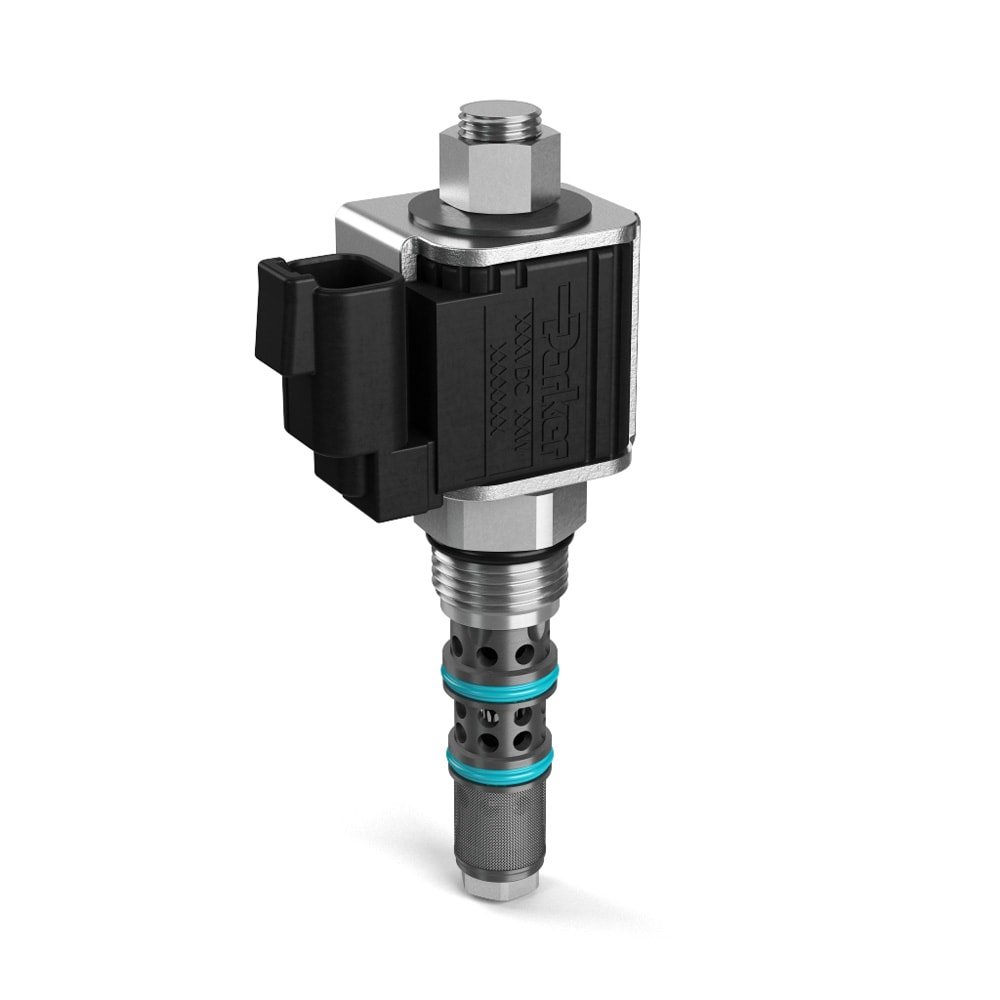

Pressure Regulators / Reducers
Function
Limits maximum system pressure
Materials
Polymer, treated metal
Pressure Rating
16 bar (up), 8 bar (down)
Temp Range
-15°C to +70°C
Size (Metric)
4 mm to 10 mm

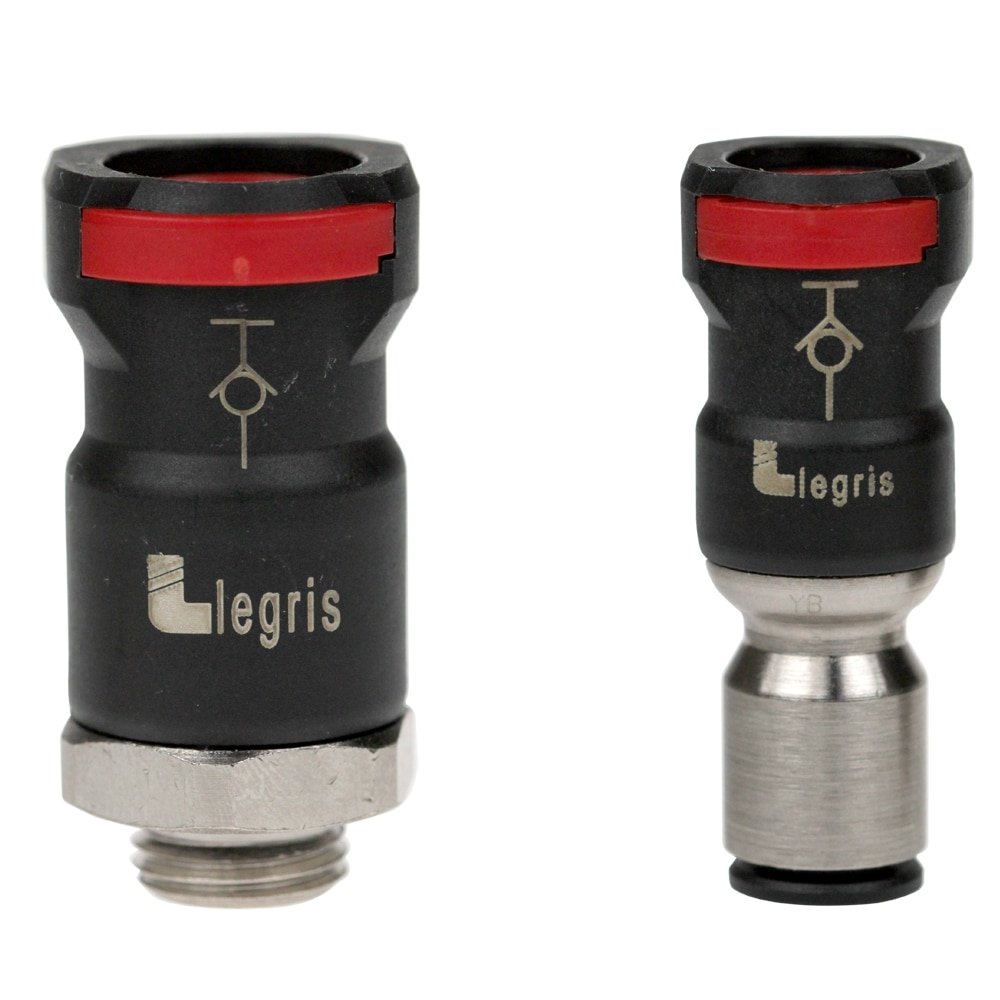

Snap Connectors
Function
Isolates circuit without venting
Materials
Polymer, nickel-plated brass
Pressure Rating
Up to 10 bar
Temp Range
-20°C to +80°C
Size (Metric)
5 mm to 7 mm

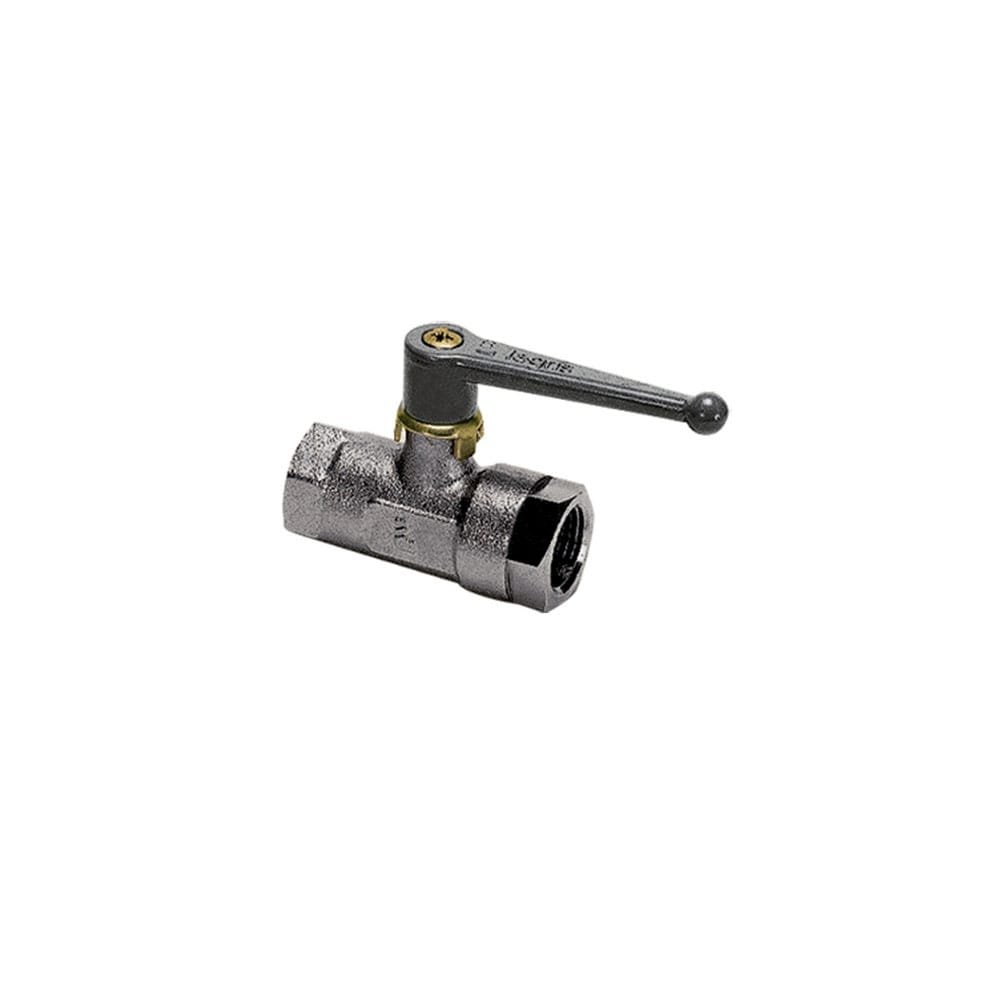

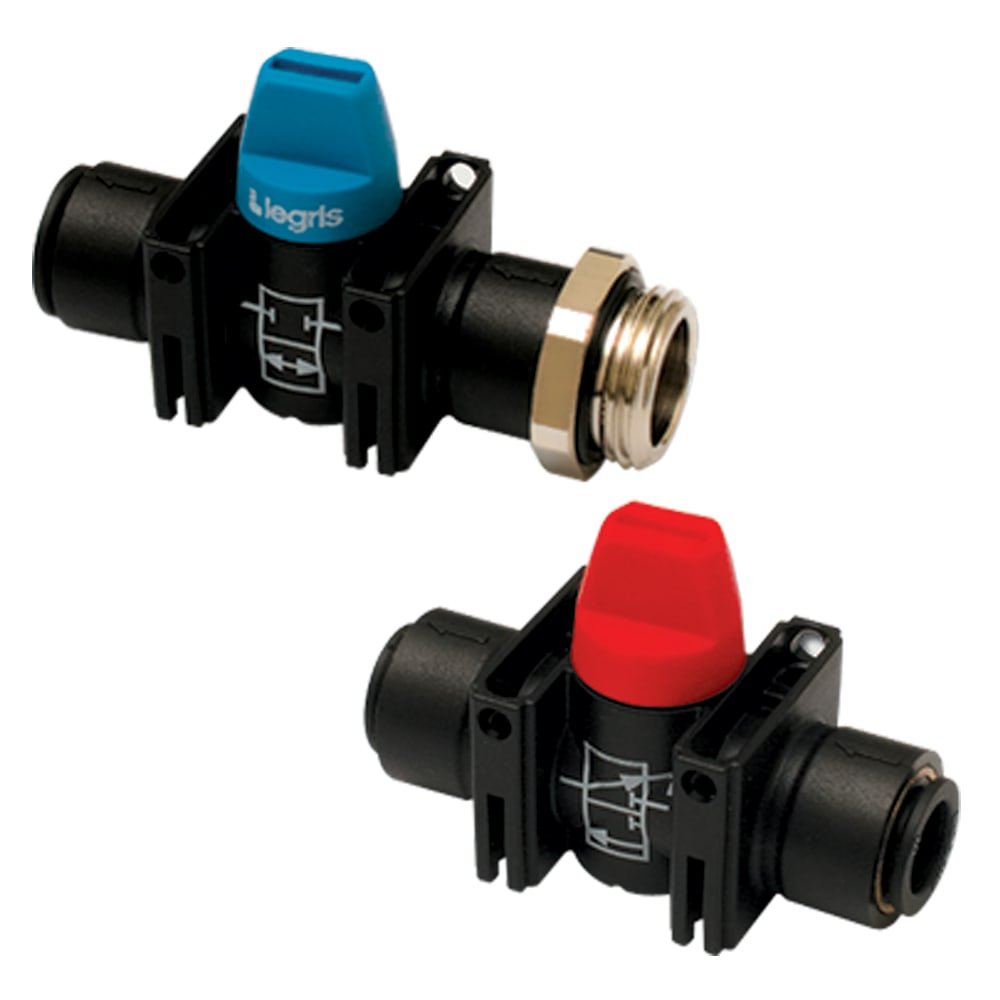

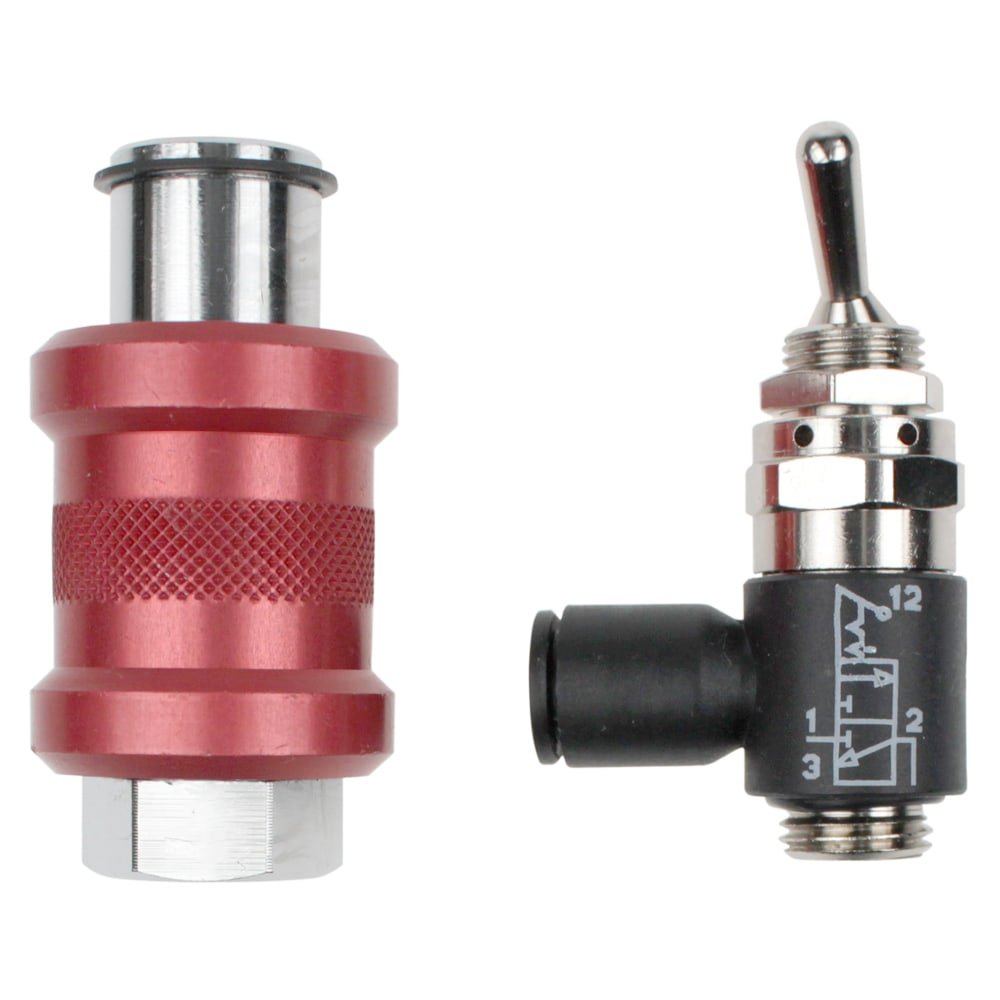

Manually-Operated Valves
Function
Opens/closes circuit
Materials
Polymer, nickel-plated brass, aluminium
Pressure Rating
10 to 16 bar
Temp Range
-10°C to +80°C
Size (Metric)
4 mm to 10 mm

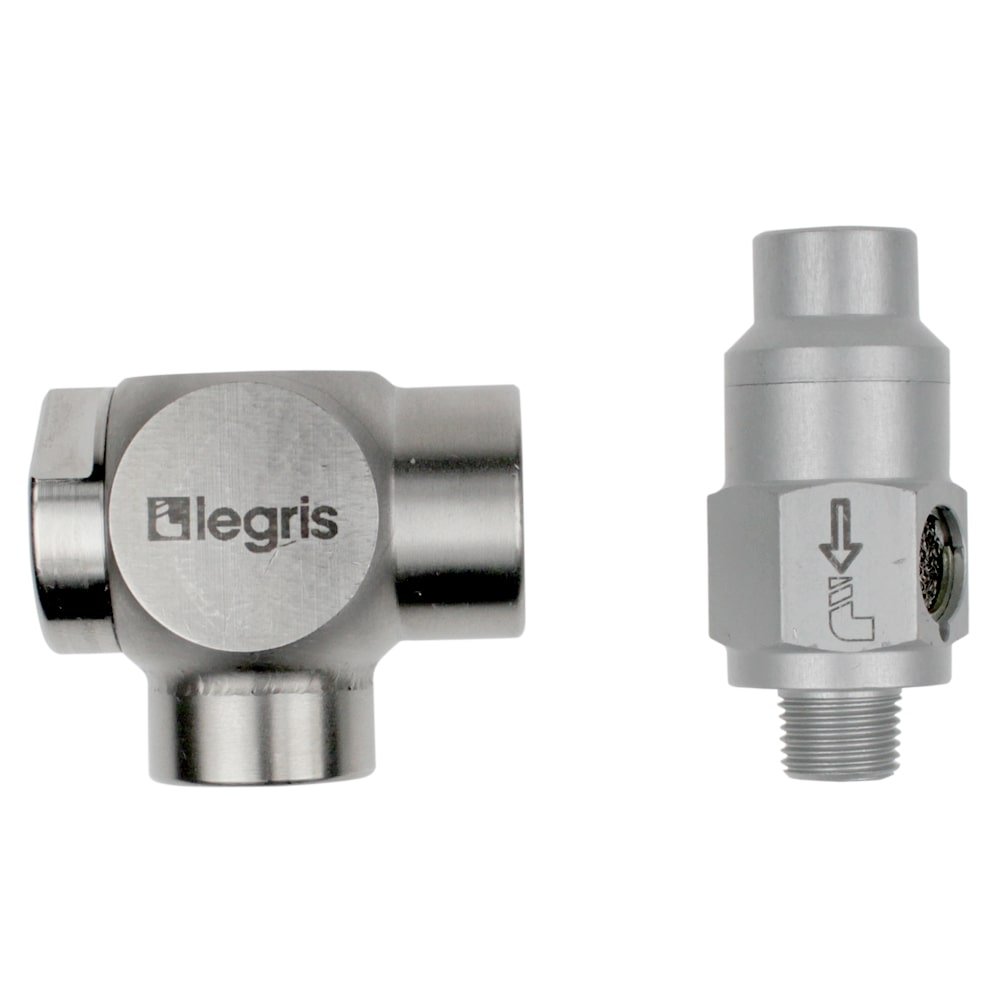

Metal Quick Exhaust Valves
Function
Increases cylinder return speed
Materials
Nickel-plated brass, aluminium, stainless steel
Pressure Rating
Up to 10 bar
Temp Range
-20°C to +70°C
Threads
BSPP, BSPT, metric

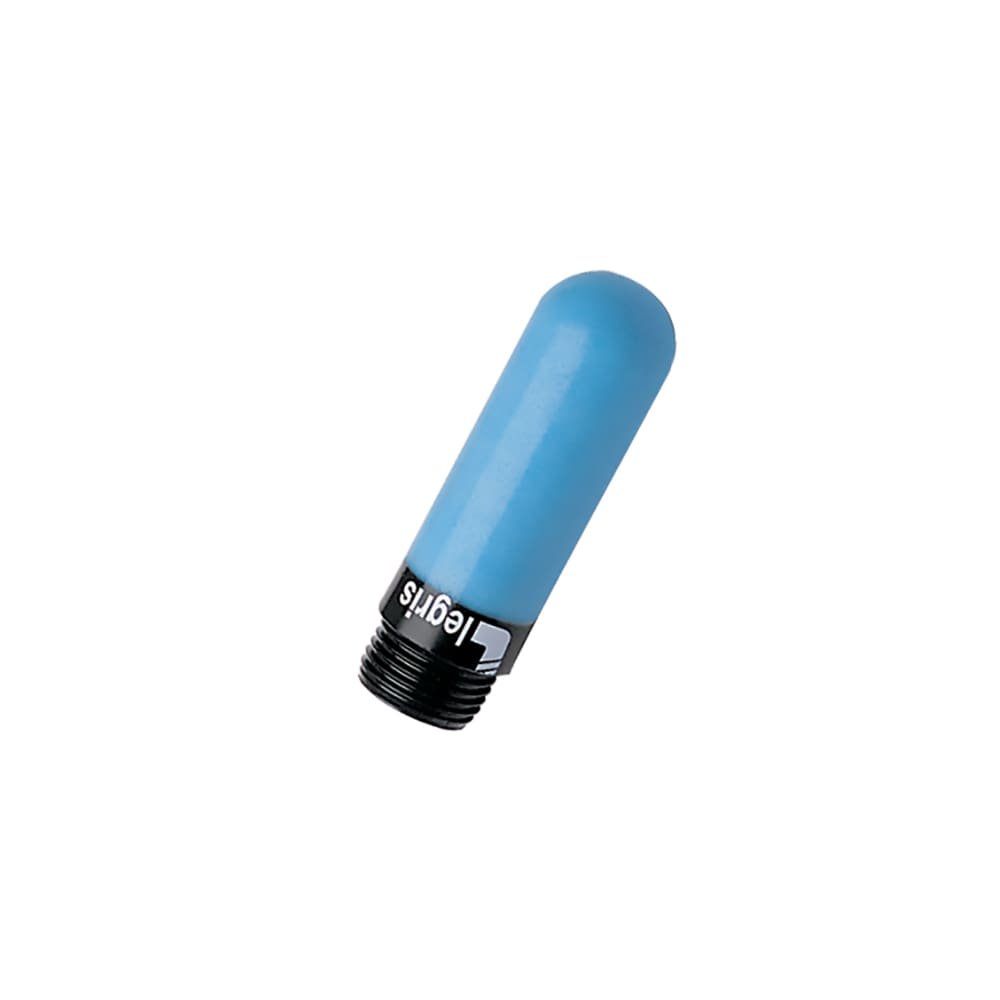

Silencers
Function
Reduces noise levels
Materials
Sintered bronze, polyethylene, stainless steel
Pressure Rating
Up to 12 bar
Temp Range
-20°C to +180°C
Threads
BSPP, metric, NPT
Compression Fittings
Reliable brass and stainless steel compression fittings for high-pressure applications, ensuring strong and leak-free connections.
High Pressure
Rated up to 550 bar performance
Strong Sealing
Ensures leak-free industrial connections
Multi-Material
Brass and 316L Stainless Steel options

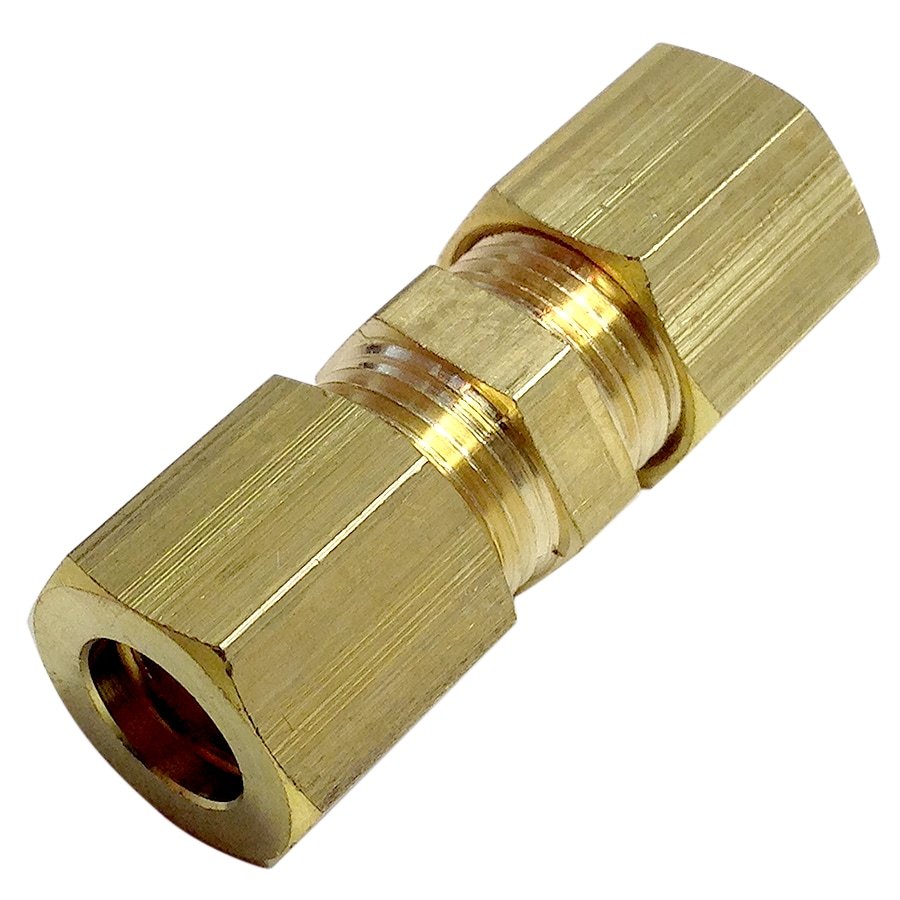

Brass Compression Fittings
Fluids
Compressed air, non-corrosive industrial fluids
Materials
Forged or machined brass
Pressure Rating
Up to 550 bar
Temperature Range
-40°C to +250°C
Size Range (Metric)
4 mm to 28 mm

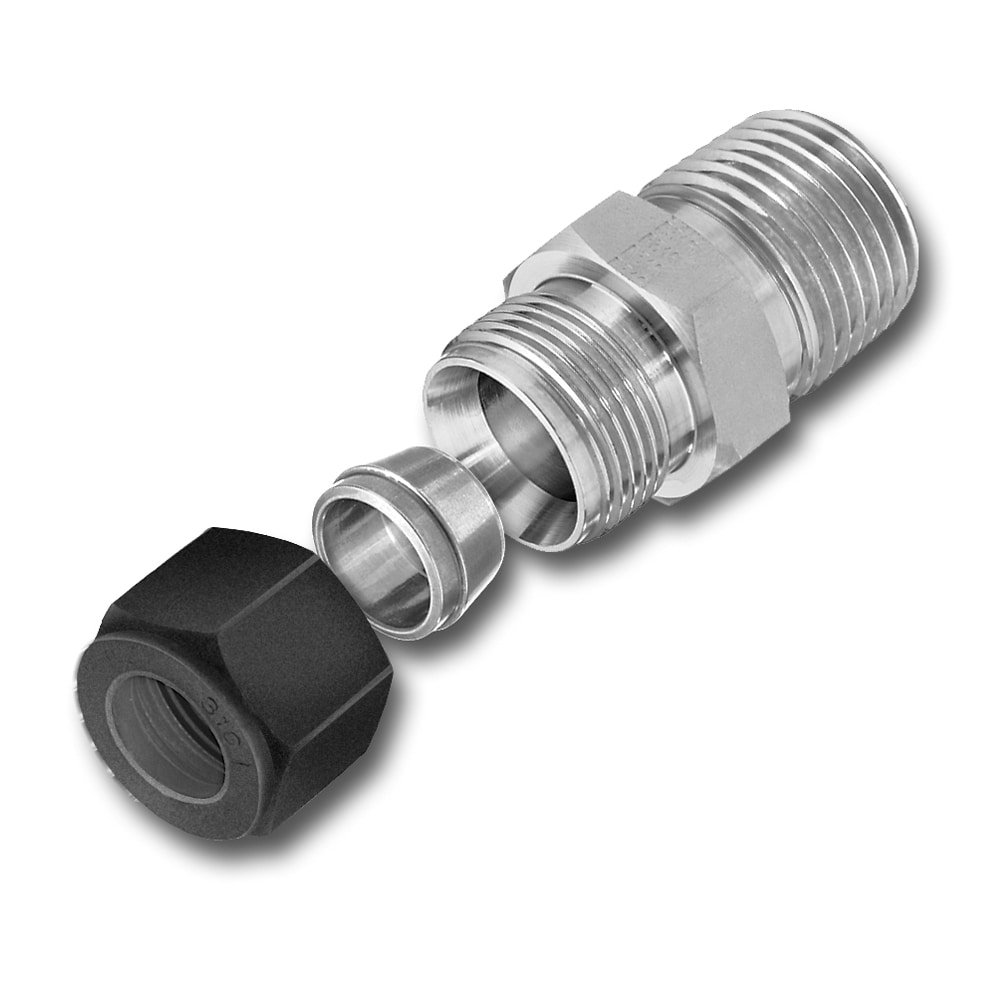

Stainless Steel Compression Fittings
Fluids
Compressed air, coolants, industrial & corrosive fluids
Materials
316L stainless steel
Pressure Rating
Up to 400 bar
Temperature Range
-40°C to +250°C
Size Range (Metric)
6 mm to 16 mm

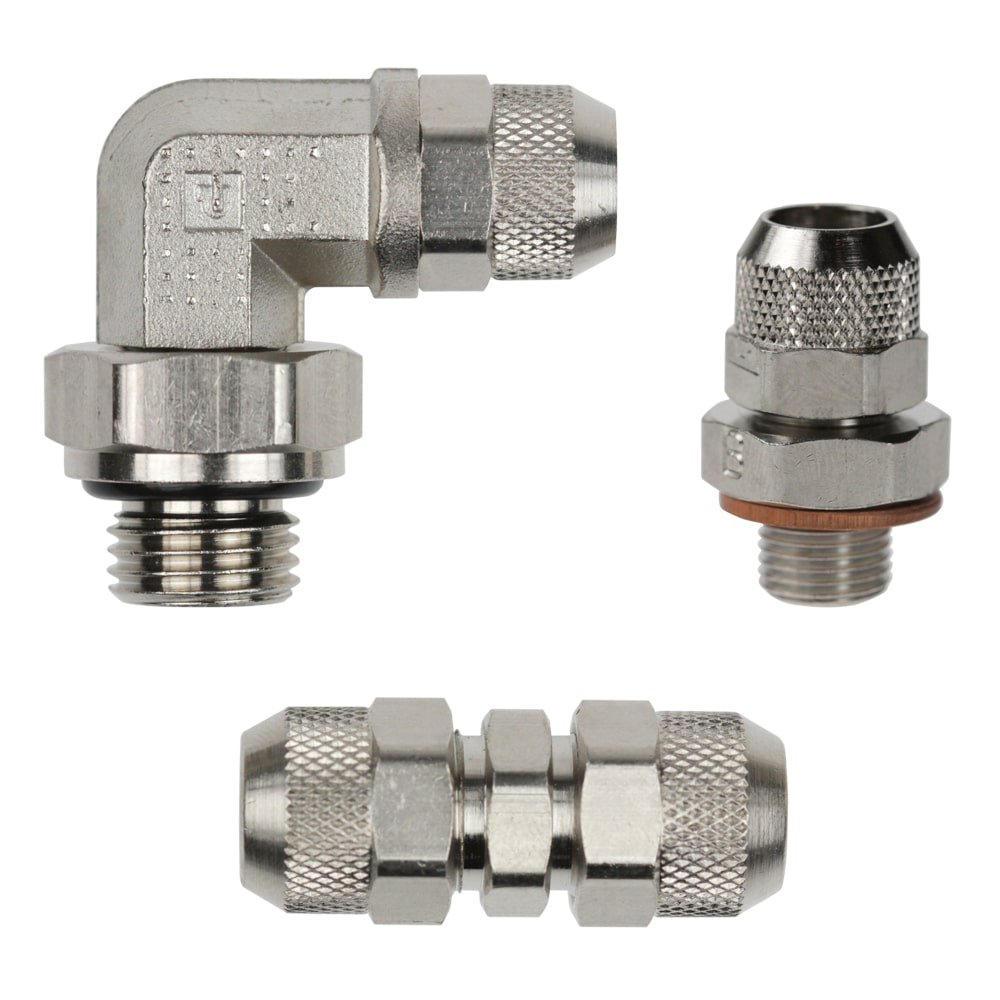

PL Nickel-Plated Brass Spigot Fittings
Versatile spigot fittings made from nickel-plated brass, providing an excellent balance of corrosion resistance and mechanical strength.
Fluids
Compressed air, compatible industrial fluids
Materials
Forged or machined nickel-plated brass
Pressure Rating
Up to 40 bar
Temperature Range
-40°C to +100°C
Size Range (Metric)
4 mm to 14 mm
Industrial Valves
Durable ball valves, needle valves, and butterfly valves designed for efficient flow control across industrial applications.
Ball Valves
Universal & Specialised series
Needle Valves
Precision flow regulation
Butterfly
High-flow abrasive control
Axial Valves
In-line pneumatic operation

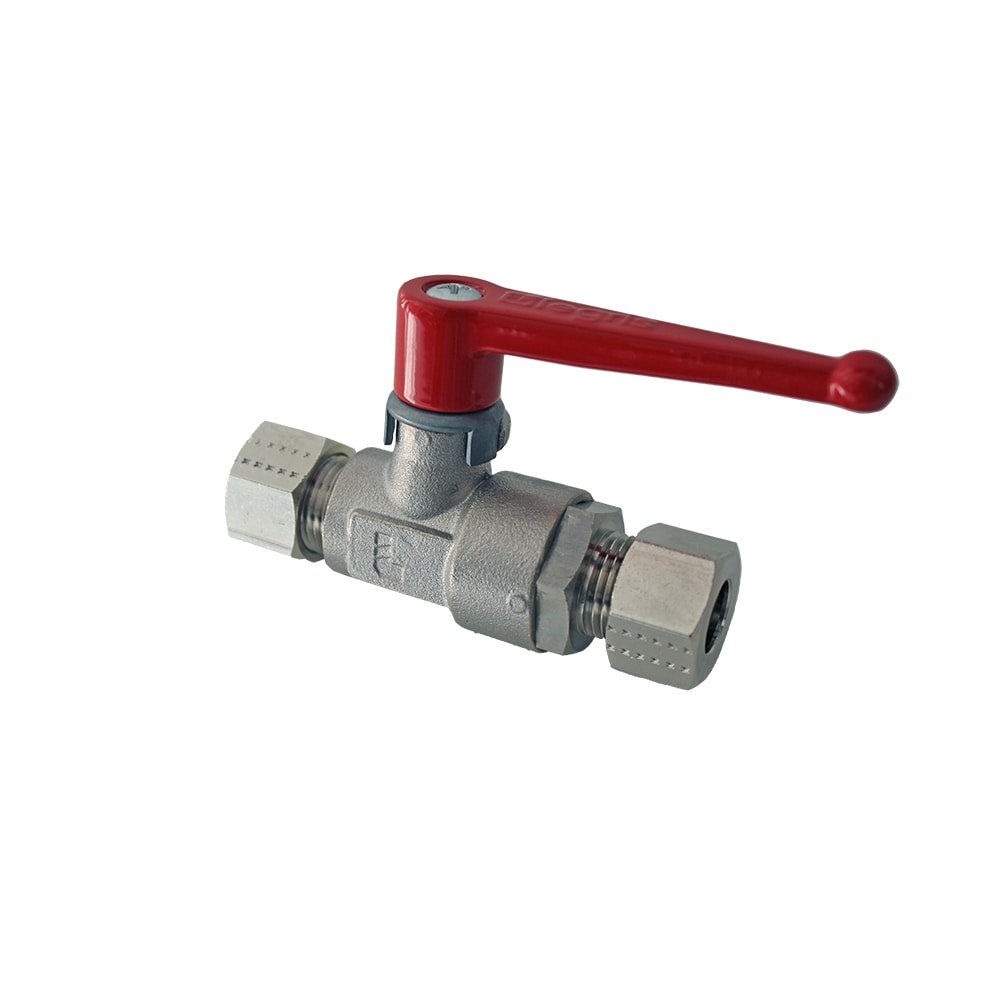

Ball Valves – Universal Series
Fluids
Compressed air, slightly corrosive fluids
Materials
Nickel-plated forged brass
Pressure Rating
Up to 40 bar
Temperature Range
-20°C to +80°C
Ball Valves – Universal Series (Vented)
Fluids
Compressed air, slightly corrosive fluids
Materials
Nickel-plated forged brass
Pressure Rating
Up to 40 bar
Temperature Range
-20°C to +80°C

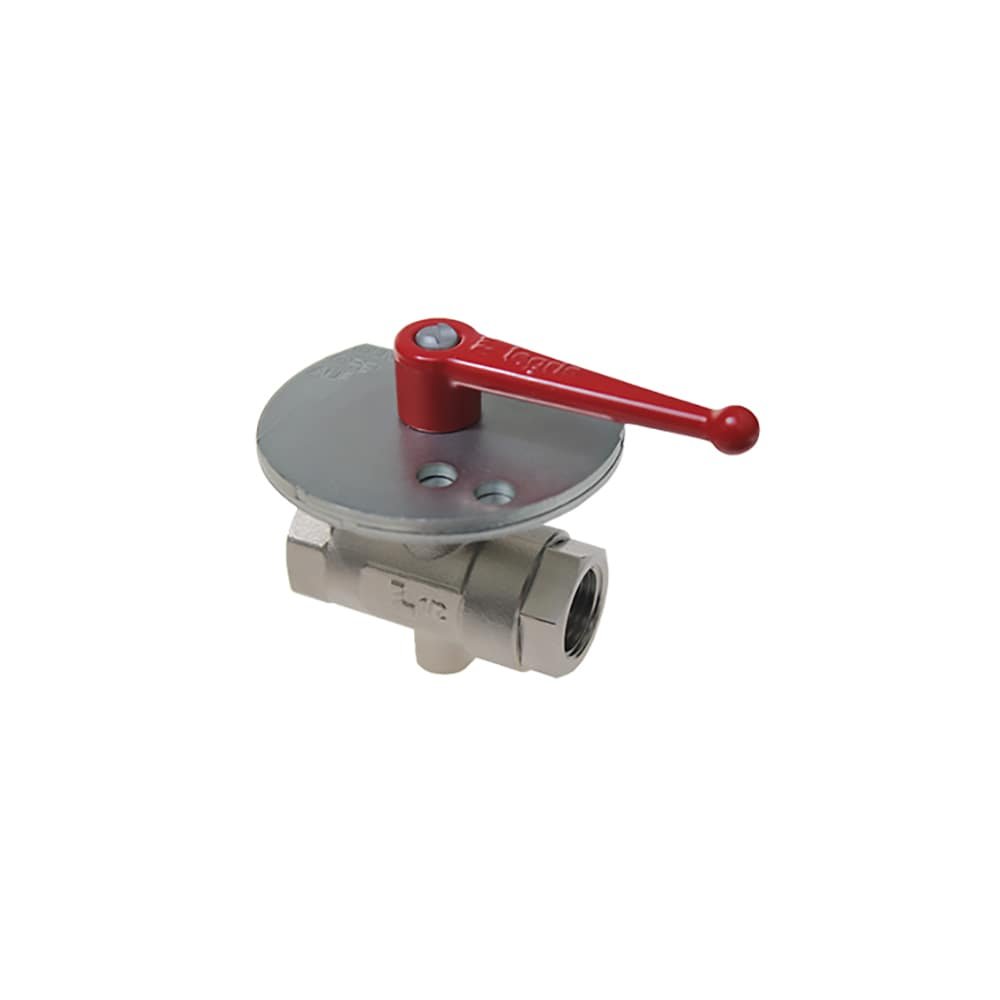

Ball Valves – Universal Series (Lockable)
Fluids
Compressed air, slightly corrosive fluids
Materials
Nickel-plated forged brass, galvanised steel, epoxy locking system
Pressure Rating
Up to 40 bar
Temperature Range
-20°C to +80°C

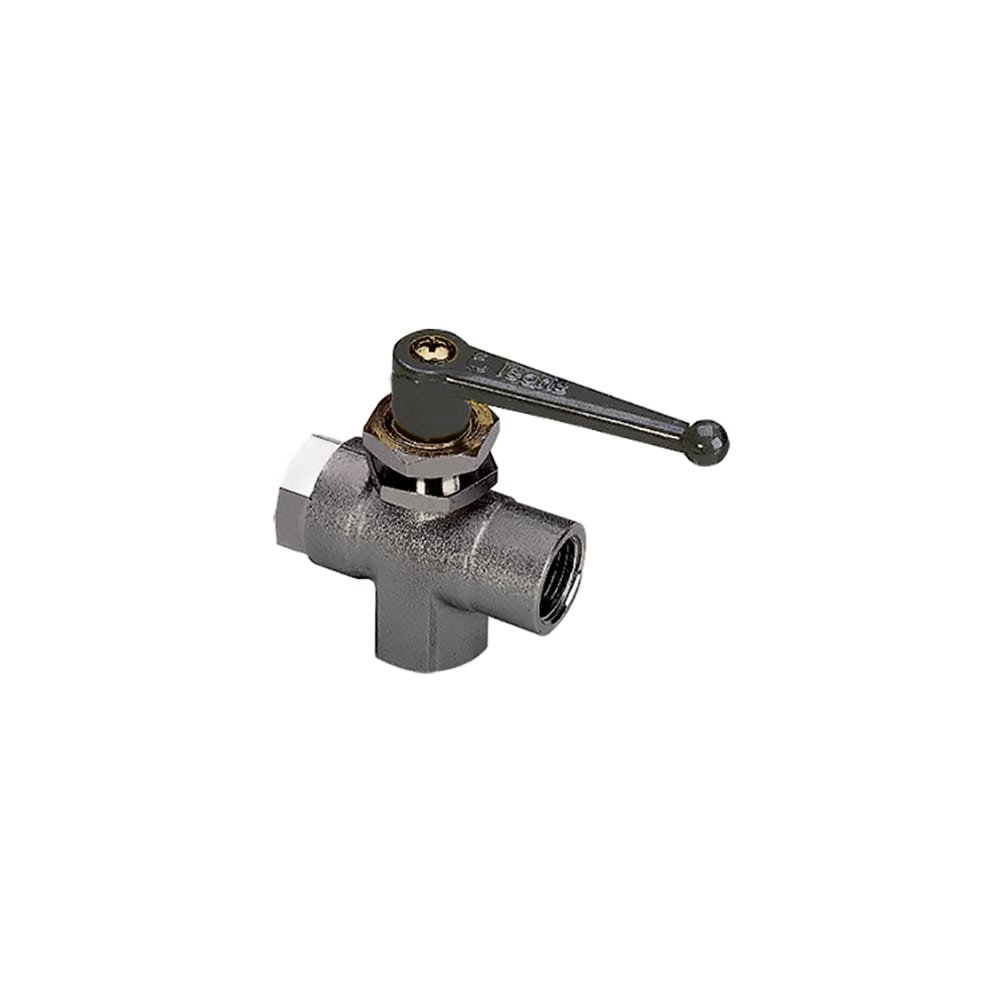

Ball Valves – Universal Customised Series
Fluids
Compressed air, multiple industrial fluids
Materials
Nickel-plated forged brass with seal options
Pressure Rating
Up to 40 bar
Temperature Range
-20°C to +100°C

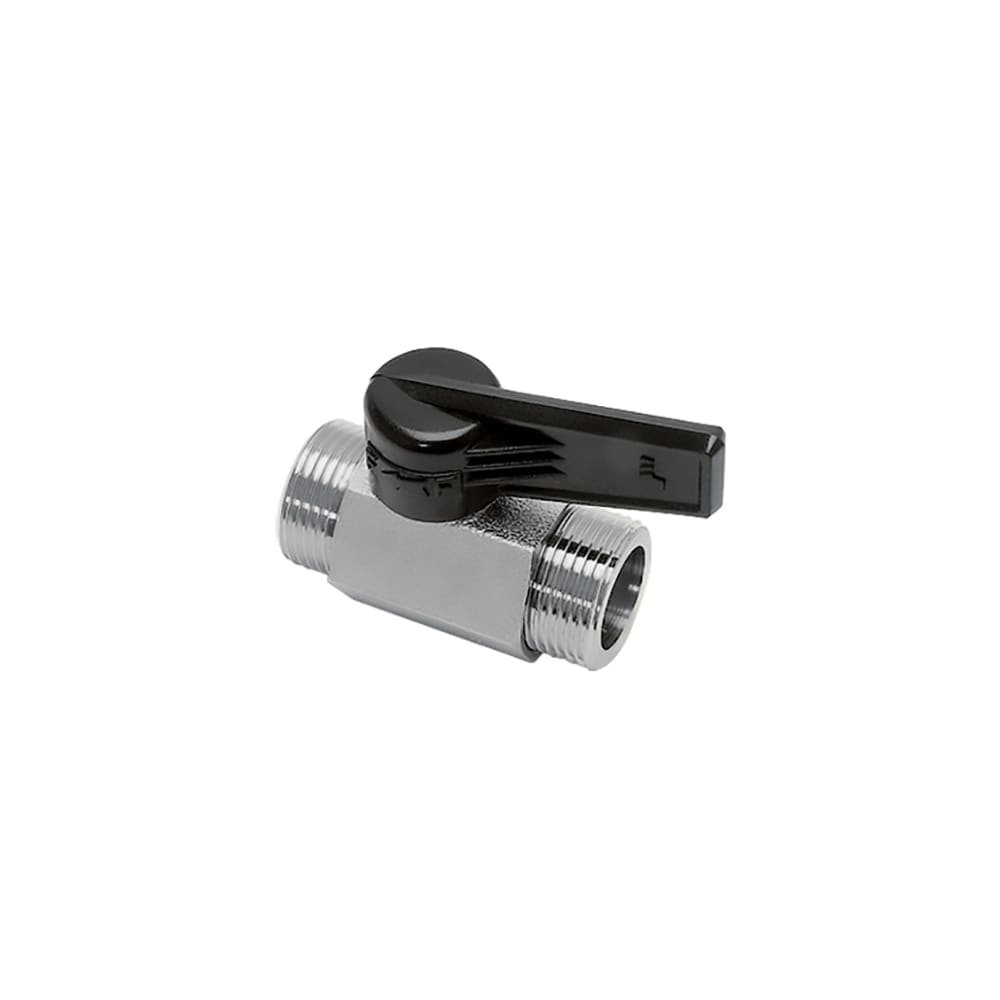

Ball Valves – Universal Light Series
Fluids
Compressed air, slightly corrosive fluids
Materials
Forged brass / nickel-plated forged brass
Pressure Rating
Up to 12 bar
Temperature Range
-20°C to +80°C
Ball Valves – DVGW Series
Fluids
Compressed air, water, gas
Materials
Nickel-plated forged brass
Pressure Rating
Up to 40 bar
Temperature Range
-40°C to +170°C

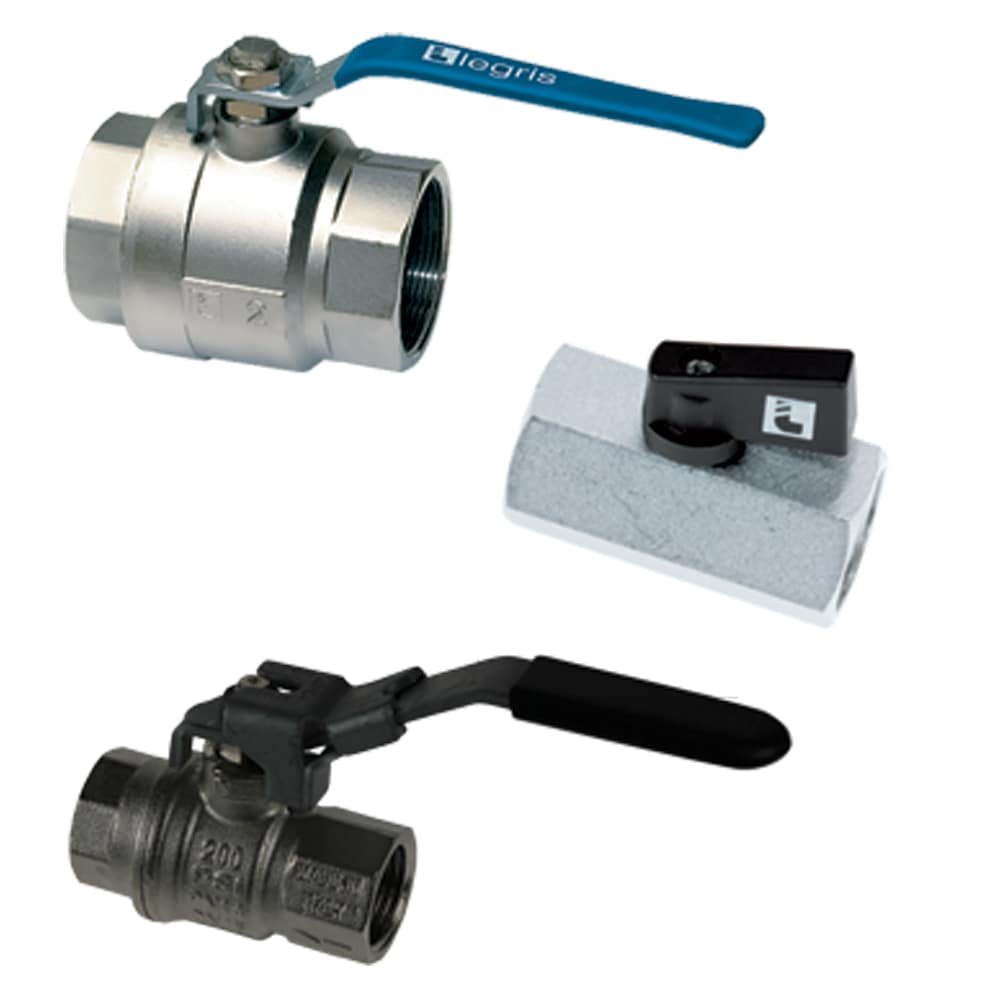

Ball Valves – Standard Series
Fluids
Compatible industrial fluids
Materials
Nickel or chromium-plated brass, PTFE seal
Pressure Rating
Up to 35 bar
Temperature Range
-20°C to +130°C

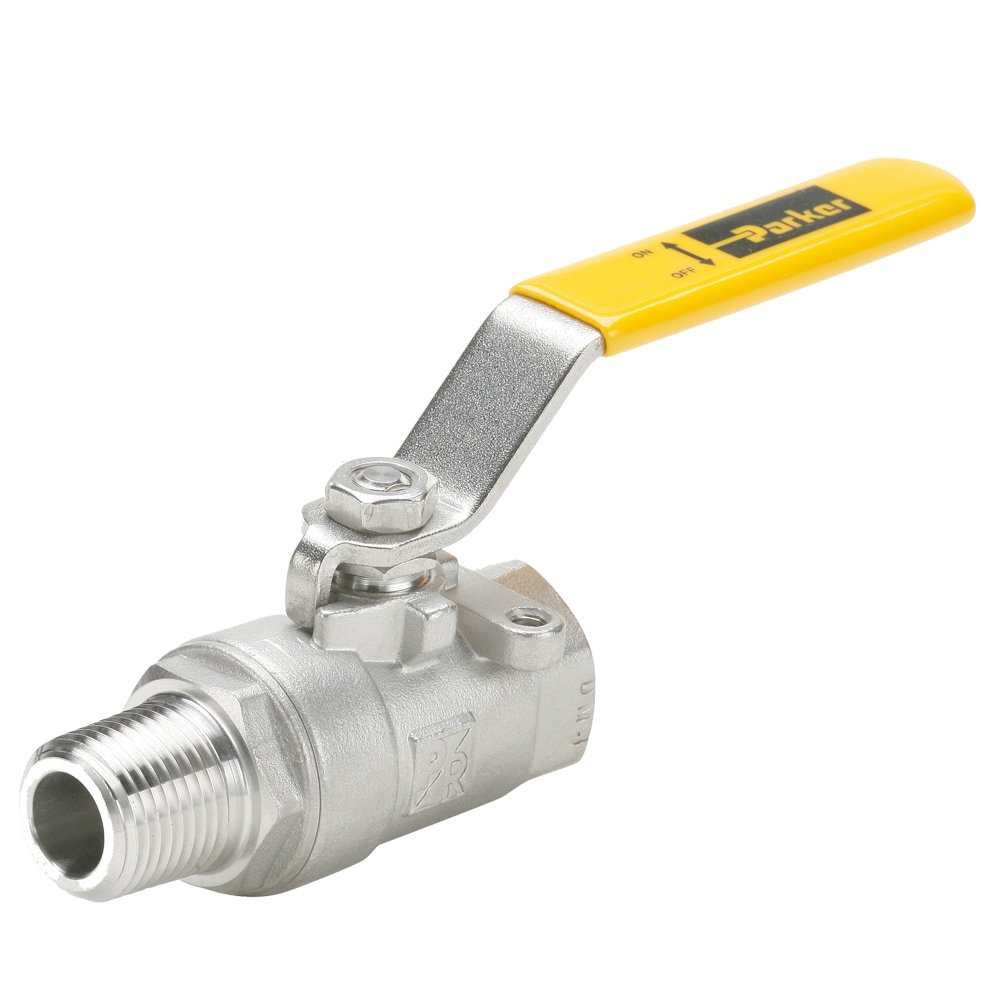

Ball Valves – Stainless Steel Series
Fluids
All fluids
Materials
316L stainless steel
Pressure Rating
Up to 65 bar
Temperature Range
-20°C to +150°C

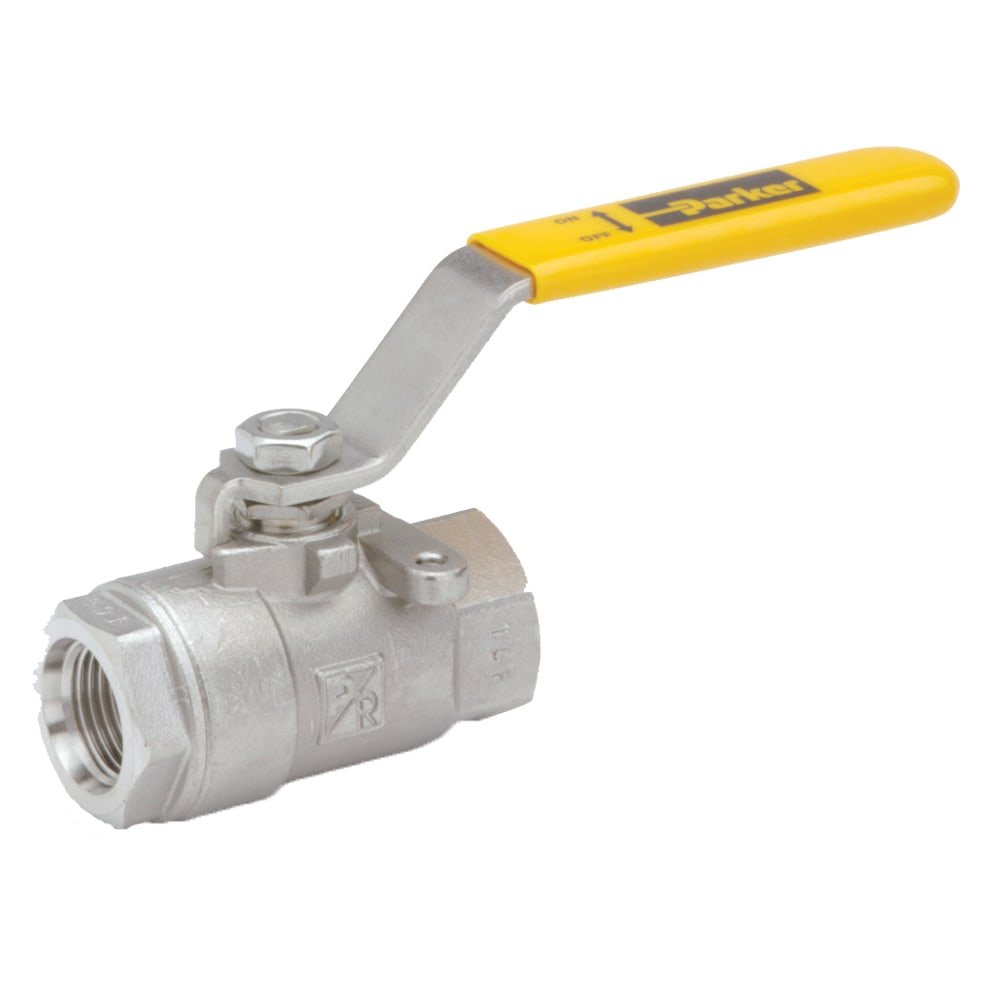

Ball Valves – Stainless Steel Light Series
Fluids
All fluids
Materials
316L stainless steel
Pressure Rating
Up to 65 bar
Temperature Range
-20°C to +120°C

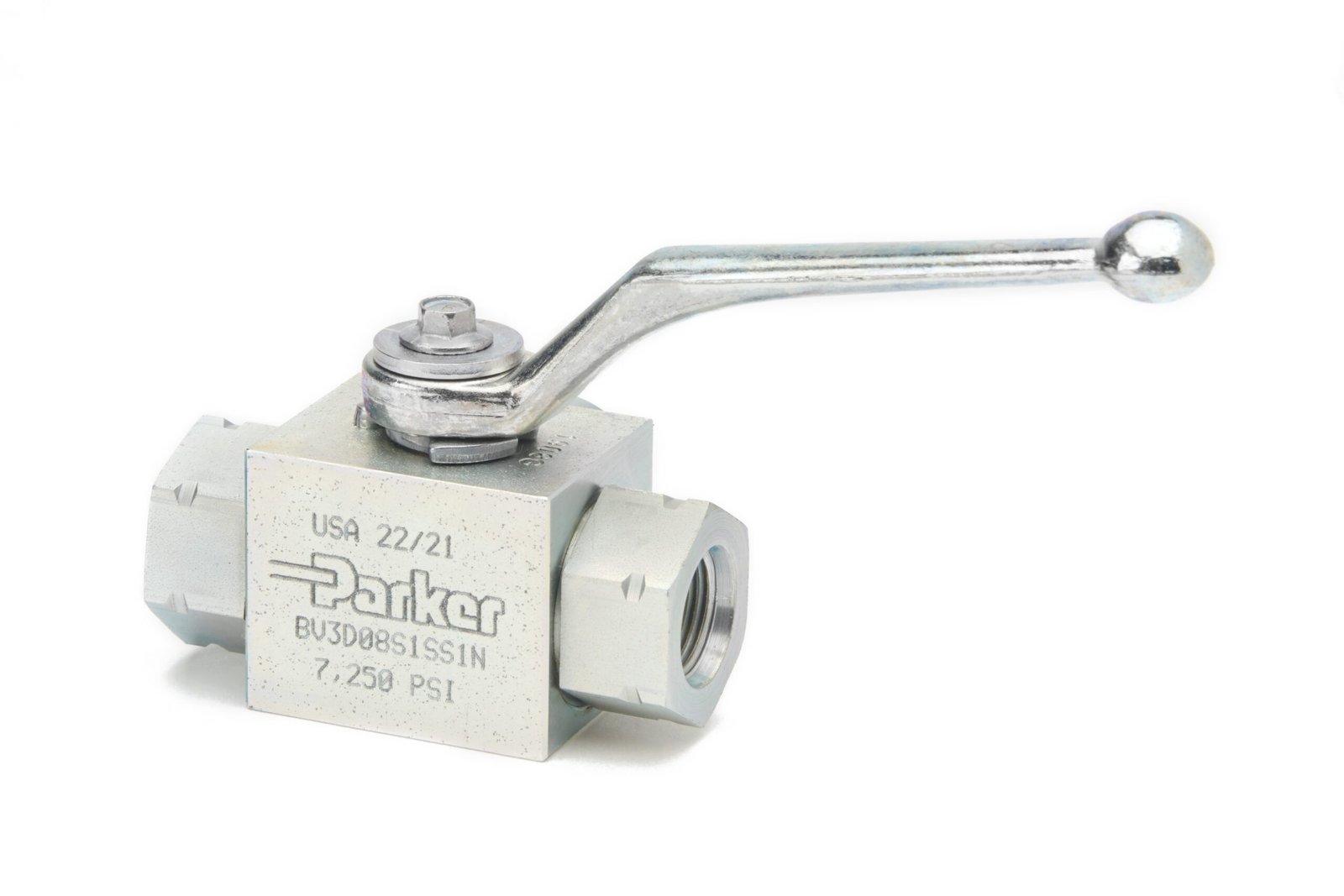

Ball Valves – High Pressure Series
Fluids
Lubricants, gases
Materials
Zinc-plated brass
Pressure Rating
Up to 300 bar
Temperature Range
-15°C to +80°C
Ball Valves – Mini Series
Fluids
Compressed air
Materials
Technical polymer
Pressure Rating
Up to 10 bar
Temperature Range
-20°C to +80°C
Ball Valves – Food-Grade Series
Fluids
Water, beverages, CO₂, inert gases
Materials
Polypropylene, EPDM seal
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +100°C

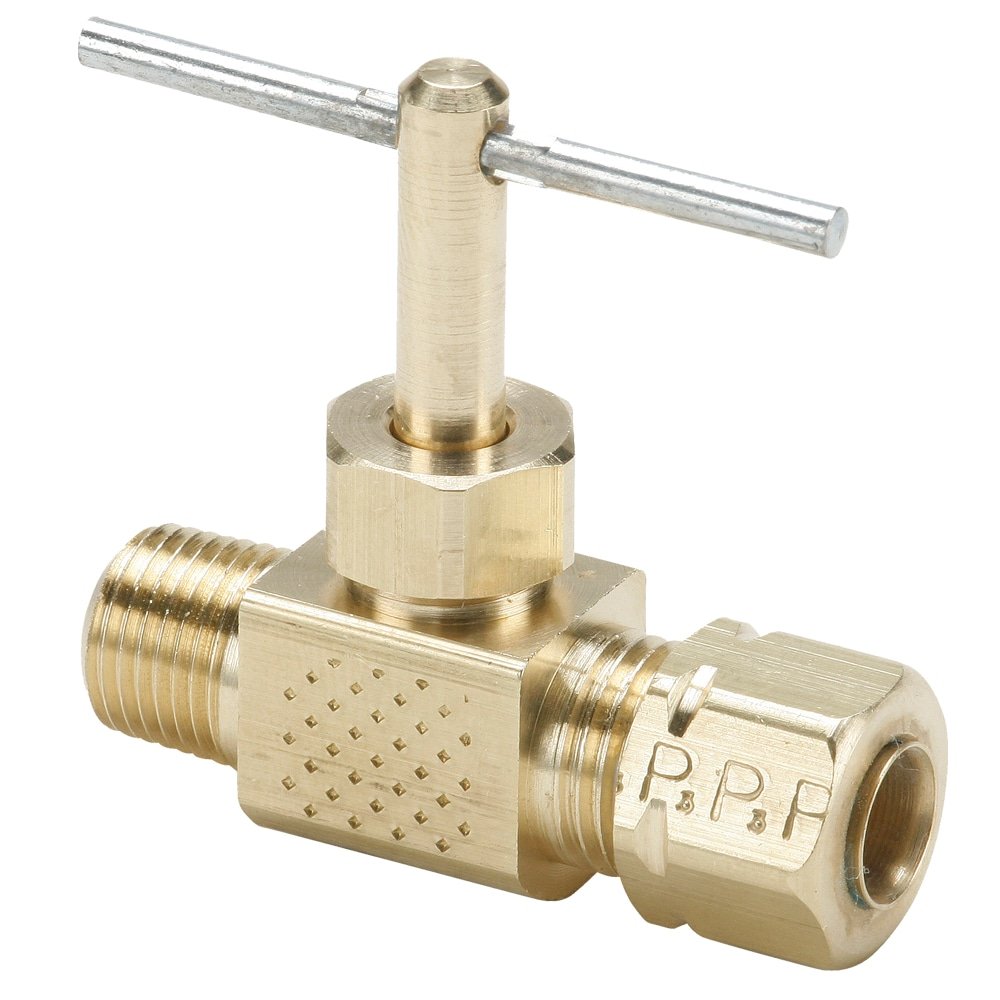

Needle Valves – Brass
Fluids
Compressed air, industrial fluids
Materials
Shot-blasted forged brass, nickel-plated
Pressure Rating
Up to 120 bar
Temperature Range
-20°C to +100°C

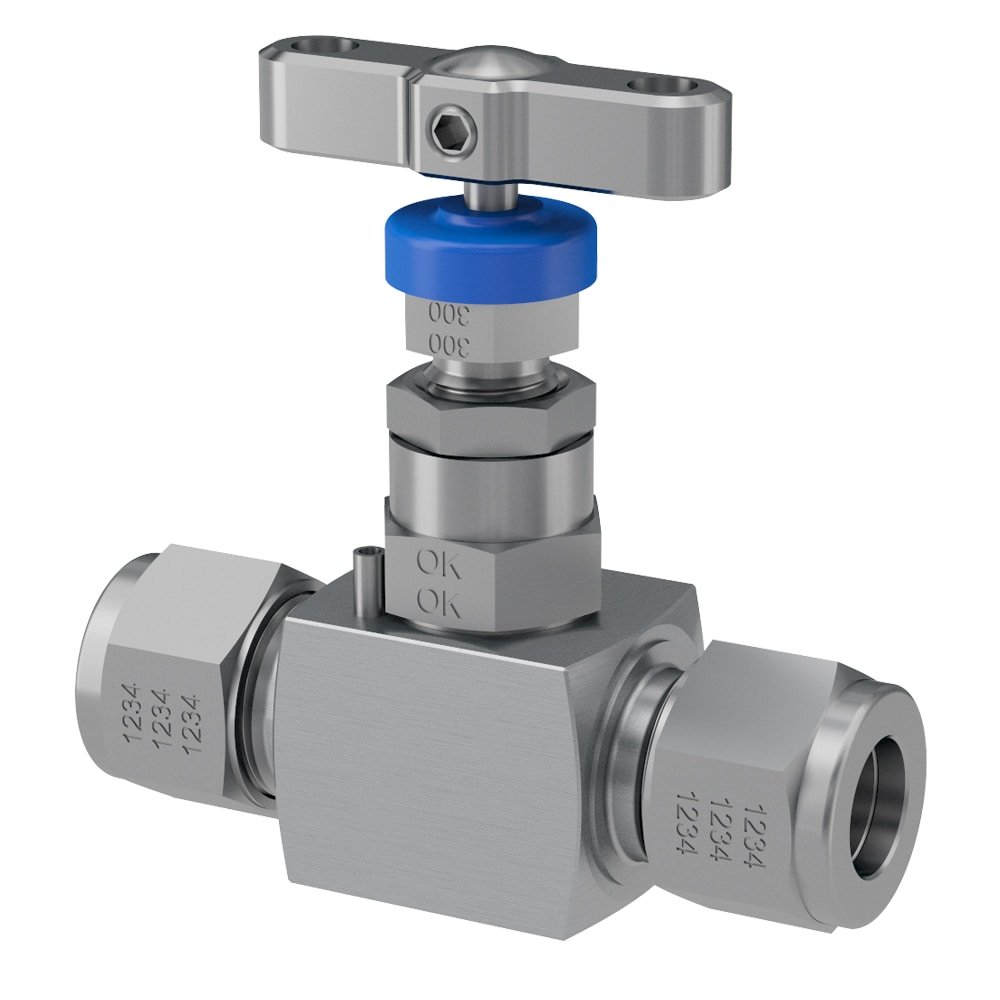

Needle Valves – Stainless Steel
Fluids
All fluids
Materials
316L stainless steel
Pressure Rating
Up to 400 bar
Temperature Range
-20°C to +180°C

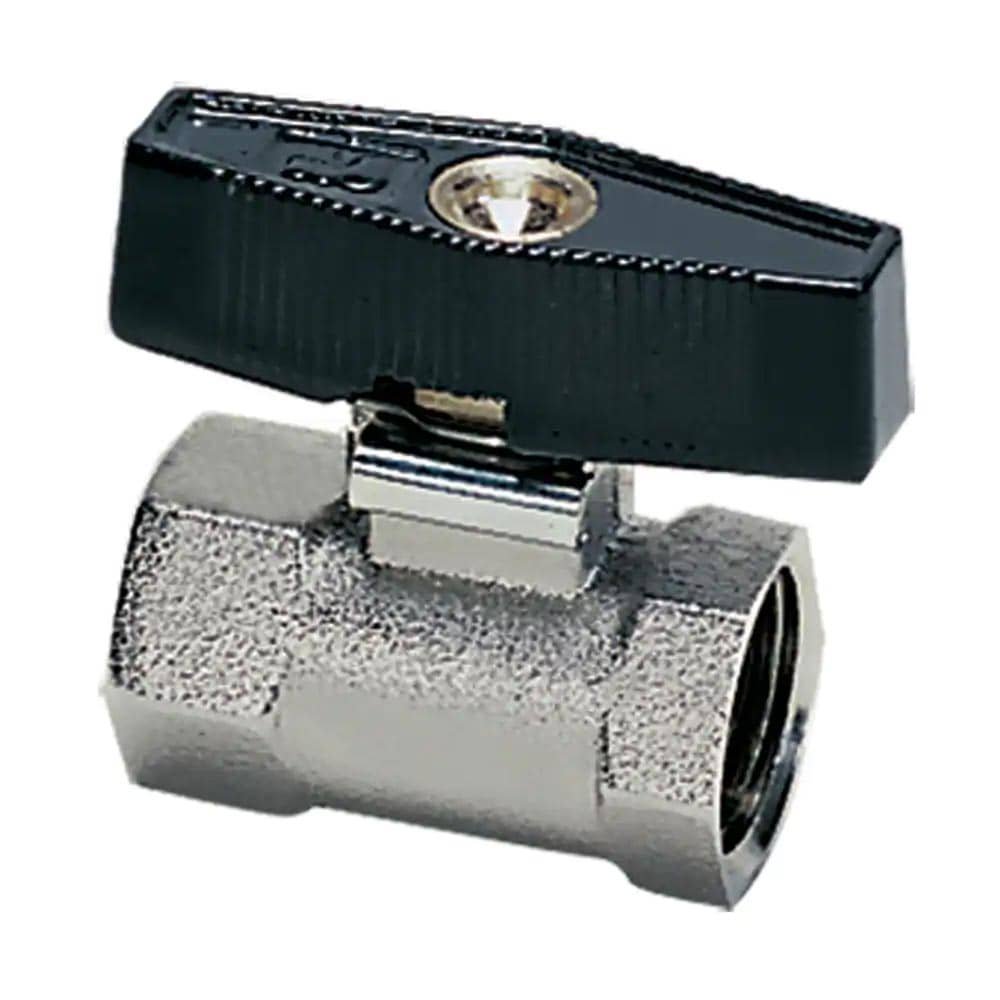

Butterfly Valves
Fluids
Compressed air, abrasive fluids
Materials
Shot-blasted forged brass, nickel-plated
Pressure Rating
Up to 16 bar
Temperature Range
-20°C to +80°C

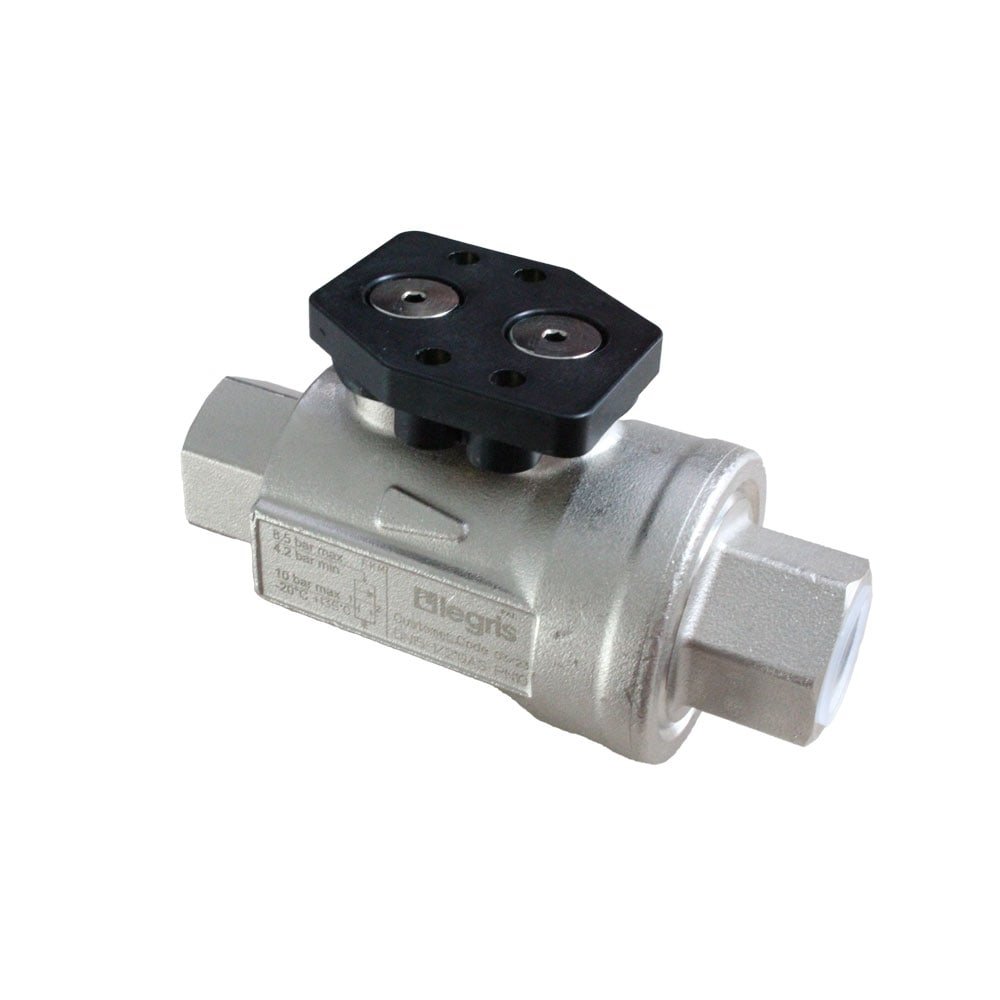

Axial Valves
Fluids
Compressed air, industrial fluids
Materials
Nickel-plated brass
Pressure Rating
Up to 10 bar
Temperature Range
-20°C to +135°C
Threads
3/8″ to 2″
Blowguns & Accessories
High-performance industrial blowguns for cleaning and air applications, available in standard, safety, energy-saving, and metal variants.

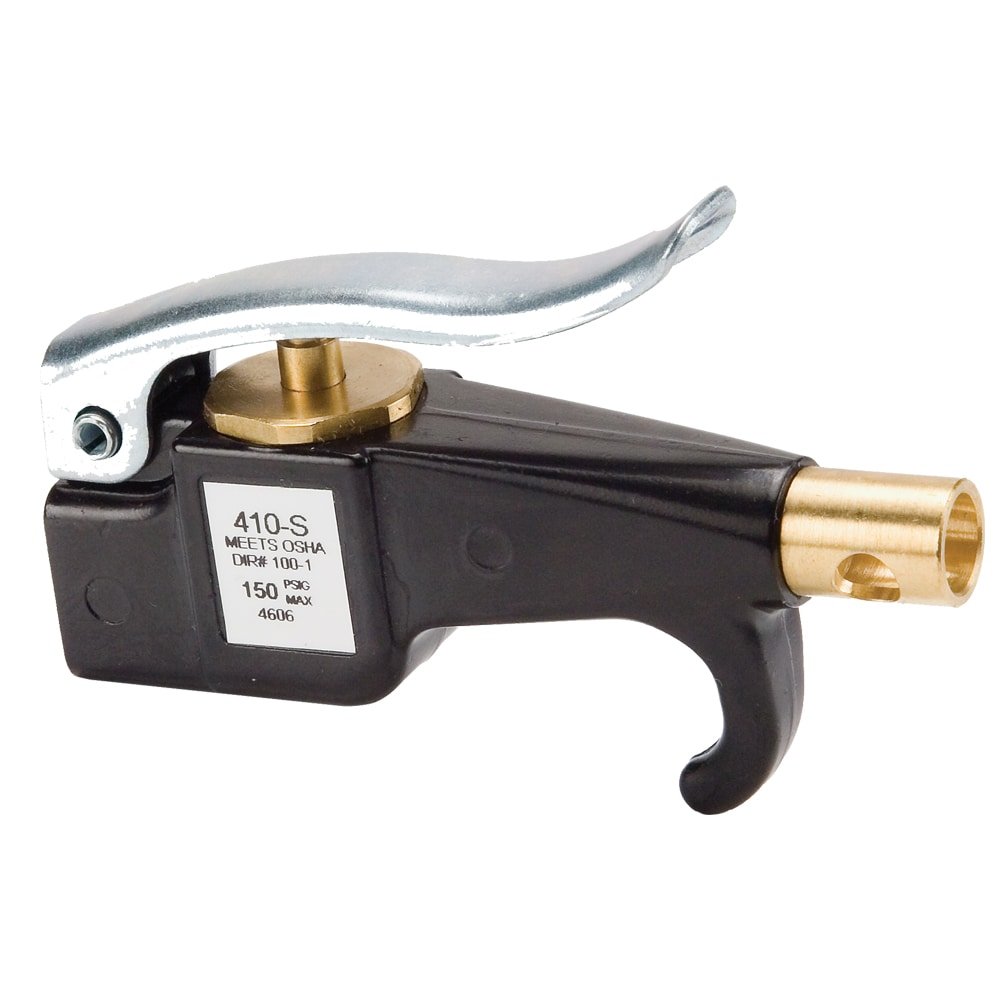

Standard Blowgun
Fluids
Compressed air
Materials
Technical polymer, NBR
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C

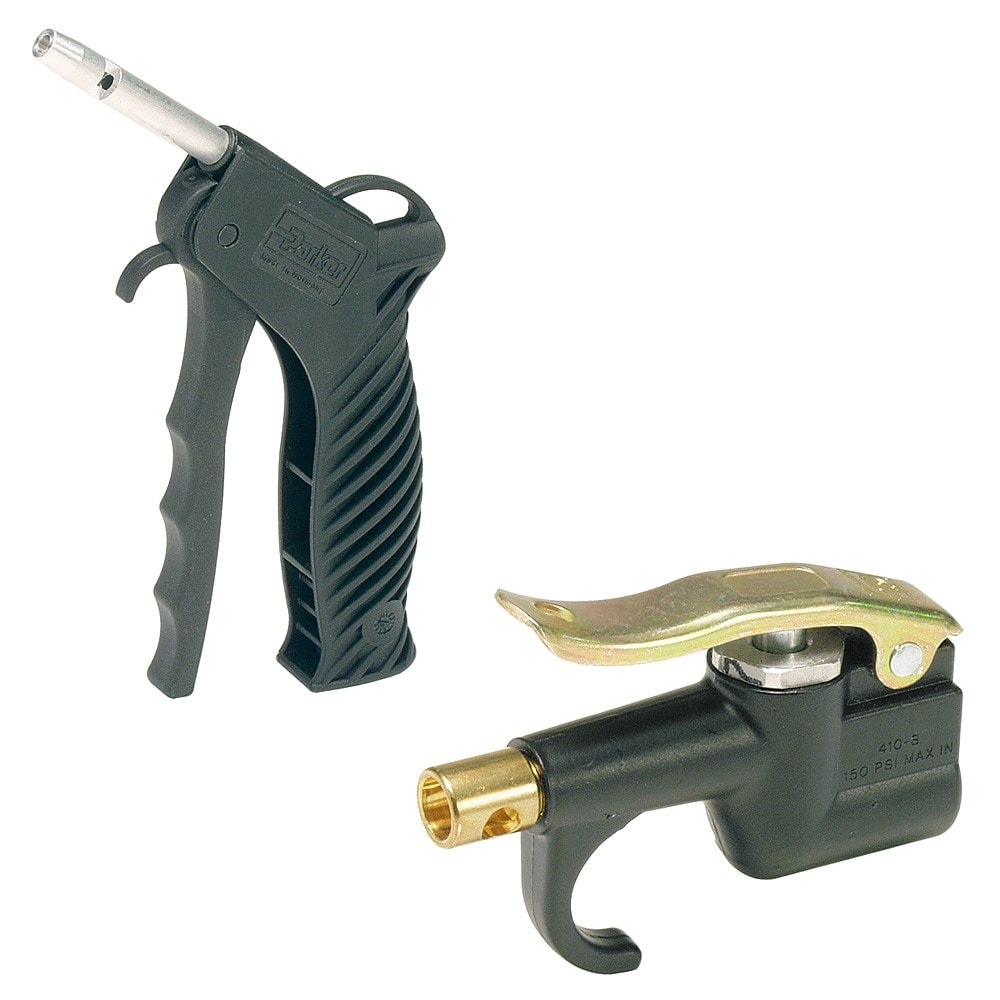

Safety Blowgun
Fluids
Compressed air
Materials
Technical polymer, NBR
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C

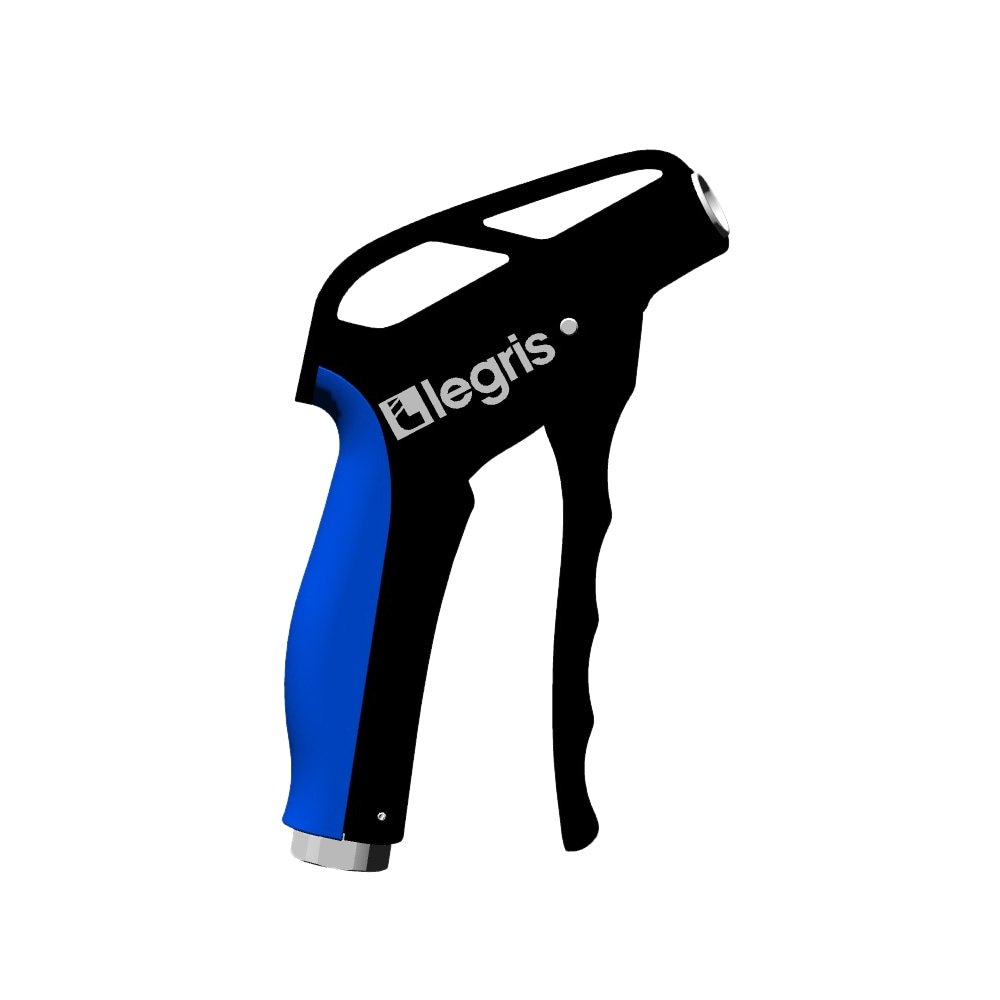

Energy-Saving Blowgun
Fluids
Compressed air
Materials
Technical polymer, NBR
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C

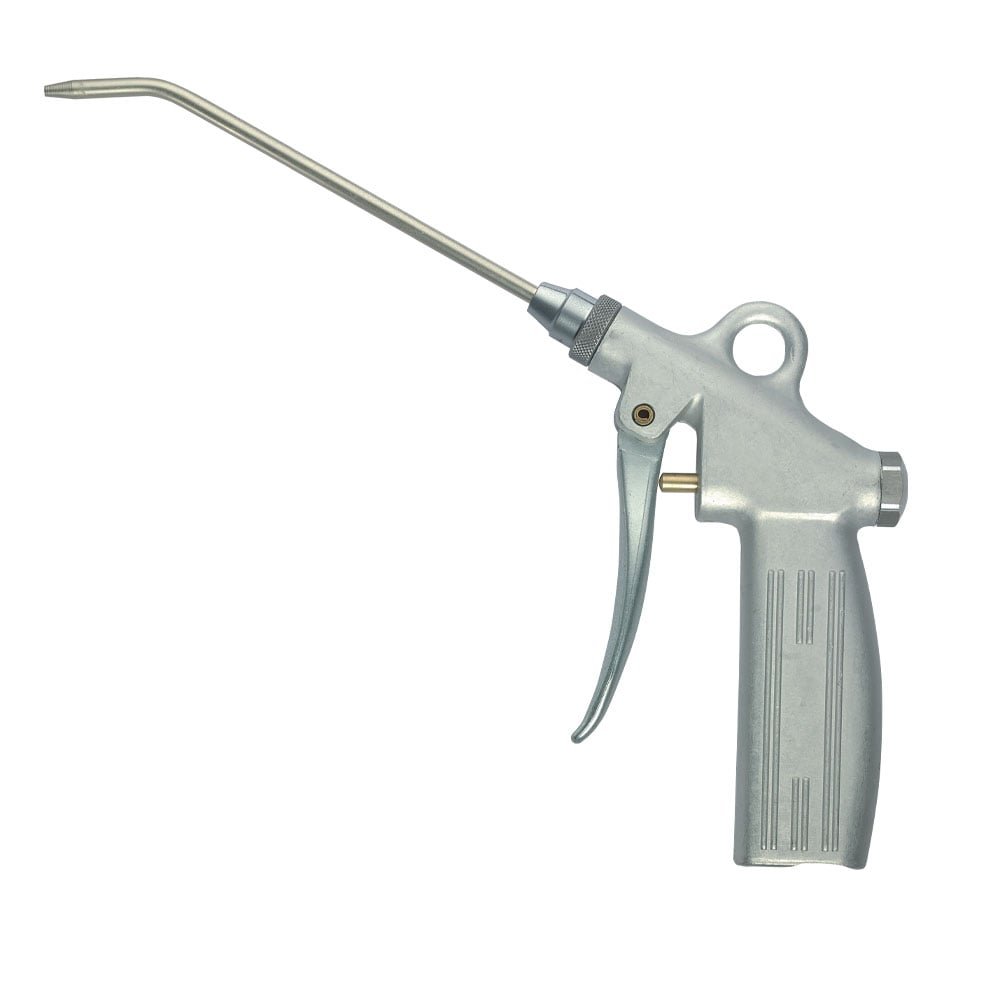

Versatile Blowguns
Fluids
Compressed air
Materials
Technical polymer, NBR
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C

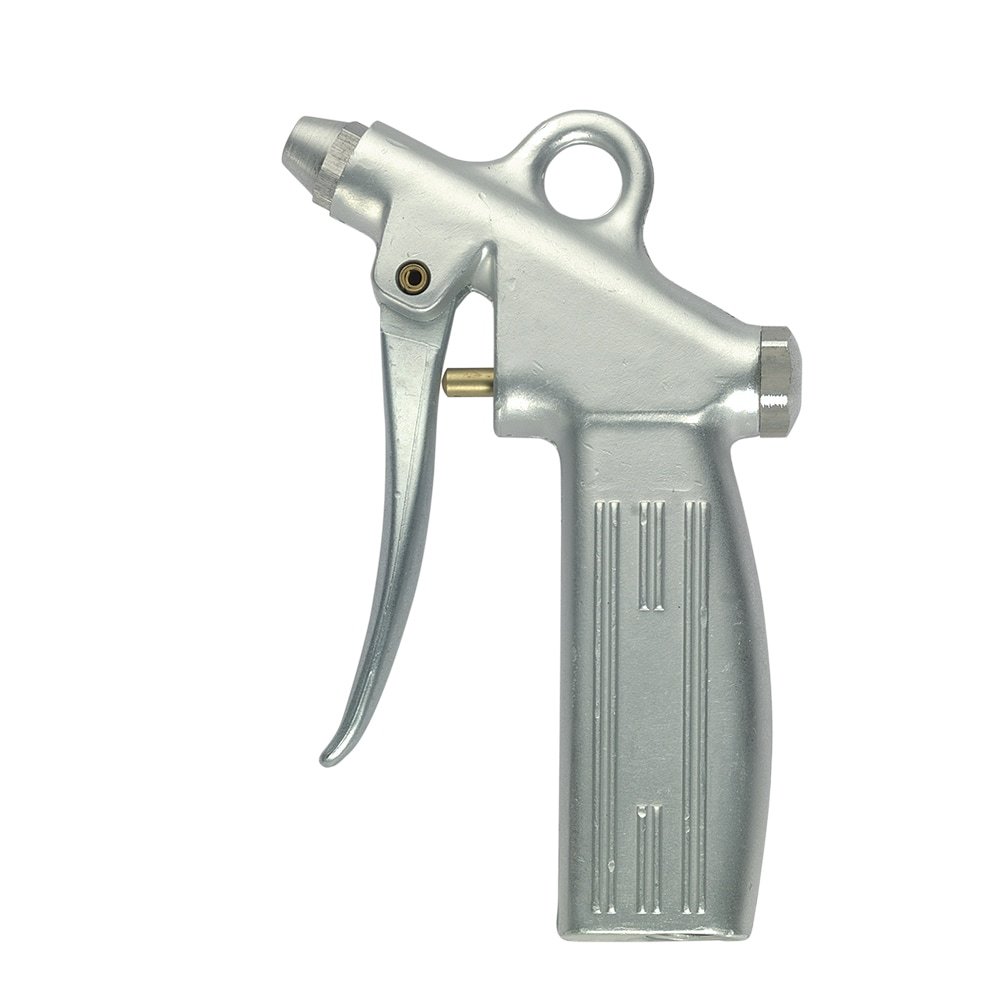

Metal Blowguns
Fluids
Compressed air
Materials
Forged nickel-plated brass, NBR
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C

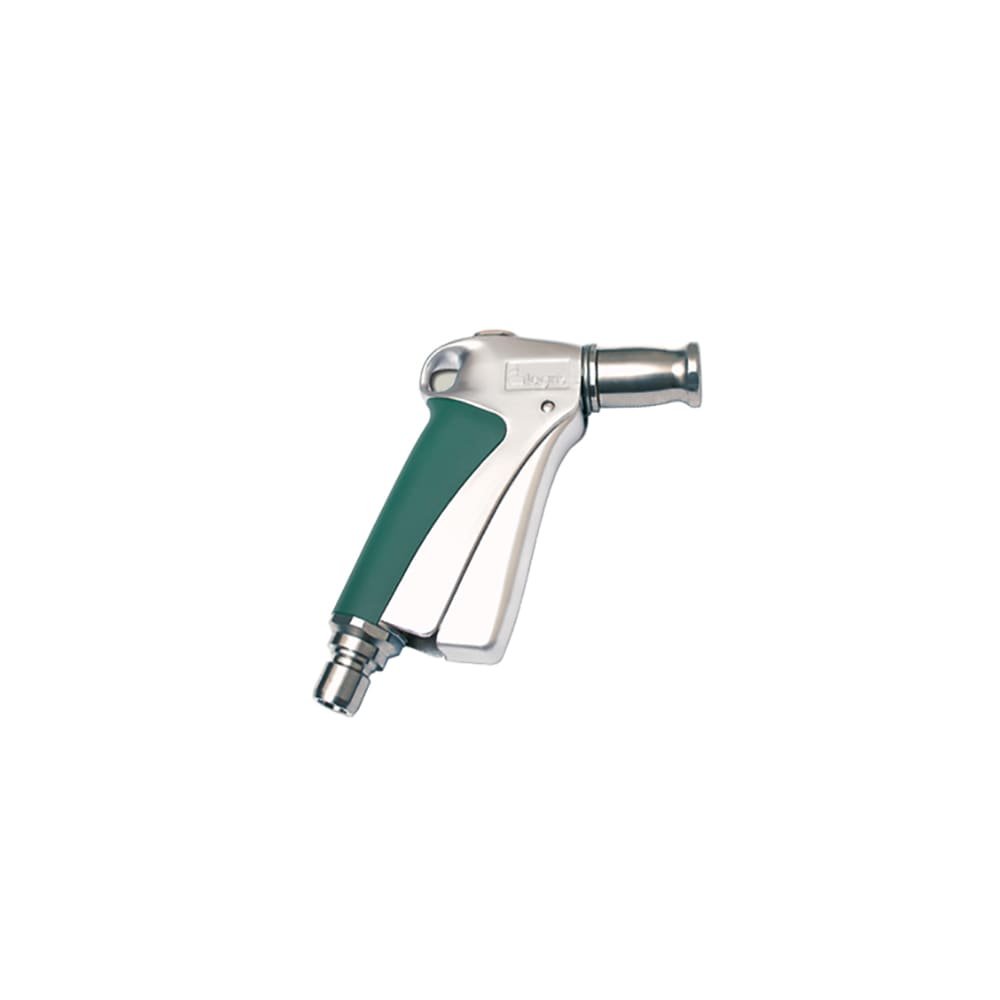

Water Pistol
Fluids
Water, industrial fluids
Materials
Zamak, NBR
Pressure Rating
Up to 20 bar
Temperature Range
-20°C to +100°C

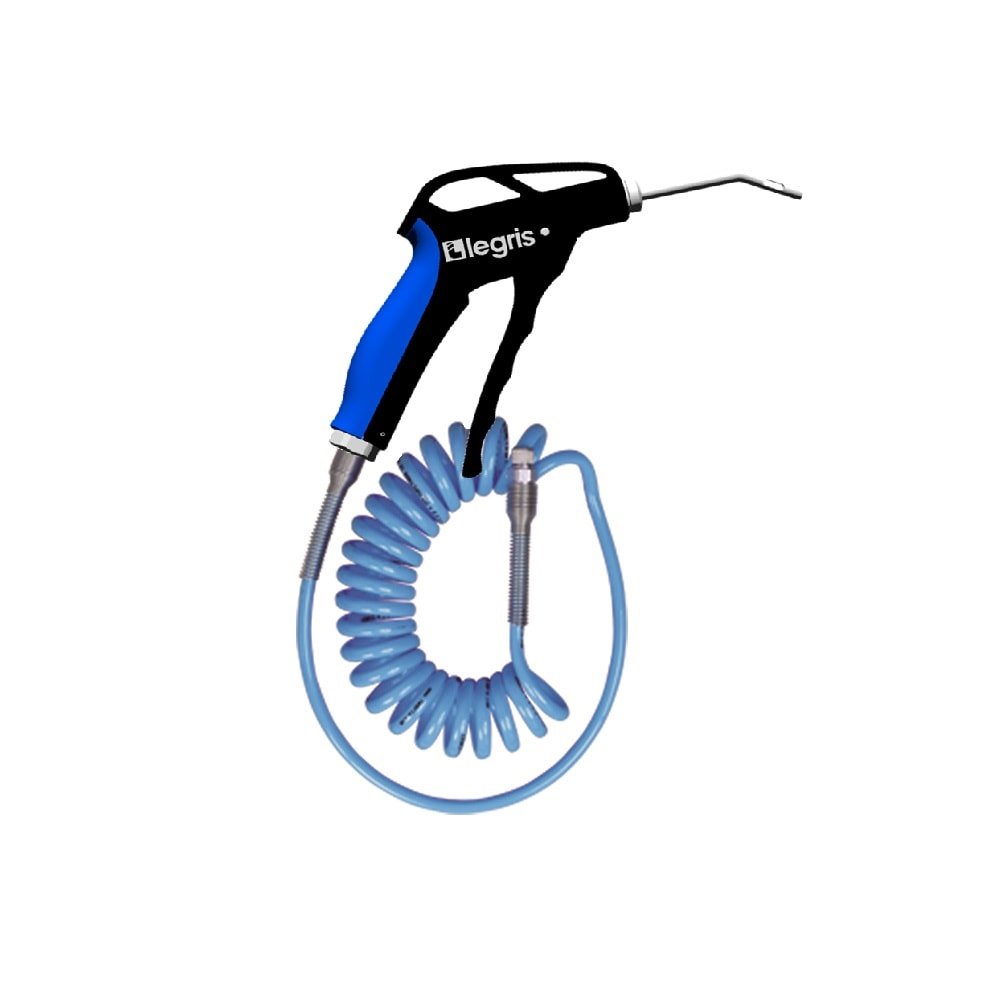

Blowgun Kits
Fluids
Compressed air
Materials
Technical polymer
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C
Nozzles
Fluids
Compressed air
Materials
Nickel-plated brass
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +50°C
Quick Couplers
Efficient quick-acting couplers for fast and secure connections in pneumatic and fluid systems.
Polymer Safety
Reinforced technical polymer
Metal Series
Brass & Stainless Steel variants
Mould Couplers
For heat transfer fluids

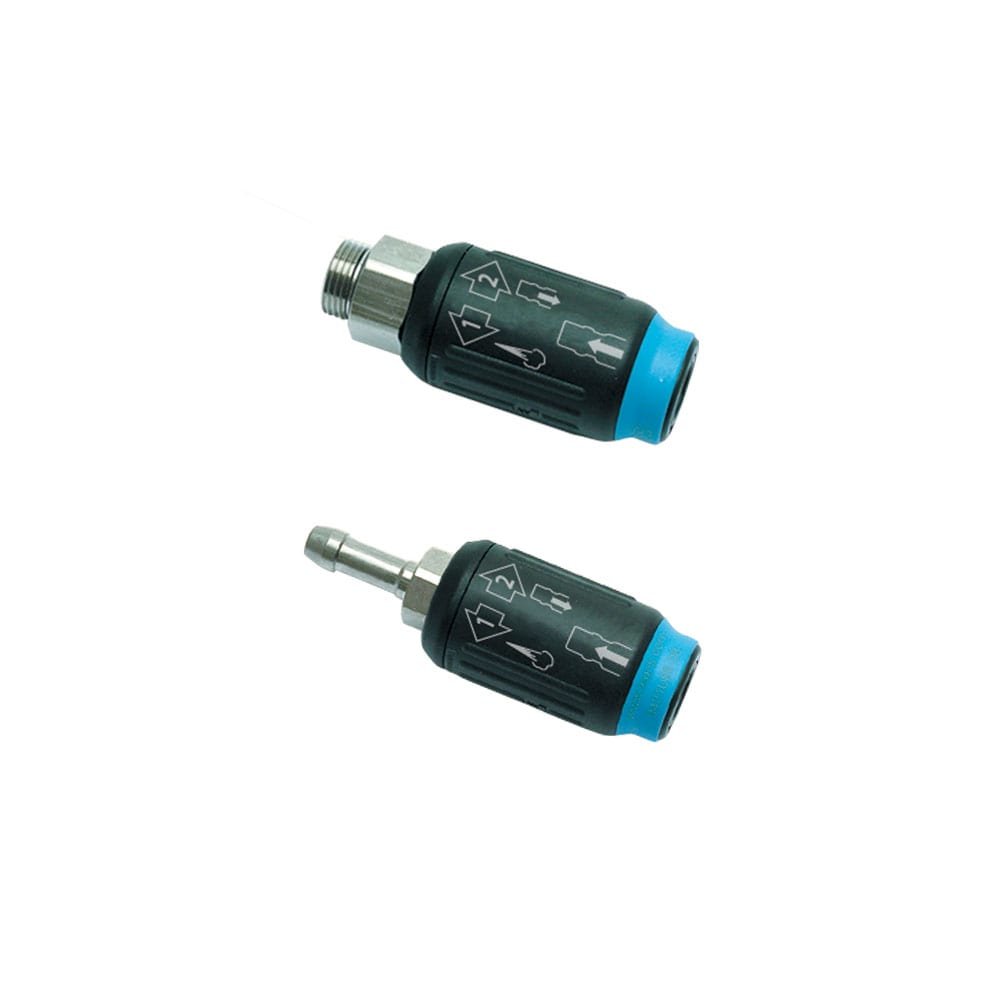

Polymer Quick-Acting Safety
Fluids
Compressed air
Materials
Reinforced technical polymer, nickel-plated brass
Pressure Rating
Up to 16 bar
Temperature Range
-20°C to +60°C
Fluids
Compressed air
Materials
Reinforced technical polymer, nickel-plated brass
Pressure Rating
Up to 16 bar
Temperature Range
-20°C to +60°C

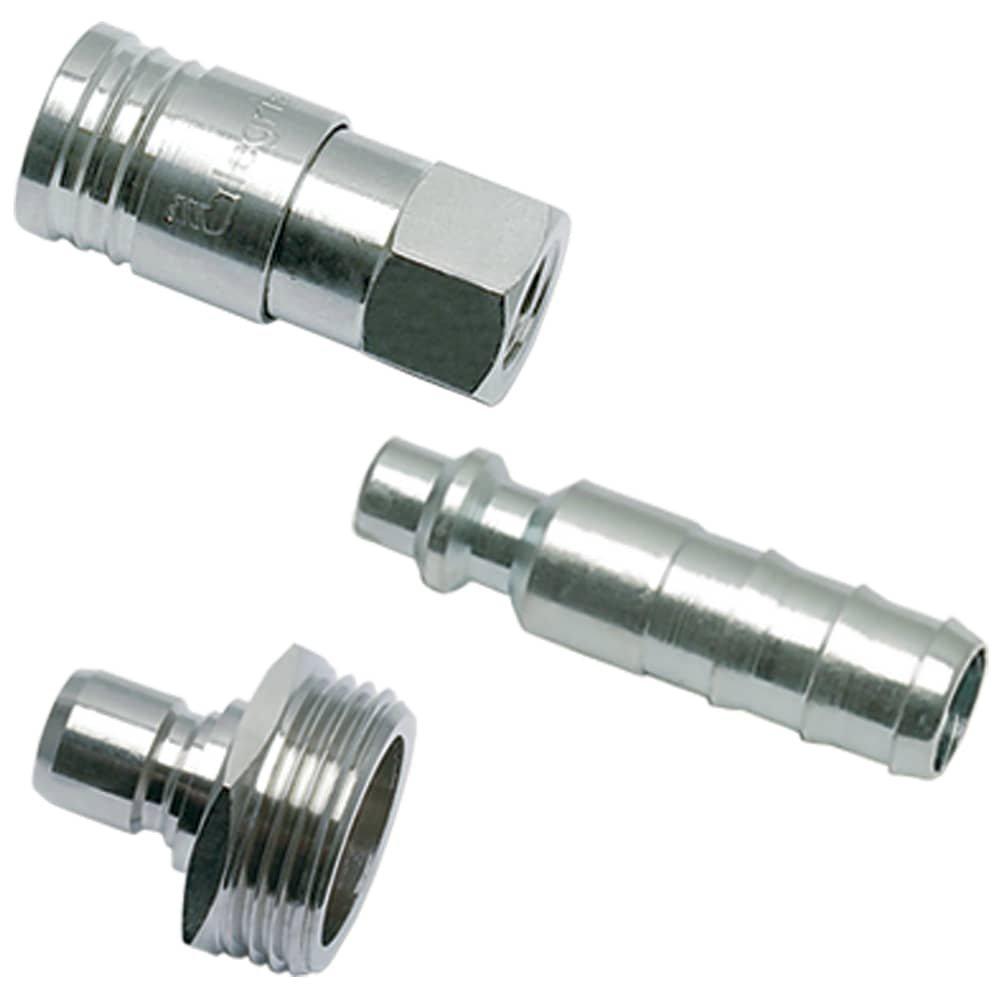

Metal Quick-Acting Couplers
Fluids
Compressed air, water, industrial fluids
Materials
Nickel-plated brass or stainless steel
Pressure Rating
20 bar (brass), 35 bar (stainless steel)
Temperature Range
-20°C to +100°C (brass), -15°C to +200°C (stainless steel)

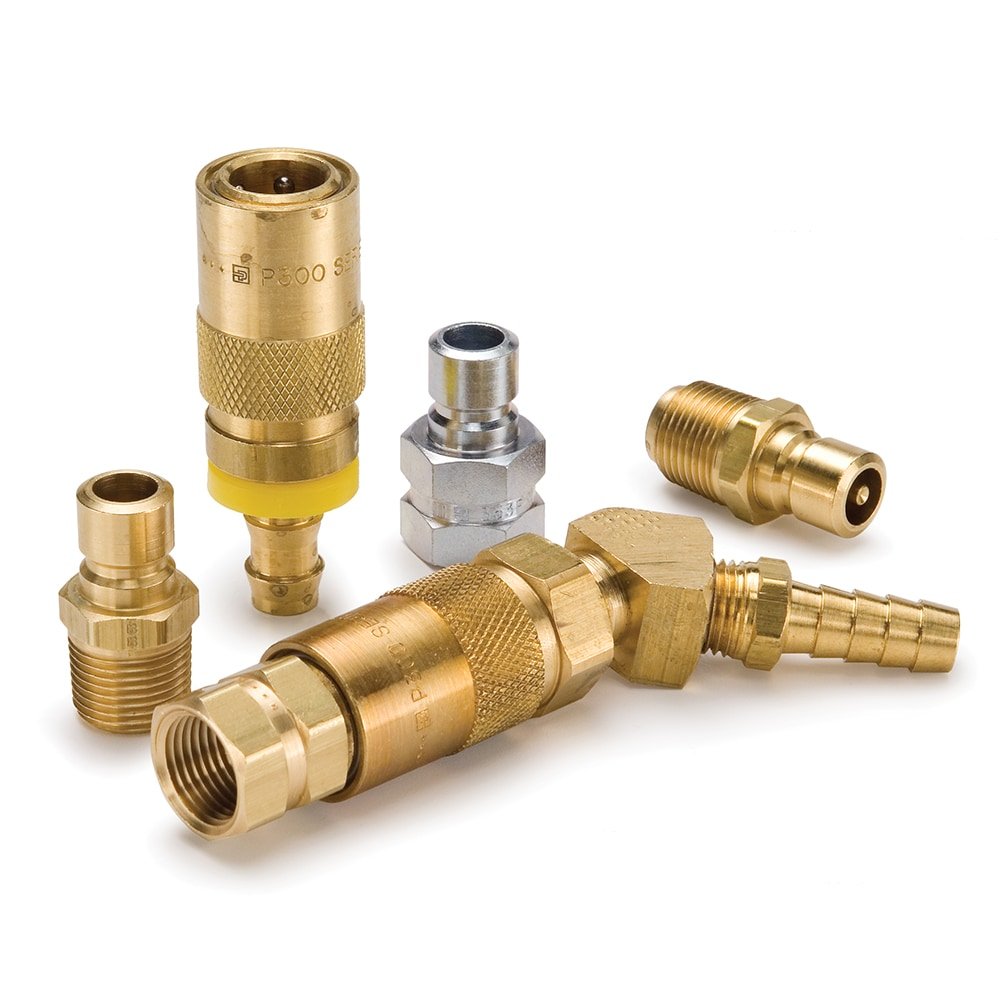

Metal Quick-Acting Mould Couplers
Fluids
Heat transfer fluids
Materials
Nickel-plated brass
Pressure Rating
Up to 10 bar
Temperature Range
-15°C to +90°C
