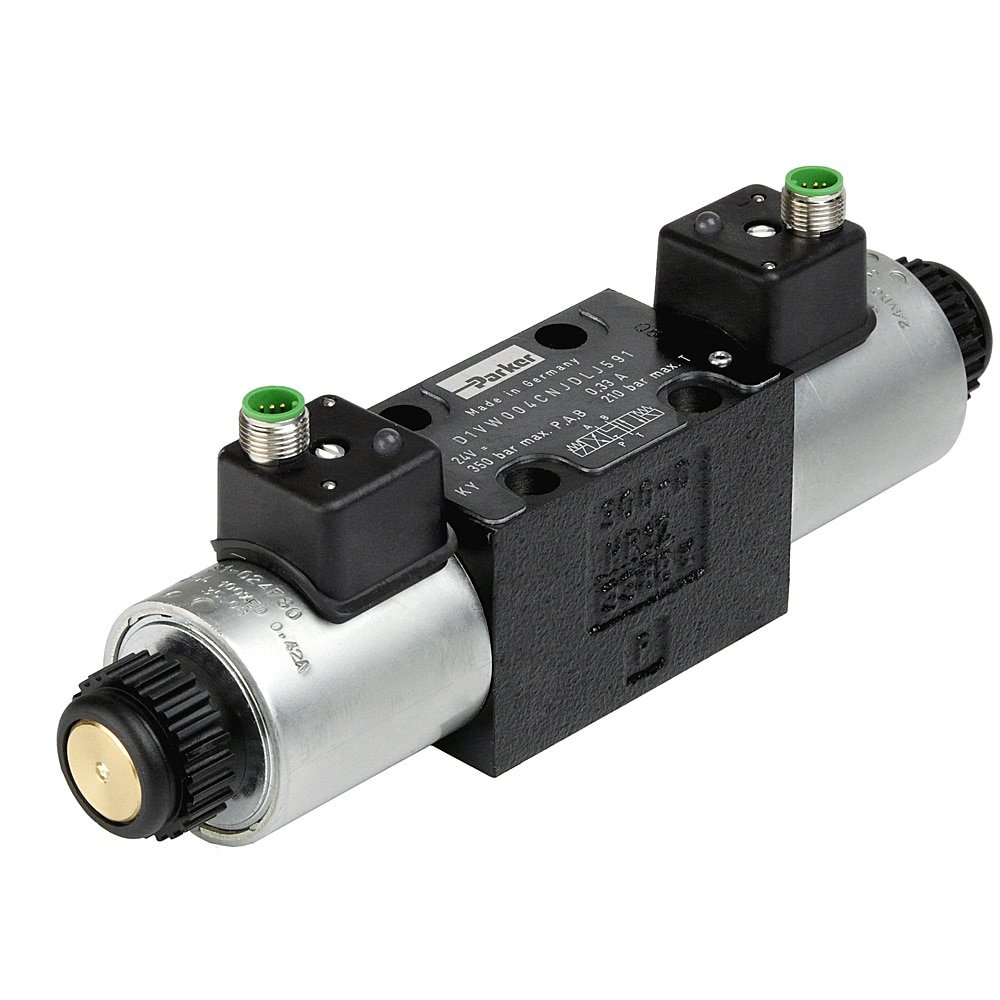

Directional Control Valve (8 Watt) – Series D1VW
The Series D1VW 8 Watt Directional Control Valve in NG06 (CETOP 03 / NFPA D03) enables direct connection to PLCs and bus systems, eliminating the need for relays. Designed for efficient hydraulic control, it delivers flow rates up to 60 l/min with low pressure drop and maximum operating pressure up to 350 bar.
- Compact, proven hydraulic valve design
- Low pressure drop for reduced energy losses
- Wide range of spool options for various hydraulic systems
- Available with EN175301-803 and M12 x 1 connections
- DESINA-compliant M12 version with LED indication
- Short lead times with no warehousing required

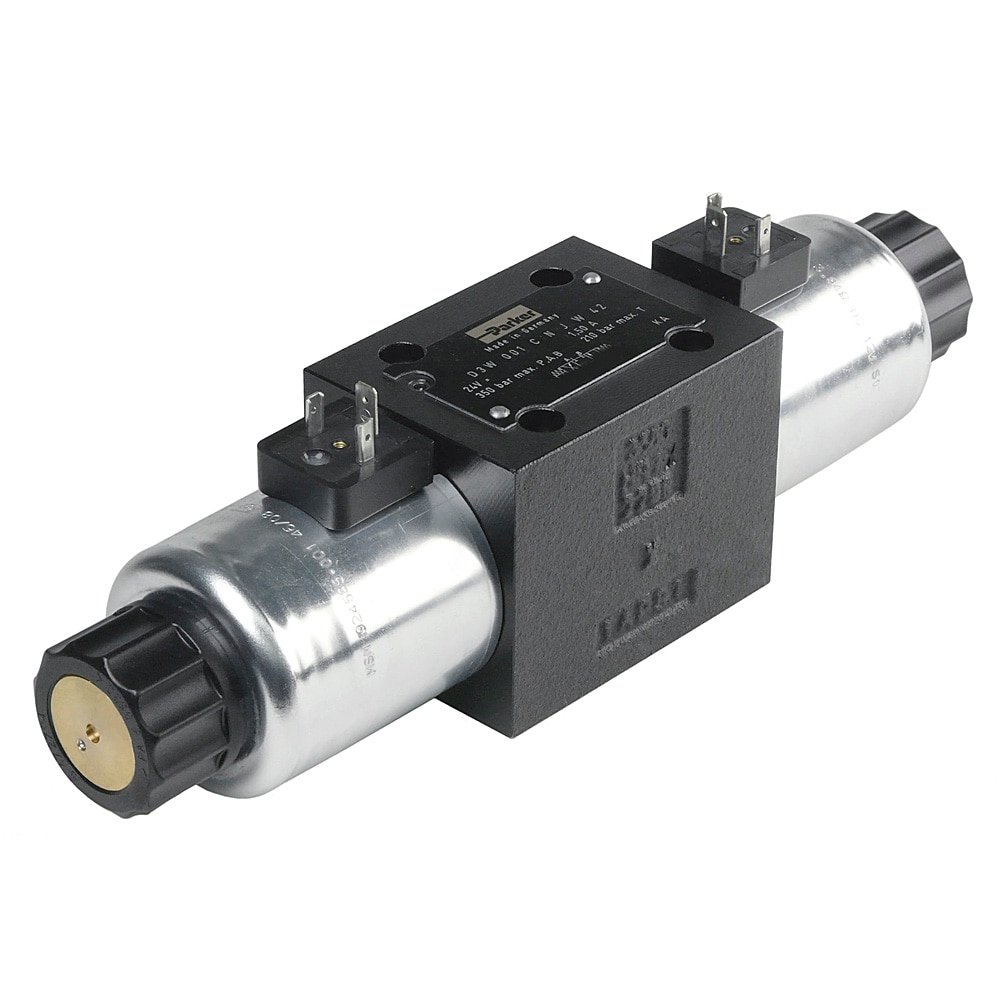

Directional Control Valves – Series D3W
The Series D3W NG10 Directional Control Valve with inductive position control provides flow rates up to 150 l/min with low pressure drop for energy-efficient operation. Ideal for safety-related applications, it complies with Machinery Directive 2006/42/EG and EN 201:2010 standards.
- High functional limits for safe operation at high flow rates
- Low pressure drop for reduced energy consumption
- Inductive position monitoring for reliable control
- Fail-safe spring offset position during power failure
- Wide product range with multiple configuration options
- Short delivery times with no warehousing required

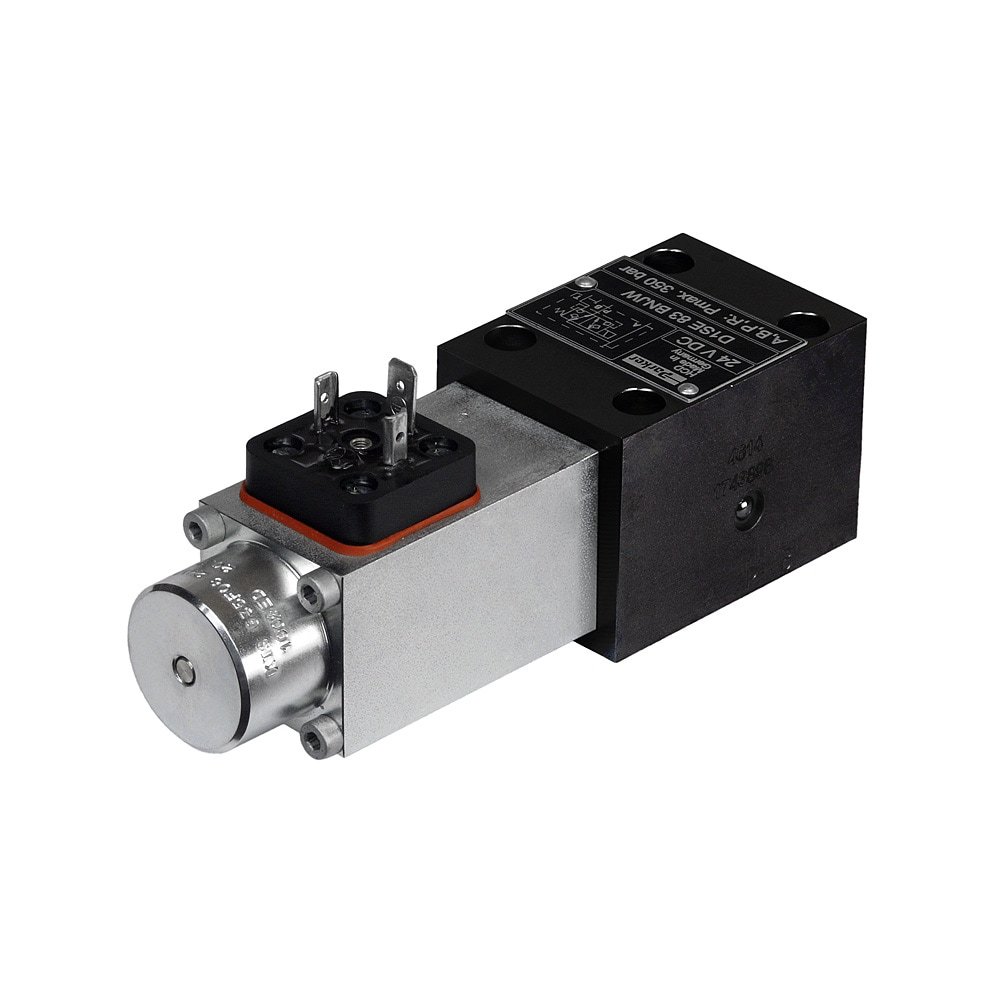

3/2 Way Seated Type Directional Control Valve – Series D1SE
The Series D1SE 3/2 Way Seated Directional Control Valve in NG06 / CETOP 03 / NFPA D03 combines robust valve construction with the benefits of seat valve technology. Its nearly leakage-free poppet design ensures safe switching and reliable operation, even after long standstill periods.
- Compact and proven hydraulic valve design
- Robust all-steel construction with hardened internal parts
- Ground poppet and seat for practically leakage-free operation
- Reliable switching performance after long idle periods
- Short delivery times with no warehousing required

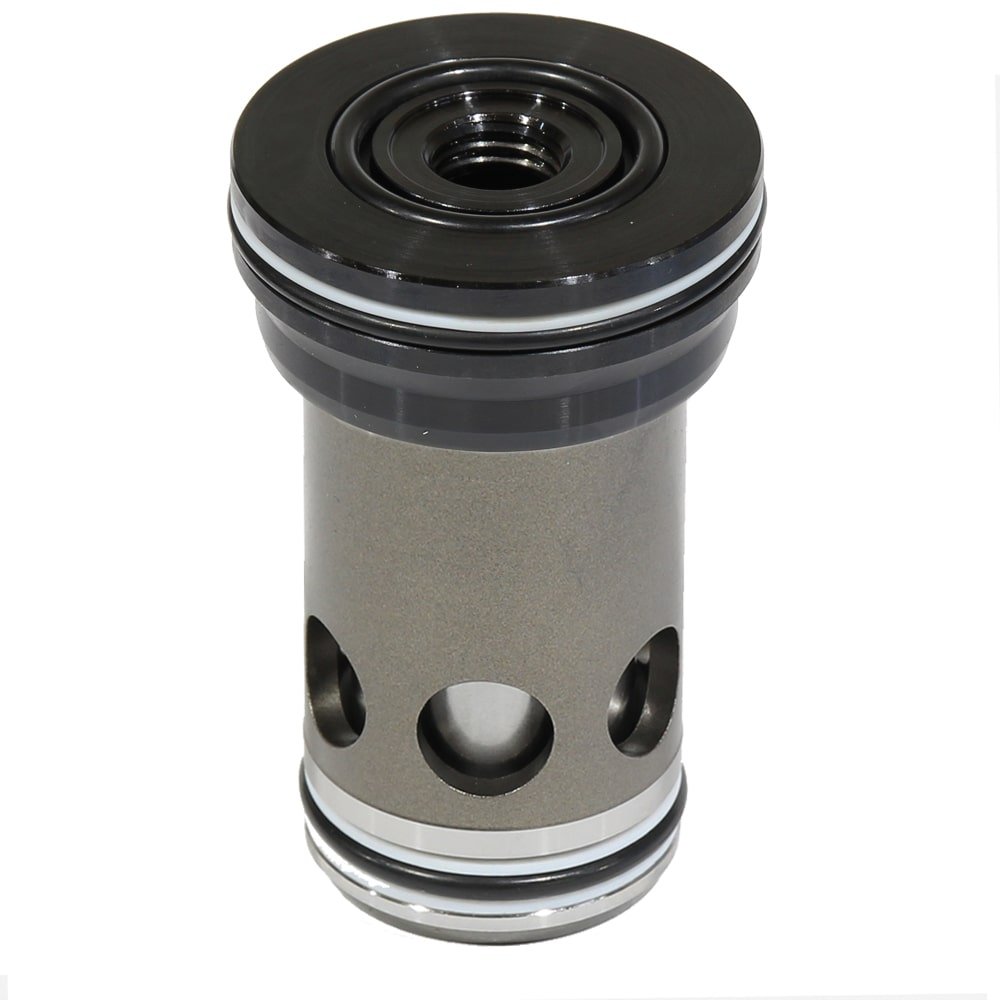

2-Way Slip-In Cartridge Valve – Series CE, CP
The Series CE and CP 2-Way Slip-In Cartridge Valves are hydraulically controlled seat valves designed for compact block installation. Their modular design supports single and combined hydraulic functions across multiple sizes and configurations.
- ISO 7368 compliant cavity and mounting pattern
- Complete modular system for customized solutions
- Wide range of poppet shapes, springs, and cover options
- Suitable for complex hydraulic control functions
- Compact and universally applicable valve design
- Short delivery times with no warehousing required

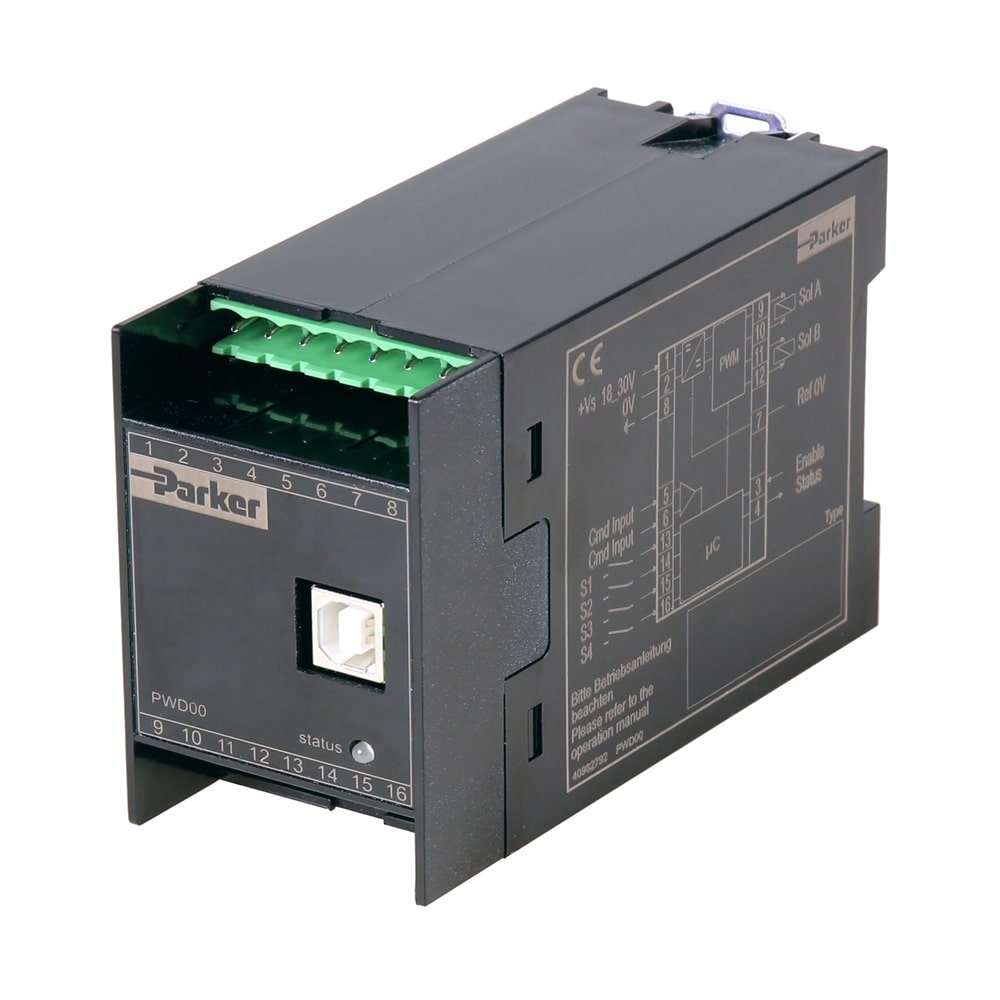

E-Module for Proportional Directional Control Valves – Series PWD00A-400
The PWD00A-400 Electronic Module for proportional directional control valves offers compact installation, simplified wiring, and precise valve control. Its digital circuit design ensures high accuracy and optimized proportional valve performance.
- Proven digital design for reliable operation
- Optimized performance for proportional directional valves
- Free PC software for easy parameter setting
- Four parameterizable command channels
- Constant current control and four-quadrant ramp function
- RS232C serial interface with disconnectable terminals
- EMC compliant to relevant European standards
- Short delivery times with no warehousing required
Pneumatic Manual Valve – HV Series
The HV Series Pneumatic Manual Valve is a rotary disc valve with a durable manual handle operator, designed for inline and surface-mounted pneumatic applications.
- 4/3 manual valve configuration
- Rotary manual handle operation
- Inline and surface mount installation
- Port sizes from 1/4" to 1/2" NPT
- Pressure range up to 150 psig (10 bar)
- Aluminum body with polyurethane seals
- Suitable for air applications with optional lubrication

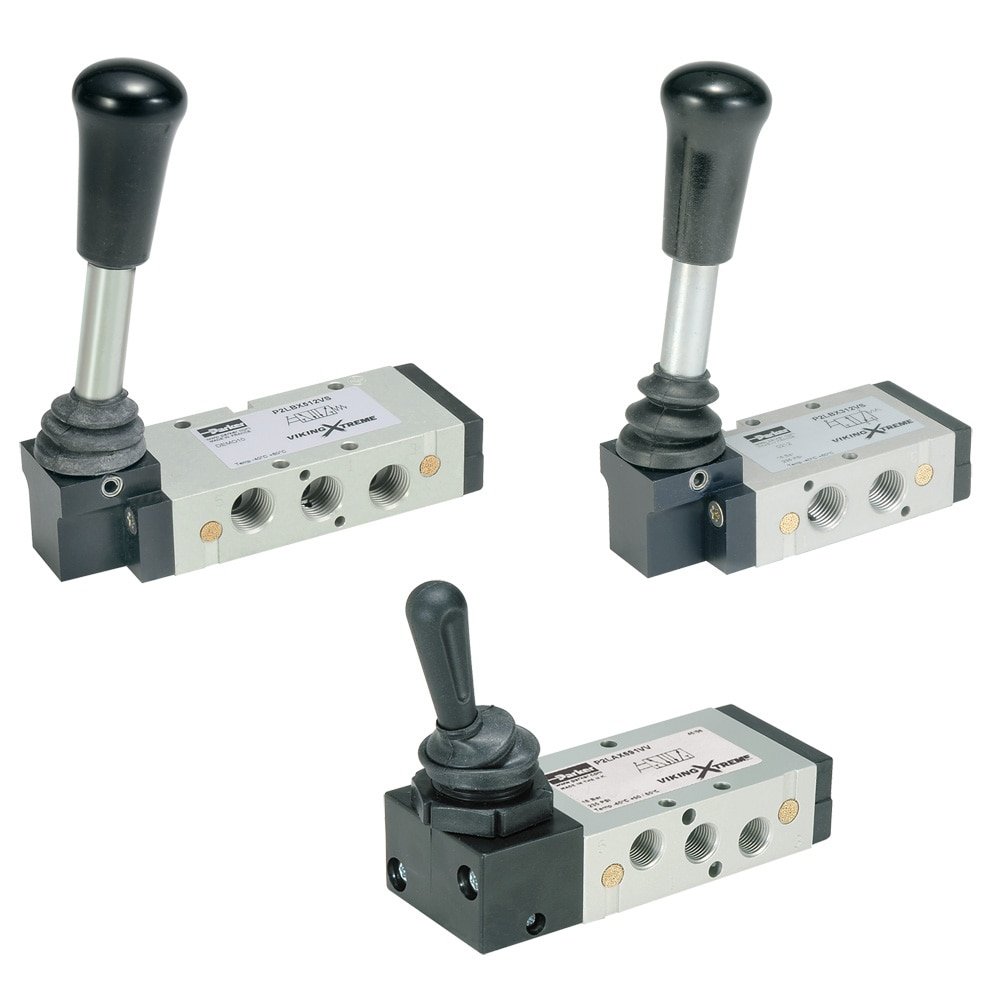

Pneumatic Manual Valve – Viking Xtreme Manual Series
The Viking Xtreme Manual Valve Series is built for harsh industrial and mobile environments. Featuring stainless steel components and rugged manual operators, it delivers reliable performance under high vibration and extreme temperatures.
- Available in 3/2, 5/2, and 5/3 functions
- Stainless steel manual handles for rugged applications
- Suitable for inline and surface mounting
- Pressure range from vacuum to 232 psig (16 bar)
- Temperature range from -40°F to 140°F
- IP65, CE, and RoHS certified
- High resistance to salt spray and vibration

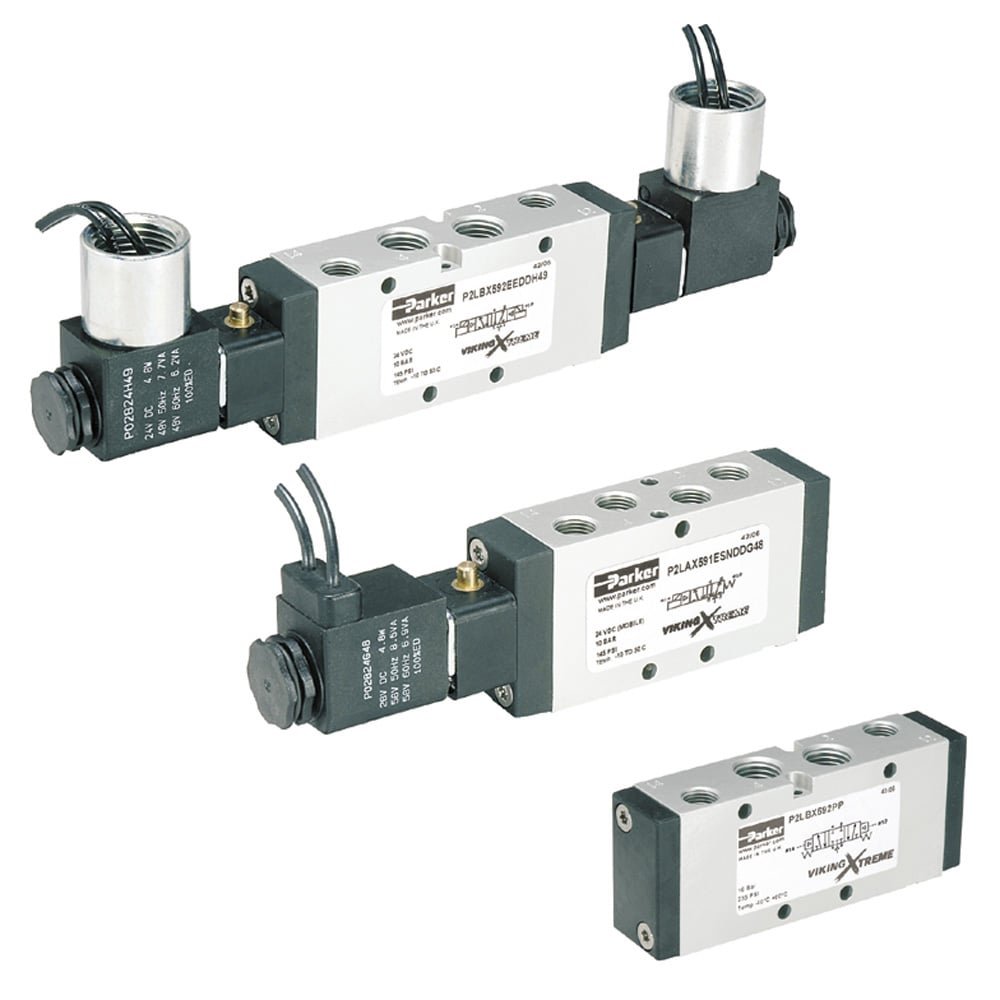

Pneumatic Solenoid Valve – Viking Xtreme Series
The Viking Xtreme Solenoid Valve Series combines compact installation with high pneumatic performance for industrial and mobile applications. It supports inline or manifold mounting for flexible installation.
- Available in 3/2, 5/2, and 5/3 configurations
- Solenoid air and remote pilot operated
- Inline, NAMUR, and manifold mounting options
- Voltage range from 12VDC to 240VAC
- IP65, CE, ATEX, and hazardous duty approvals
- High vibration and salt spray resistance
- Power consumption from 2.5W to 7.3W

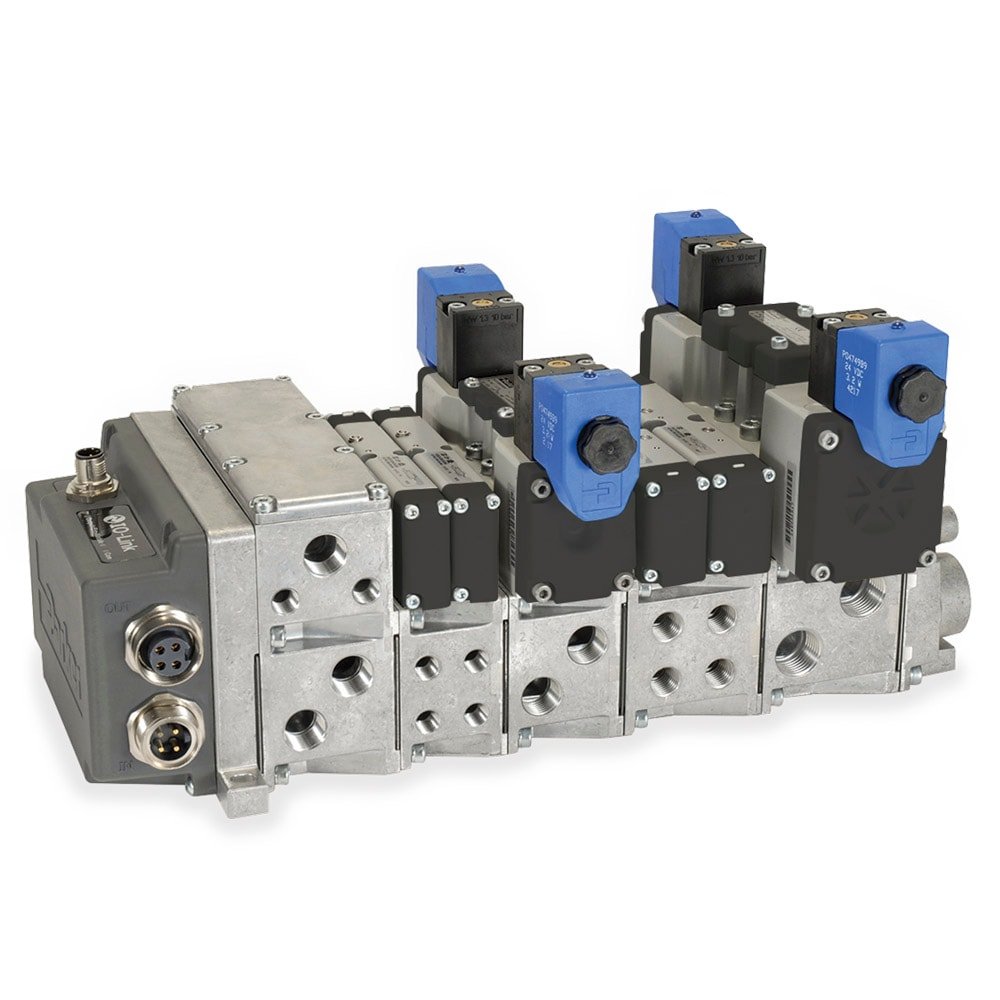

Pneumatic Solenoid ISO Valve – H Series ISO 15407-1 & 15407-2
The H Series ISO Pneumatic Solenoid Valve is an air-piloted subbase valve designed for industrial automation systems requiring ISO-compliant pneumatic control.
- Available in dual 3/2, 5/2, and 5/3 functions
- ISO 15407-1 and 15407-2 compliant mounting
- Multiple industrial network communication options
- Suitable for manifold installations up to 32 stations
- IP65 and NEMA 4 rated
- Voltage range from 24VDC to 120VAC

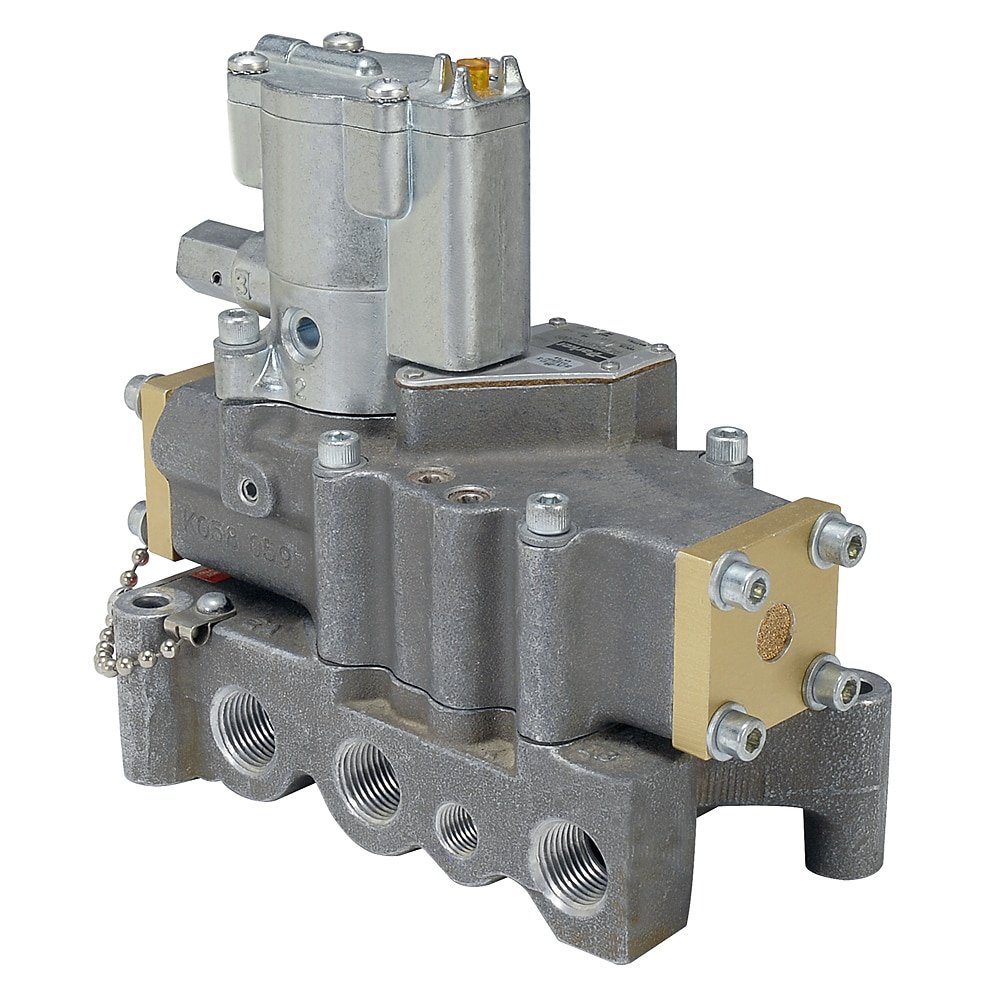

Pneumatic Solenoid Valve – Valvair II Series
The Valvair II Pneumatic Solenoid Valve is designed for demanding industrial environments including steel mills and aggregate plants. It offers high flow capacity and flexible mounting options.
- Available in 5/2 and 5/3 valve functions
- Inline, manifold, and subbase mounting options
- Flow capacity up to 12 Cv
- Pressure range up to 250 psig (17 bar)
- Suitable for non-lube operation
- Hazardous duty and NEMA 4 options available
- Optional sandwich regulators for pressure control

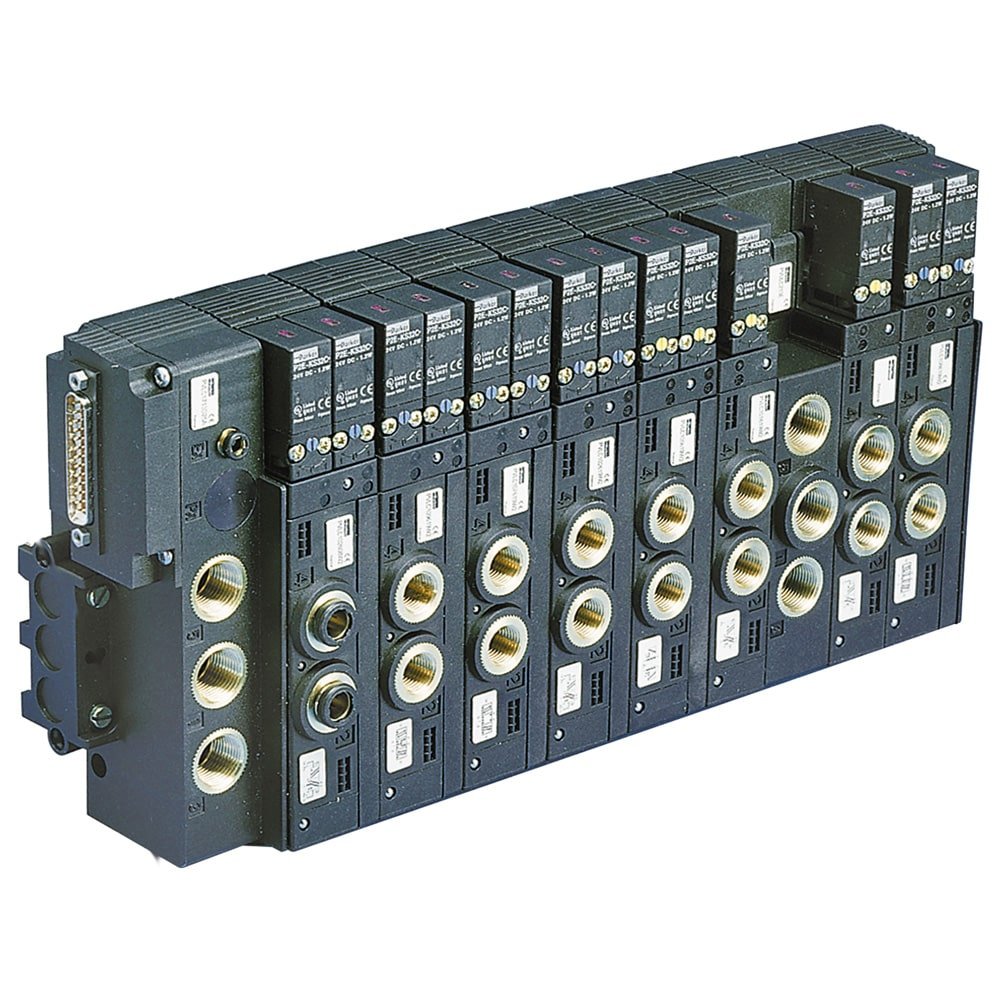

Pneumatic Manual Valve – PVL Series E
The PVL Series E Pneumatic Valve is an inline or stacking-style valve available in solenoid or air pilot configurations for flexible pneumatic control applications.
- Available in 5/2 and 5/3 configurations
- Inline and stacking mounting options
- Flow capacity up to 1800 l/min
- Voltage range from 12VDC to 240VAC
- UL and IP65 certified
- Pre-lubricated design for reliable performance

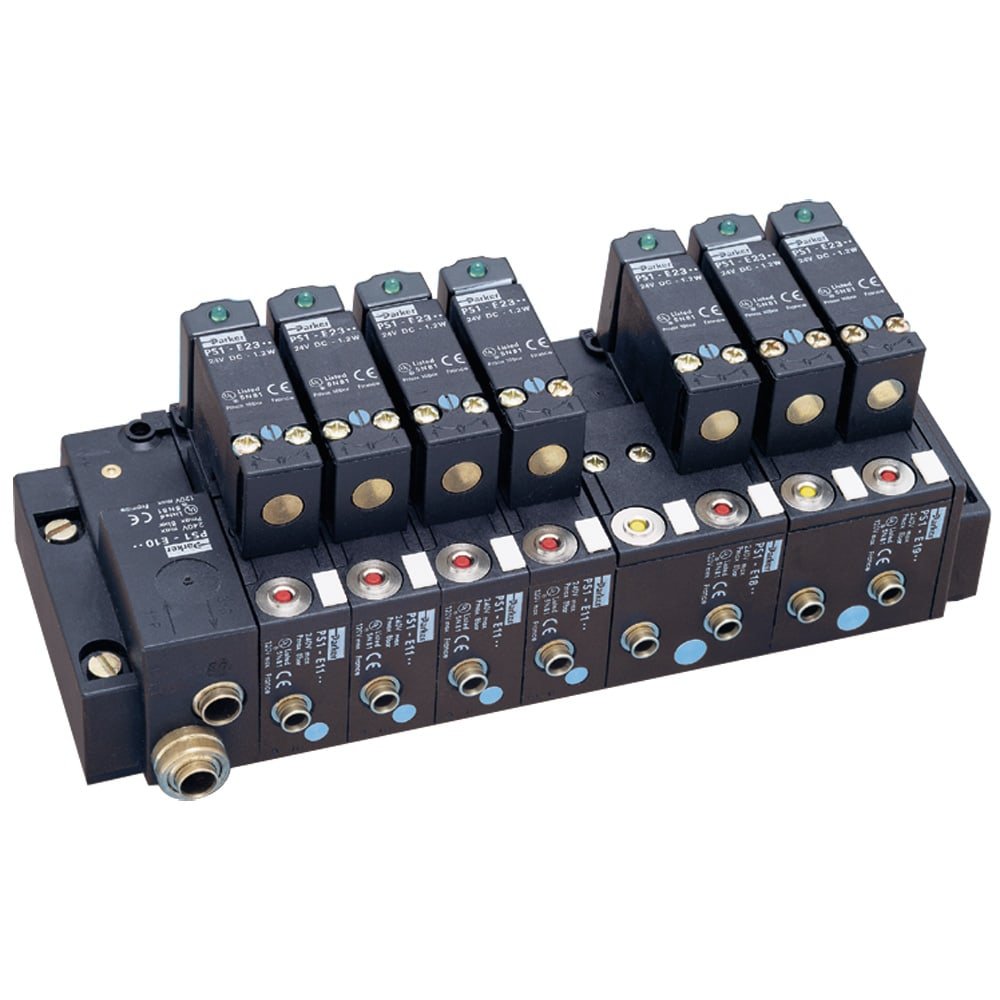

Pneumatic Solenoid Valve – PS1E Series
The PS1E Series Pneumatic Solenoid Valve is a stacking-style valve with plug-in coils designed for compact pneumatic systems and reliable pilot operation.
- Available in 3/2 and 5/2 functions
- Stacking design with no manifold station limit
- Plug-in coil configuration with LED suppressor options
- Pressure range from 40 to 120 psig
- IP65 rated for industrial environments
- Suitable for lubricated and non-lubricated air

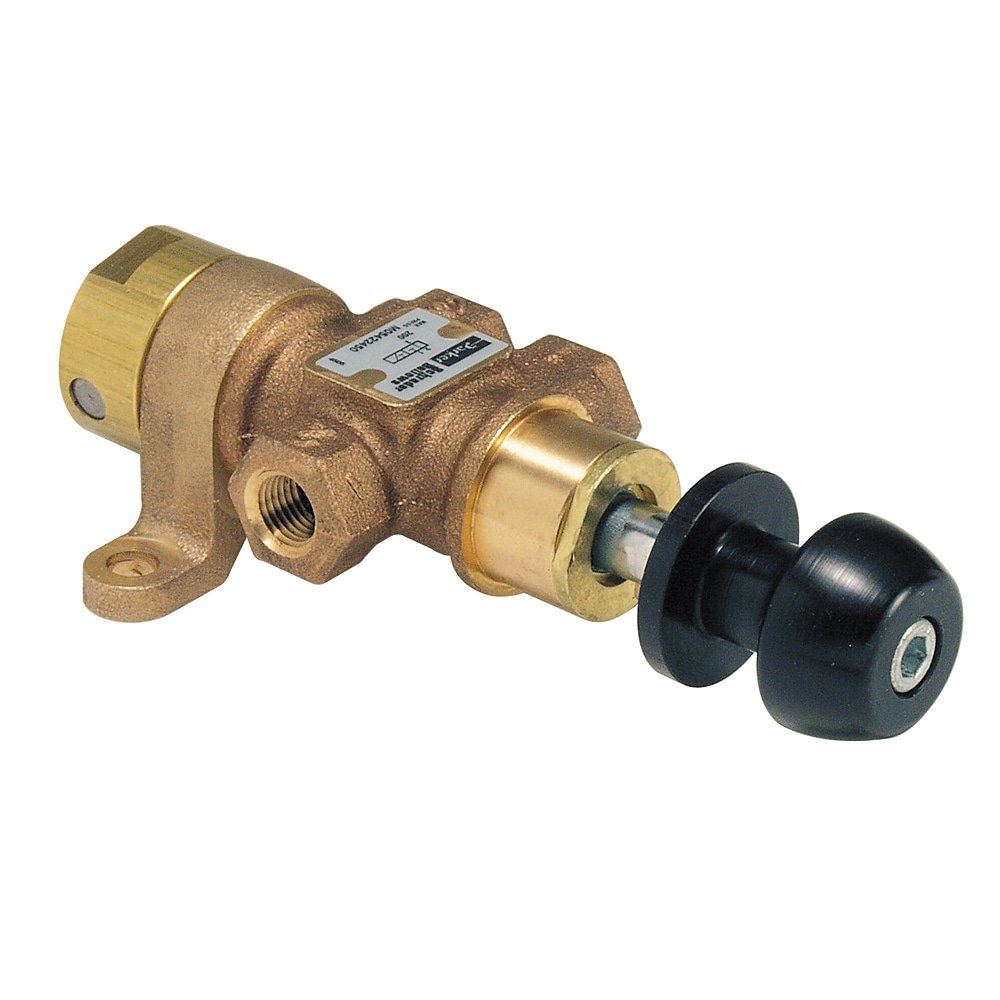

Pneumatic Manual Valve – M0 Series
The M0 Series Pneumatic Manual Valve is a rugged inline mechanical valve designed for air, inert gas, and low-pressure oil applications. It supports multiple manual and pilot-operated configurations.
- Available in 3/2, 4/2, and 4/3 functions
- Multiple manual operators including lever, pedal, and cam
- Pressure range up to 225 psig (15 bar)
- Bronze body with stainless steel hard chrome plated spools
- Suitable for air, inert gases, and medium aniline oils
- Closed transition spool design reduces crossover leakage
