GST® II – General Service Hose
The GST® II General Service Hose is a versatile solution for air, water, and mild chemical applications. Built with a durable EPDM tube and textile reinforcement, it ensures flexibility, strength, and reliable performance in industrial environments.
• Agriculture, construction, general industrial

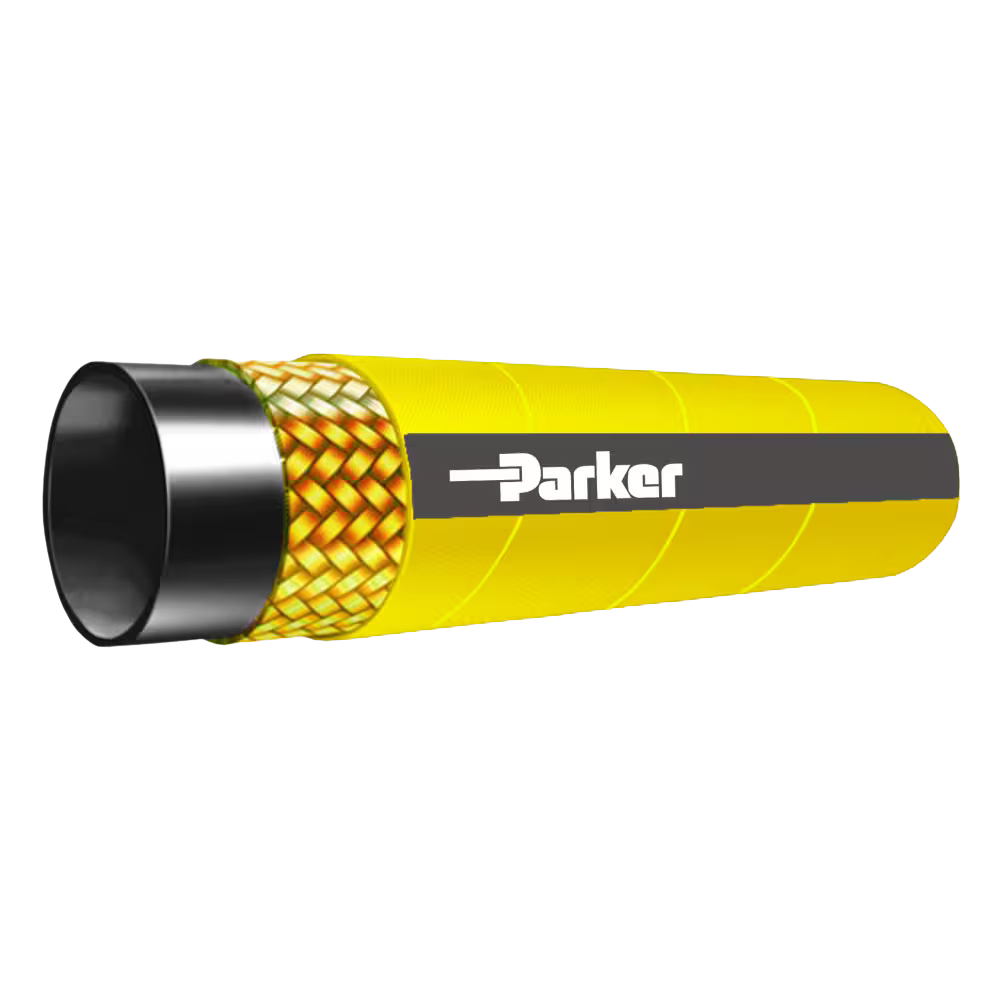

AIRMASTER
AIRMASTER air hose is designed for high-pressure rock drilling and pneumatic applications. Ideal for use in quarries, construction, and industrial environments, it ensures durability and consistent performance.
PNEUMATIC TOOL HOSE
The pneumatic tool hose is built for reliable performance in air-powered tools and industrial applications. Designed for flexibility and durability, it ensures efficient air flow in demanding environments.
| Part Number |
Hose I.D | Hose O.D mm |
Working Pressure |
Minimum Bend Radius |
|||
|---|---|---|---|---|---|---|---|
| inch | mm | psi | MPa | inch | mm | ||
| AHPM-4PM | 1/4 | 6.4 | 12.7 | 200 | 1.38 | - | - |
| AHPM-5PM | 5/16 | 7.9 | 14.3 | 200 | 1.38 | - | - |
| AHPM-6PM | 3/8 | 10.0 | 16.7 | 200 | 1.38 | - | - |
| AHPM-8PM | 1/2 | 12.5 | 20 | 200 | 1.38 | 4.92 | 125 |
| AHPM-12PM | 3/4 | 19 | 28.5 | 200 | 1.38 | 7.09 | 180 |
| AHPM-16PM | 1 | 25.4 | 33.5 | 200 | 1.38 | 11.81 | 300 |
Air / Water Hose
The air and water hose is designed for reliable performance in industrial, construction, and general-purpose applications. It offers flexibility, durability, and efficient fluid transfer.
| Part Number |
Hose I.D | Hose O.D mm |
Working Pressure |
Minimum Bend Radius |
|||
|---|---|---|---|---|---|---|---|
| inch | mm | psi | MPa | inch | mm | ||
| WHPM-8PM | 1/2 | 12.5 | 20 | 170 | 1.17 | 4.92 | 125 |
| WHPM-12PM | 3/4 | 19 | 28.5 | 170 | 1.17 | 7.09 | 180 |
| WHPM-16PM | 1 | 25.4 | 35.5 | 170 | 1.17 | 11.81 | 300 |
LPG Hose
The LPG hose is designed for safe and efficient transfer of liquefied petroleum gas (LPG) in both liquid and vapour form. Suitable for industrial and automotive use, it ensures reliable performance between operations.
| Part Number |
Hose I.D | Hose O.D mm |
Working Pressure |
Minimum Bend Radius |
|||
|---|---|---|---|---|---|---|---|
| inch | mm | psi | MPa | inch | mm | ||
| WHPM-8PM | 1/2 | 12.5 | 20 | 170 | 1.17 | 4.92 | 125 |
| WHPM-12PM | 3/4 | 19 | 28.5 | 170 | 1.17 | 7.09 | 180 |
| WHPM-16PM | 1 | 25.4 | 35.5 | 170 | 1.17 | 11.81 | 300 |
Fuel Dispensing Hose – I
The fuel dispensing hose is designed for safe and efficient fuel transfer applications. ATEX approved, it ensures reliable performance in hazardous environments such as fuel stations and industrial setups.
| Part Number |
Hose I.D | Hose R.O.D mm |
Hose O.D mm |
Working Pressure |
Minimum Bend Radius |
Approx. Weight |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | psi | MPa | inch | mm | lbs/ft | kg/m | |||
| BSPHPM-10PM BLACK | 5/8 | 16.0 | - | 25.3 | 232 | 1.6 | 3.0 | 80 | 0.36 | 0.53 |
| BSPHPM-12PM BLACK | 3/4 | 19.0 | 24.2 | 26.4 | 232 | 1.6 | 4.0 | 100 | 0.38 | 0.56 |
| BSPHPM-14PM BLACK | - | 21.0 | - | 28.5 | 232 | 1.6 | 5.0 | 125 | 0.44 | 0.65 |
| BSPHPM-16PM BLACK | 1 | 25.4 | 30.2 | 32.5 | 232 | 1.6 | 6.0 | 150 | 0.48 | 0.71 |
