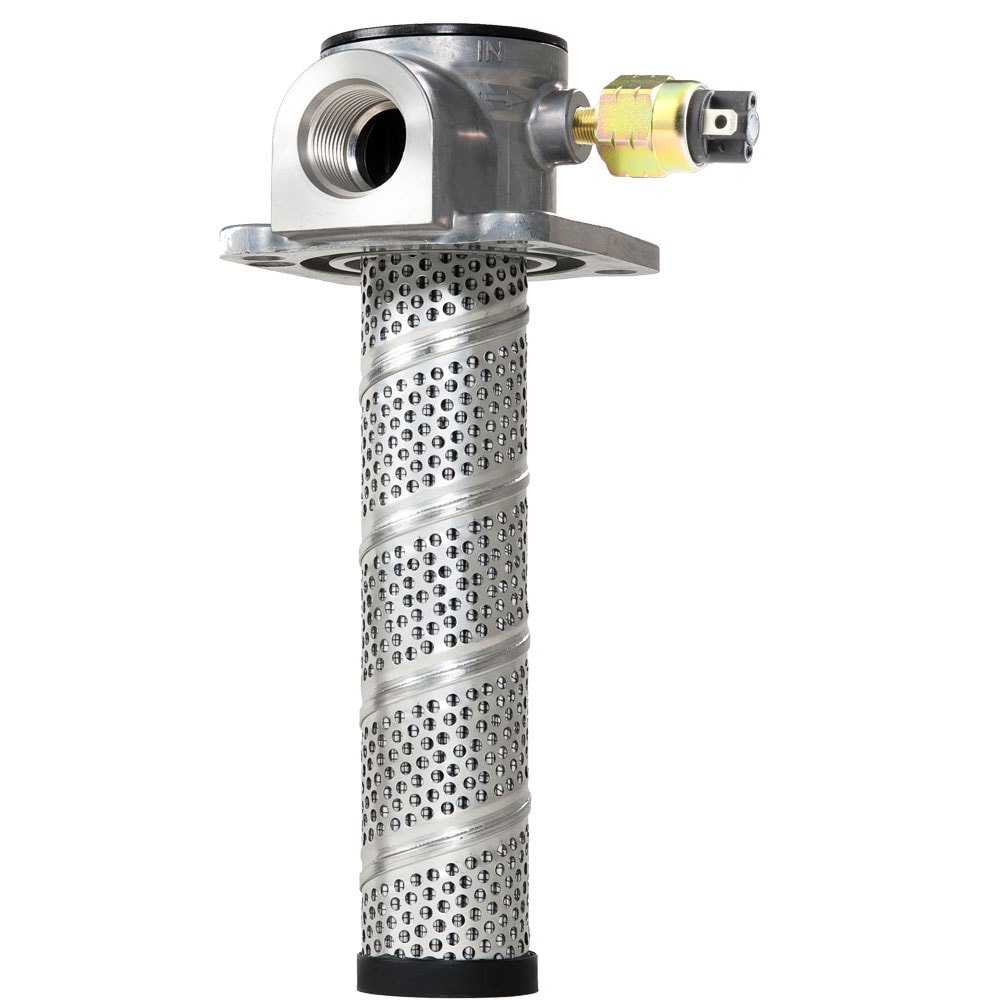

Low Pressure Tank Top Filters – PT Series
The Parker PT Series Low Pressure Return Line Filters provide an economical solution for high-quality tank top mounted filtration. Designed with a compact, space-saving structure, the PT Series ensures reliable filtration performance while offering modularity, durability, and cost efficiency.
- Compact, low-profile design reduces weight and installation costs
- Patented screw-in filter element assembly allows easy maintenance and removal
- Unique top end cap design supports high flow capacity with low working pressure
- Durable and lightweight cast aluminum head construction
- In-to-out filtration design prevents system recontamination during servicing
- Disposable filter cartridge enables quick and simple replacement
- Premium Microglass III media delivers superior dirt holding capacity and filtration efficiency
- Downstream element design minimizes system aeration
- Integrated bypass valve ensures reliable performance and extended element life

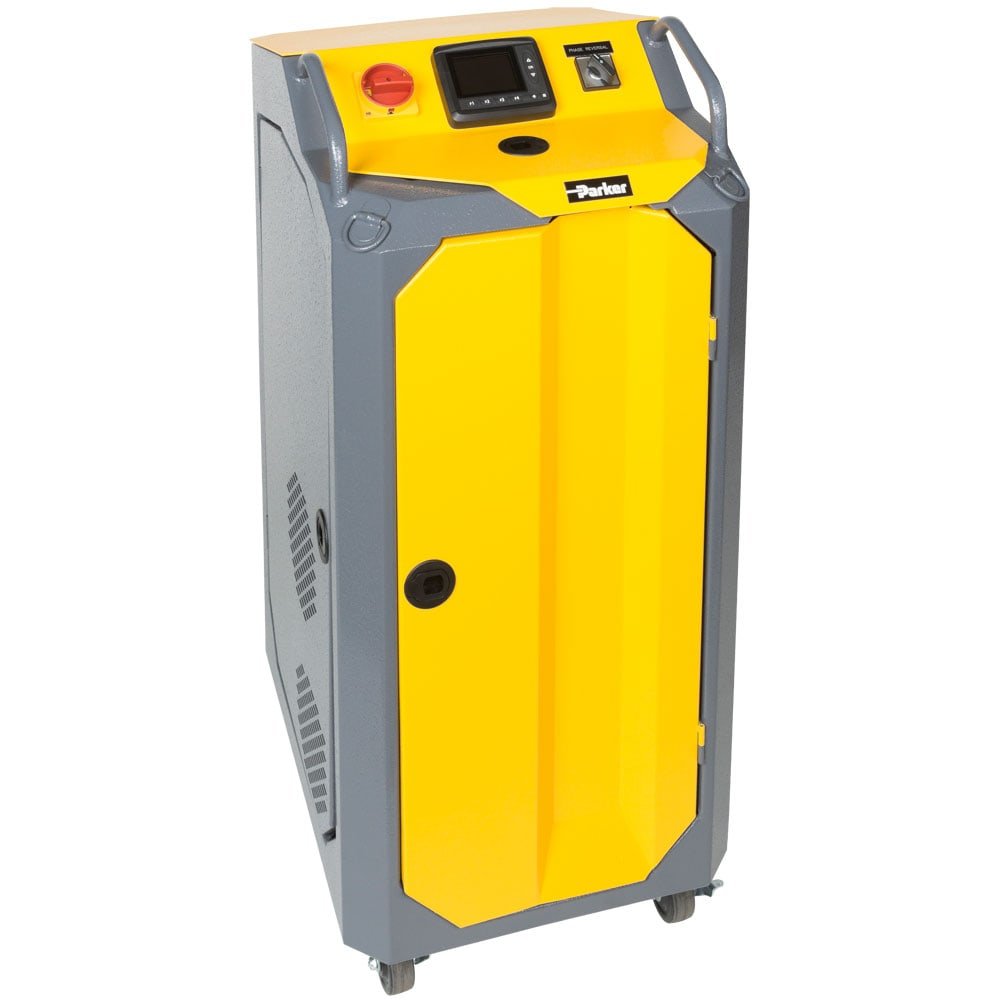

Sentinel Compact Oil Purifier
The Parker Sentinel Compact Oil Purifier is designed for on-site hydraulic oil purification where contamination issues exceed standard preventive maintenance requirements. Its compact and lightweight design makes it ideal for portable fluid purification applications while improving hydraulic system cleanliness and reducing downtime.
- Compact and lightweight portable design
- Fully automatic operation for user convenience
- Integrated desiccant breather for moisture control
- 316 stainless steel construction for enhanced durability
- Reverse phase switch for operational flexibility
- Ecoglass particulate filtration element
- Diffusion head/manifold for efficient fluid processing
- Forklift guides and lifting eyes for easy transportation

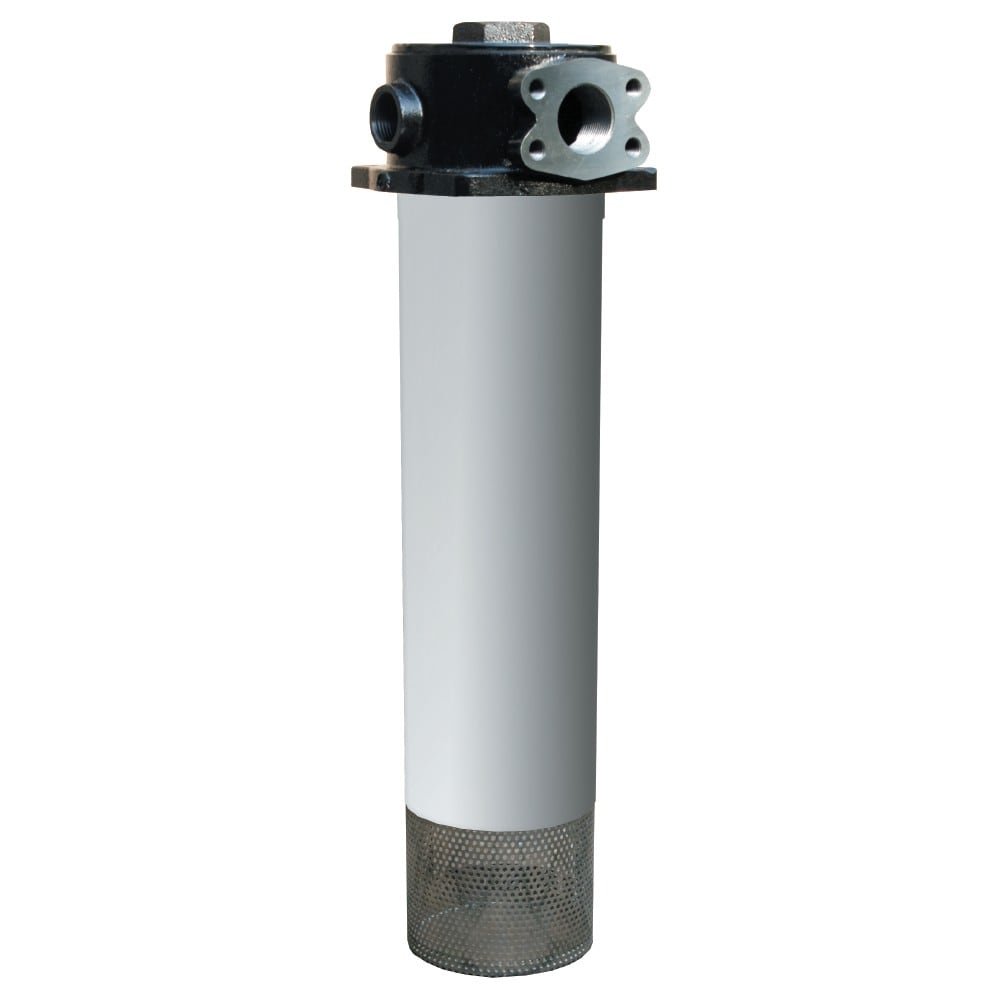

Tanktop Mounted Return Line Filter – STF Series
The Parker STF Series Return Line Filters are tank top mounted filters designed for marine and industrial applications where aluminum use is restricted. The cast iron head assembly and in-to-out filtration design ensure reliable contamination control and system protection.
- In-to-out filtration prevents contaminants from re-entering the system
- Magnetic pre-filtration improves contamination removal
- Durable cast iron filter head assembly
- Multiple port configurations available
- Optional airtight diffusers prevent air ingress
- LEIF® low environmental impact filter elements included as standard

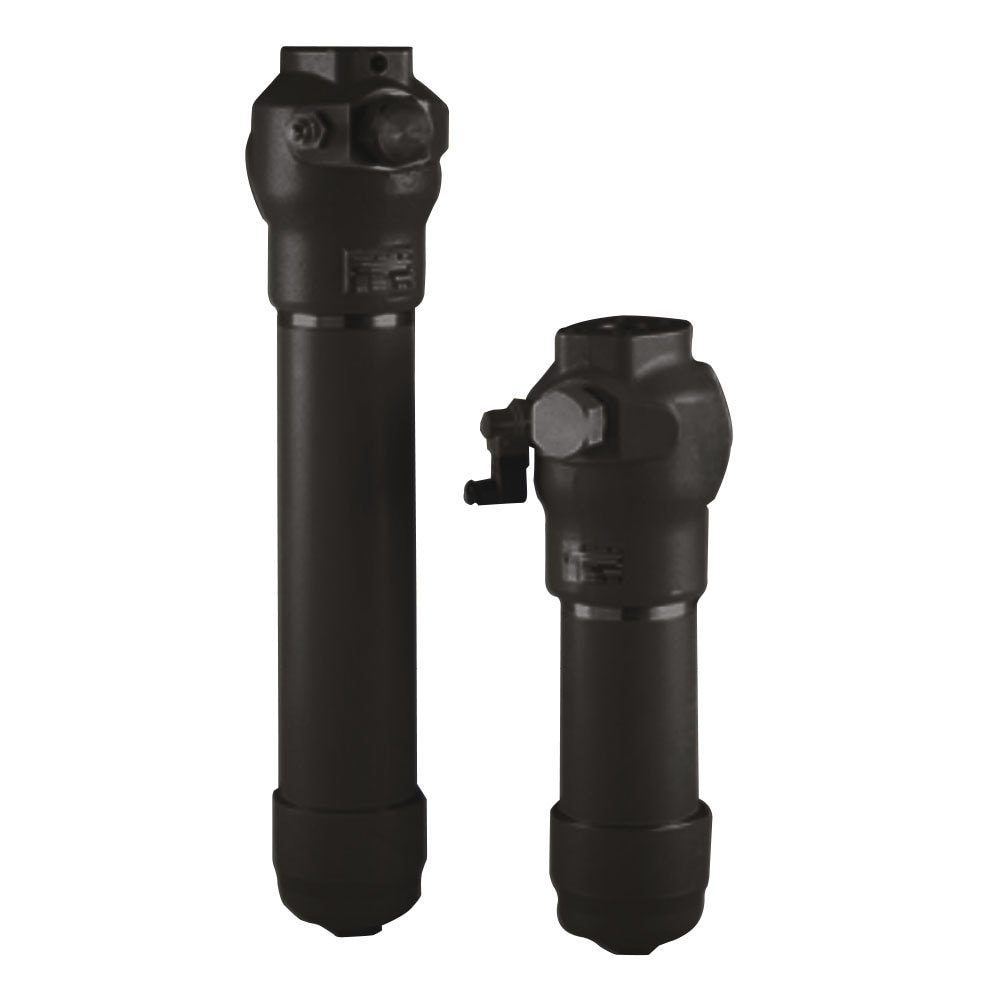

High Pressure In-Line Filter – 100P Series
The Parker 100P Series High Pressure Filters are engineered for demanding hydraulic applications requiring high flow capacity and compact installation. Designed for operating pressures up to 414 bar, the 100P Series offers efficient contamination control and easy servicing.
- Compact design allows element replacement by removing only the bowl end cap
- Standard Microglass III glass fiber filtration media
- Optional reverse flow valve prevents contamination backwash
- Ideal for installations with limited space

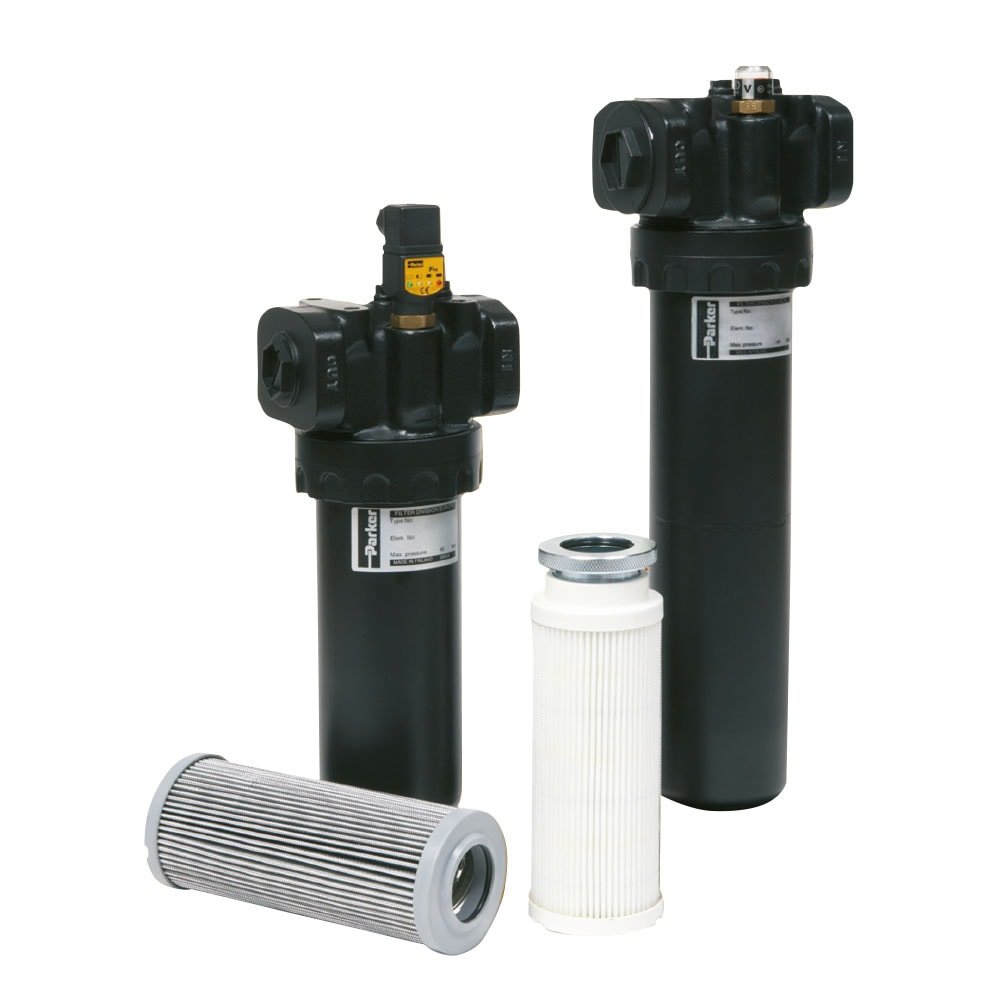

Medium Pressure In-Line Filter – 45M Series
The Parker 45M Series Medium Pressure Filters provide reliable protection for hydraulic components operating at lower pressures. Featuring a rugged cast iron and steel construction, these filters are suitable for harsh industrial environments.
- Cast iron head with durable steel bowl construction
- Designed for lower pressure hydraulic system protection
- ECO Series elements reduce disposal waste by over 50%
- Quick and easy element replacement design

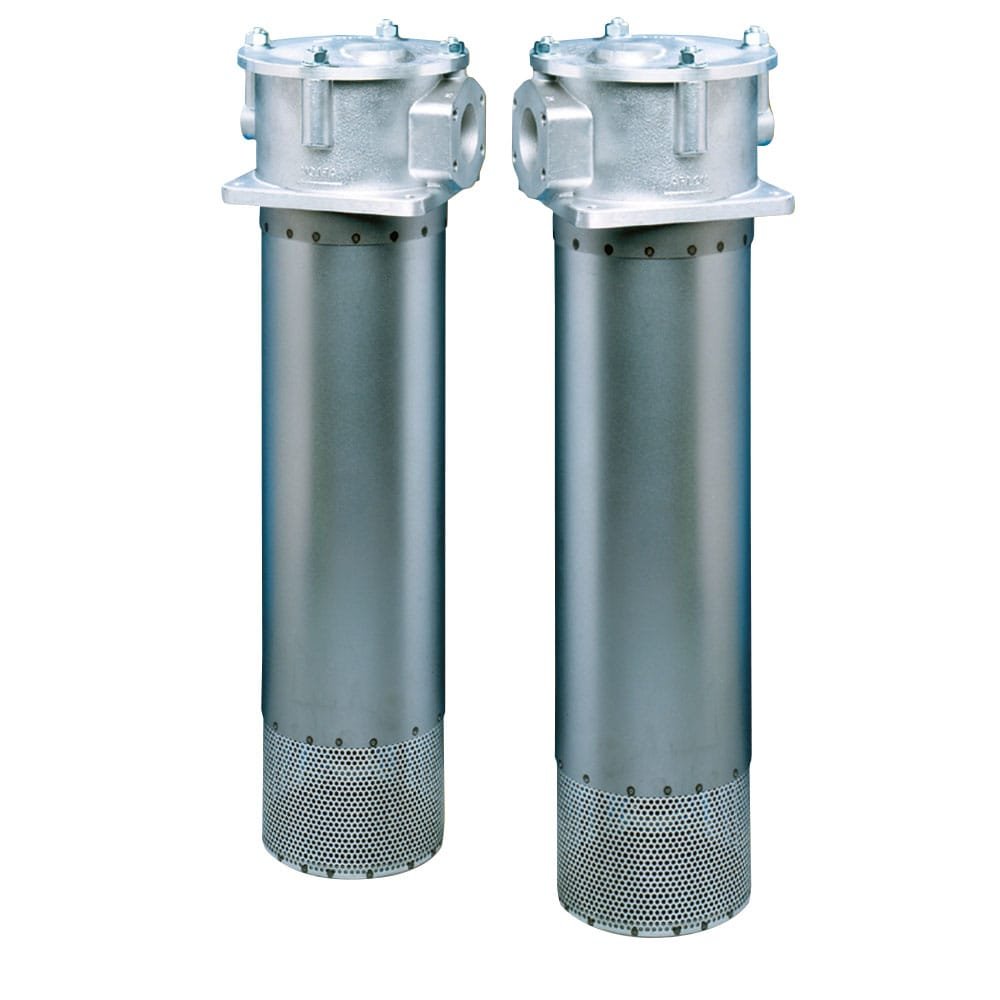

Tanktop Mounted Return Line Filter – BGT Series
The Parker BGT Series Return Line Filters are designed for high-flow hydraulic systems and provide reliable tank top mounted filtration with advanced contamination protection features.
- Magnetic pre-filtration column for enhanced contaminant capture
- Multiple port filter head configurations available
- In-to-out filtration design prevents contamination re-entry
- Full flow bypass with low hysteresis
- Patented LEIF® environmentally friendly filter elements available

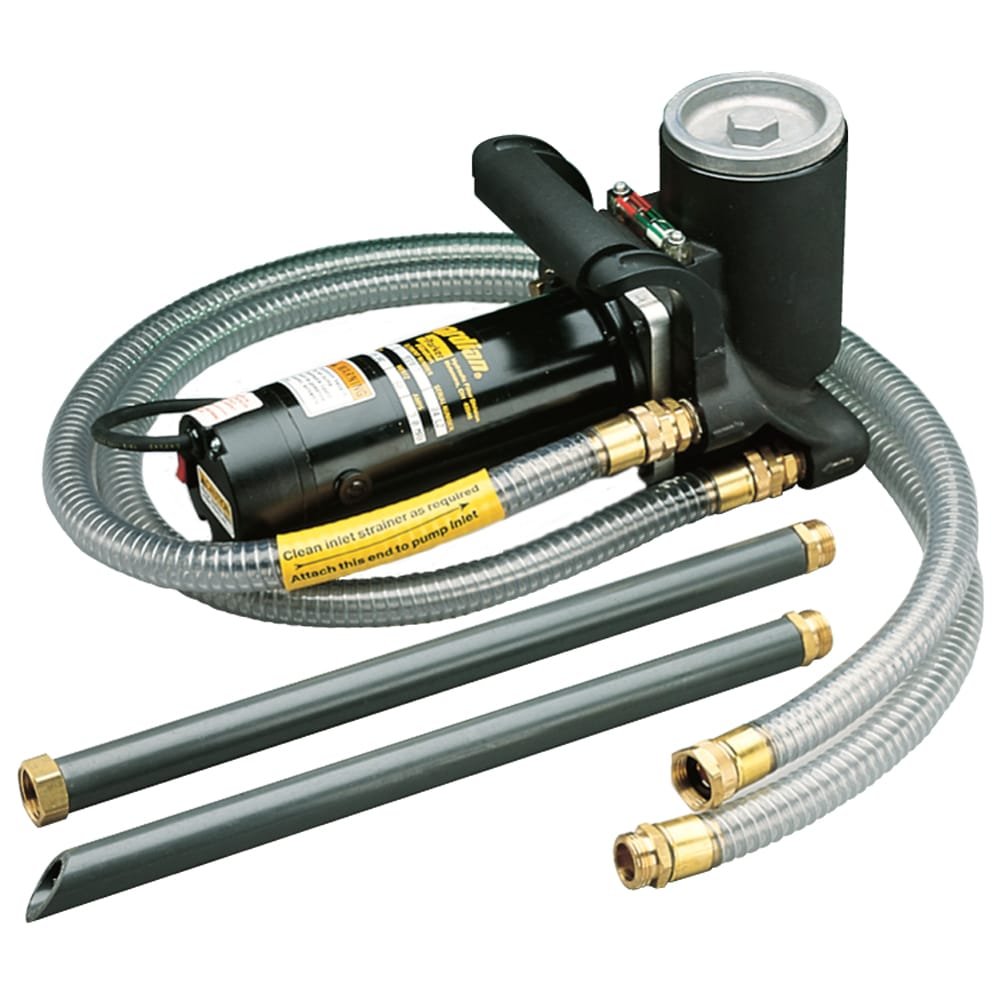

Portable Filtration System – Guardian Series
The Parker Guardian Series Portable Filtration System is a lightweight, hand-held filtration unit designed for easy fluid transfer and contamination control in difficult-to-access areas.
- Lightweight and compact design fits standard 55-gallon drums
- Single-person operation reduces labor requirements
- Simultaneous fluid transfer and filtration up to 4 GPM
- Handles fluid viscosities up to 16,000 SUS
- Built-in relief valve ensures only filtered fluid reaches downstream components
- Clear reinforced hose assemblies with wand attachments included
- Quiet operation below 70 dB
- Heavy-duty motor with thermal overload protection
- Gerotor pump with serviceable inlet strainer
- Auxiliary inlet and outlet ports for added flexibility

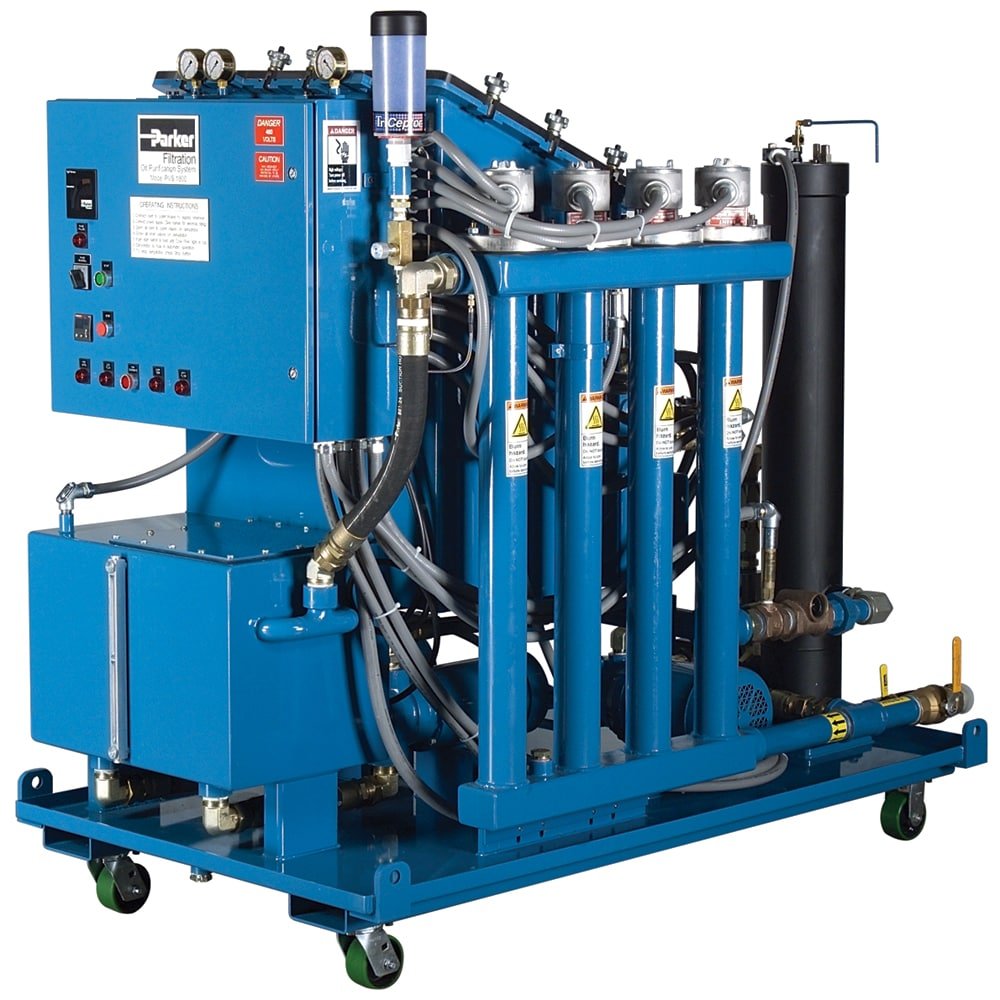

Portable Purification Systems – PVS Series
The Parker PVS Series Portable Purification Systems are designed to remove water contamination from hydraulic fluids, improving fluid performance and extending system life.
- Rapid oil heating improves water removal efficiency
- Real-time water saturation indication for monitoring
- Supports unattended continuous operation, designed for 24/7 use
- Corrosion-resistant construction
- Visible vacuum dehydration process
- Desiccant breather ensures dry intake air
- Easy motor rotation adjustment with phase reversal switch
- Safe lifting design for operator safety
- Suitable for a wide range of fluid viscosities

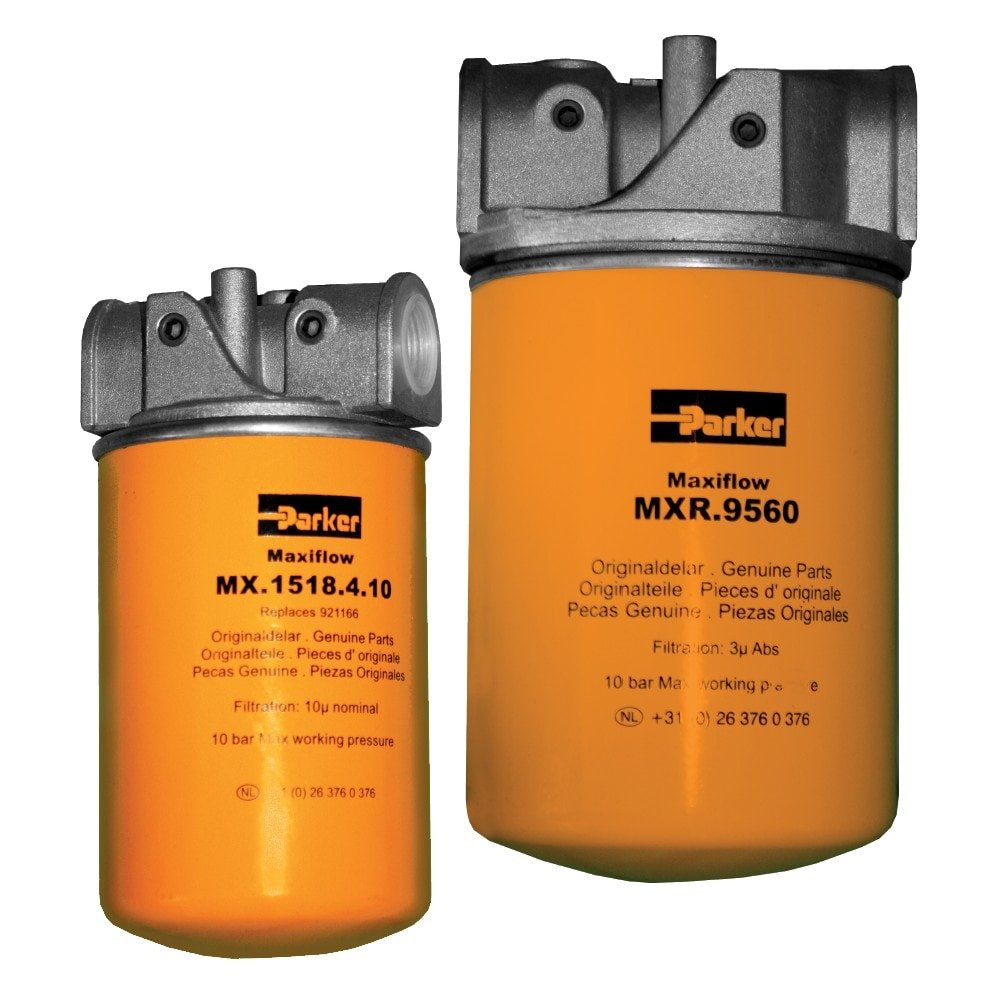

Low Pressure In-Line Spin-On Filter – Maxiflow Series
The Parker Maxiflow Series Spin-On Filters provide reliable hydraulic and lubrication system protection in mobile and industrial applications.
- Suitable for full flow and bypass installations
- High-quality filtration media for effective contamination control
- Optional clogging indicators available

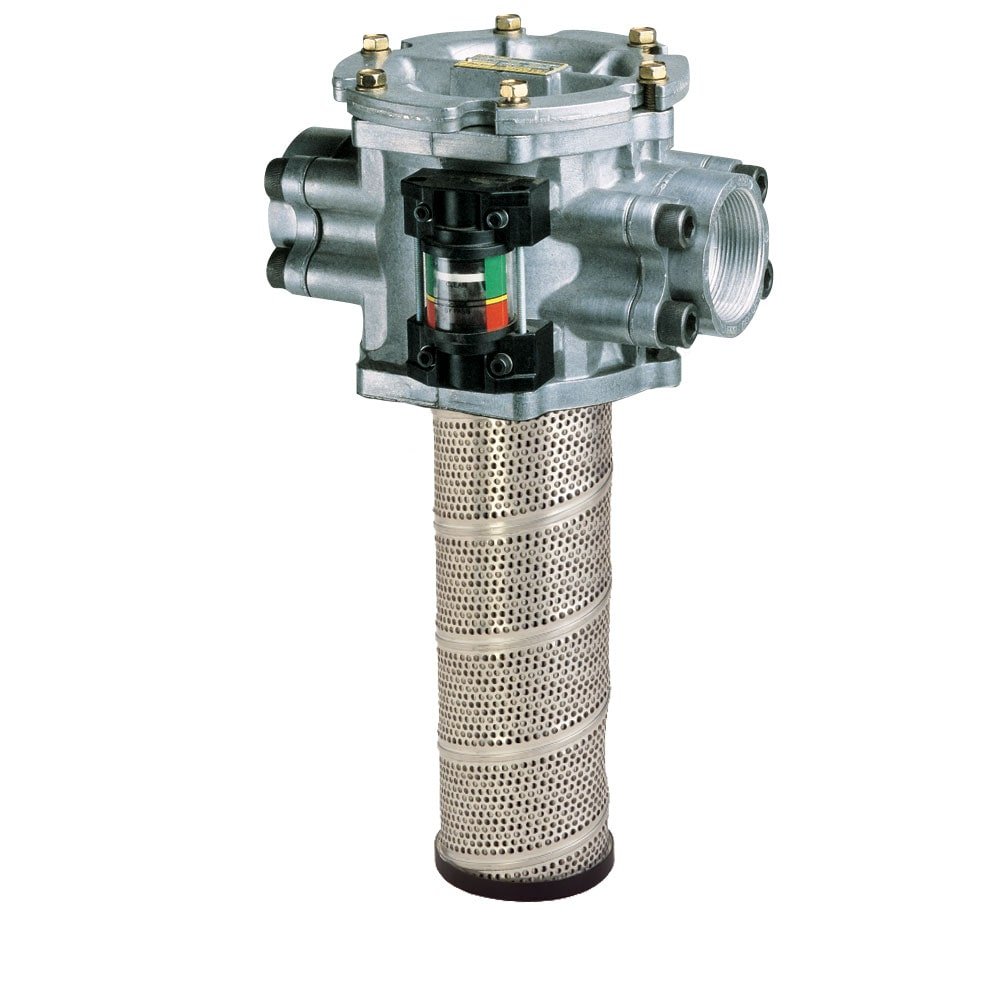

Low Pressure Tank Mounted Filter – Moduflow™ Plus Series
The Parker Moduflow™ Plus Series is a versatile low-pressure filtration solution designed for suction, return, and duplex applications in demanding hydraulic systems.
- Parker Tells-All indicator alerts when no element is installed
- Lightweight aluminum flanges simplify installation
- Integral 35 PSI bypass valve replaced during element change
- Durable steel bowl construction
- Top-access element servicing reduces spills and downtime
- Quick-release slotted cover design
- Closed-bottom elements prevent contamination during service
- Increased dirt holding capacity with lower pressure drop
- Five mounting and porting options for installation flexibility

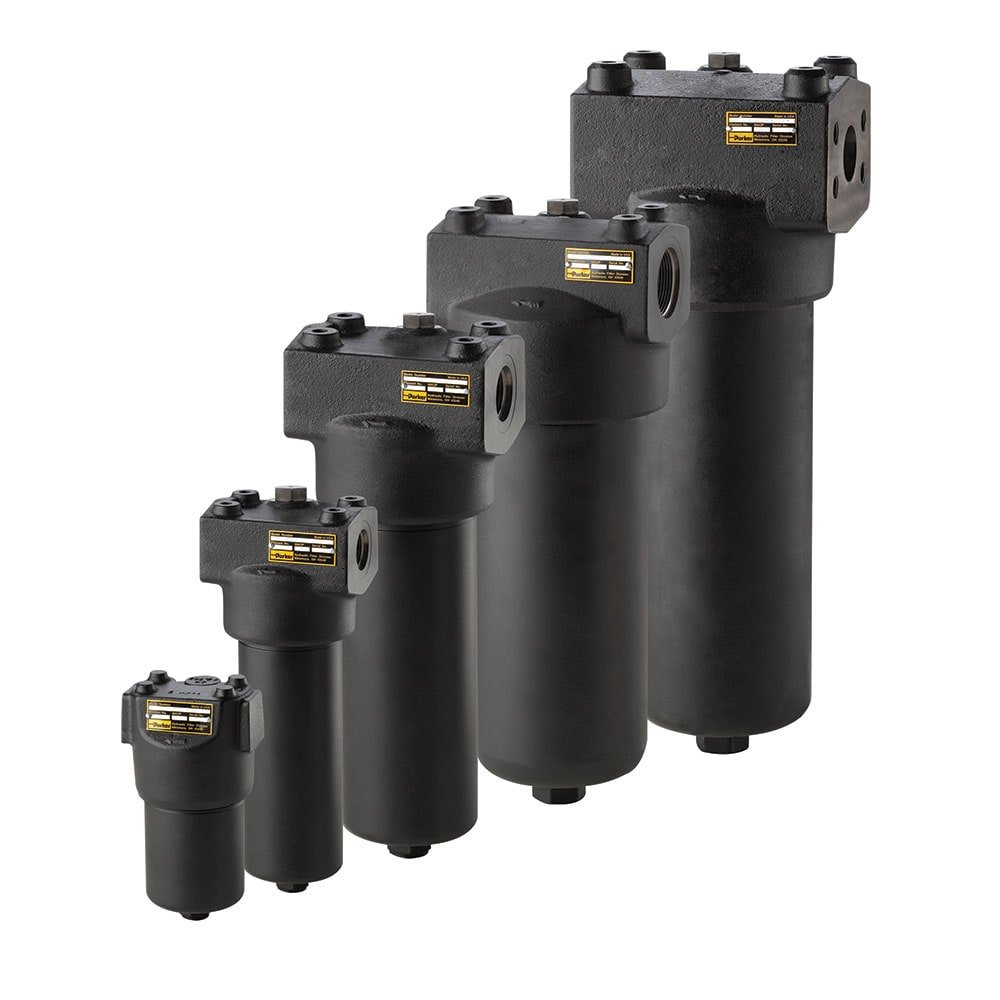

High Pressure Inline Filter – WPF Series
The Parker WPF Series High Pressure Filters are engineered to protect sensitive hydraulic components operating in modern high-pressure systems.
- High-strength ductile iron filter head and forged steel bowl with drain port
- Environmentally friendly Ecoglass non-metallic element design
- SurgeGuard element assembly with integrated bypass and reverse flow valves
- Quick-response bypass and reverse flow protection
- Patented flexible tangs for safe and clean element removal
- Coreless element assembly with reusable support core
- Low hysteresis patented valve technology

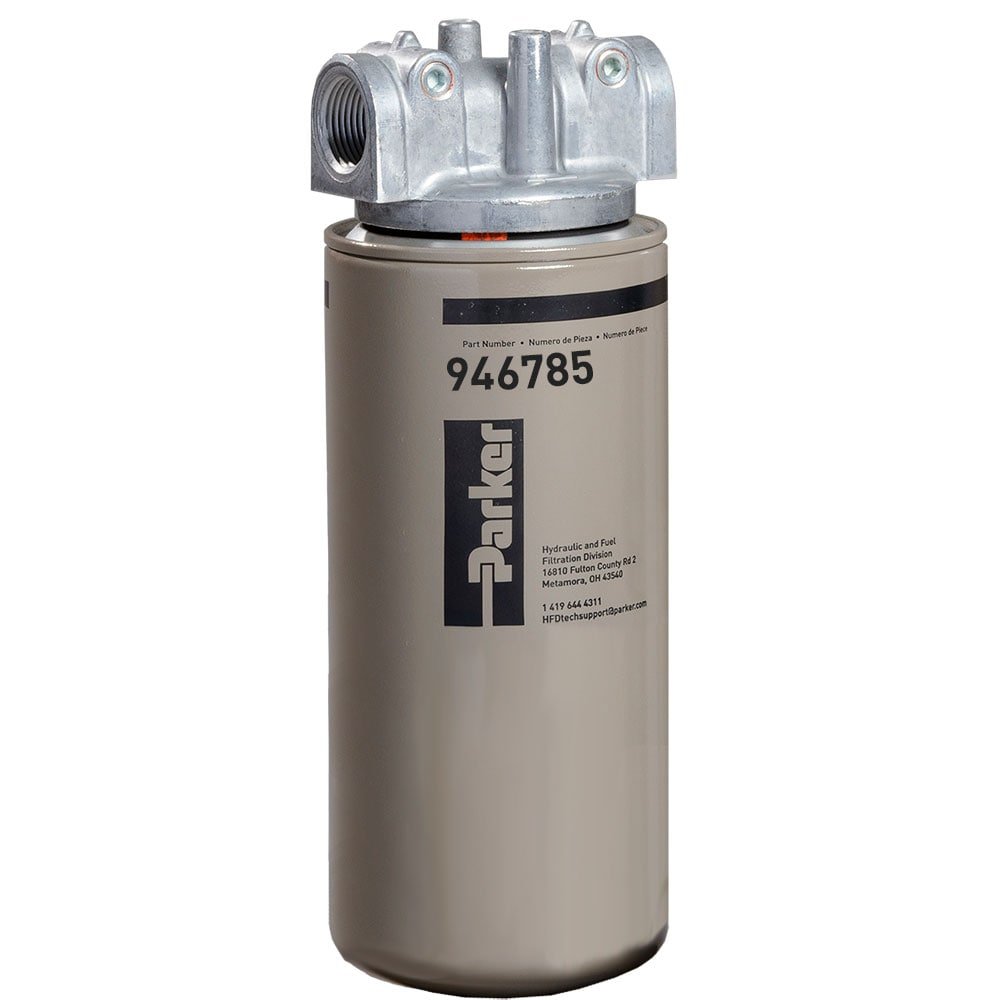

Low Pressure Spin-On Filters – 12AT/50AT Series
Parker 12AT/50AT Series Spin-On Filters provide economical and dependable filtration for mobile and industrial equipment applications.
- Mobile equipment
- Hydrostatic drives
- Industrial power units
- Reservoir breathers

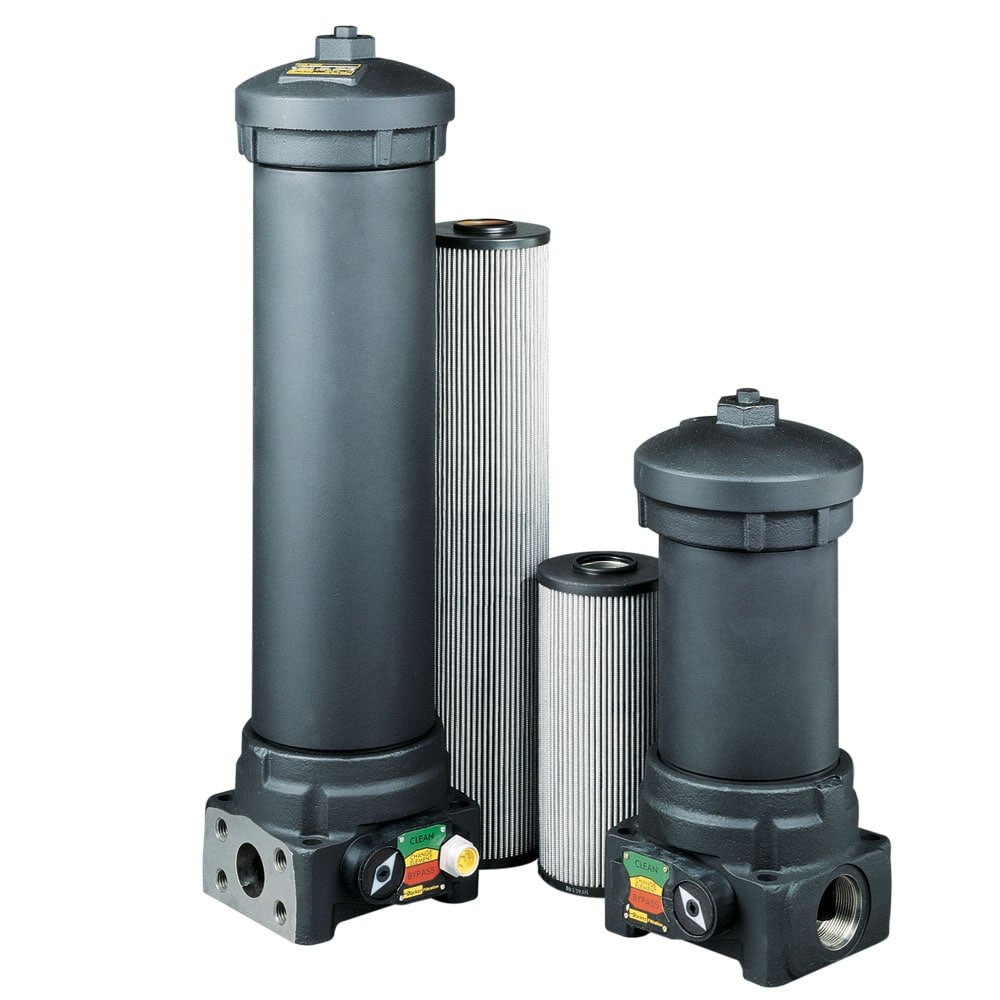

High Pressure Inline/Reverse Flow Filter – 50P Series
The Parker 50P Series High Pressure Filters are designed for demanding hydraulic systems requiring reliable contamination control and reverse flow protection.
- Meets SAE HF4 automotive specifications
- Positive O-ring sealing for maximum efficiency
- Corrosion-resistant laser-marked components
- Spiral support cylinders for strength and durability
- Continuous length elements reduce leak points
- Base-mounted design eliminates additional brackets
- Top-access cover simplifies servicing
- Visual and electrical clogging indicators available
- Multi-layer media with wire-reinforced pleats for consistent performance

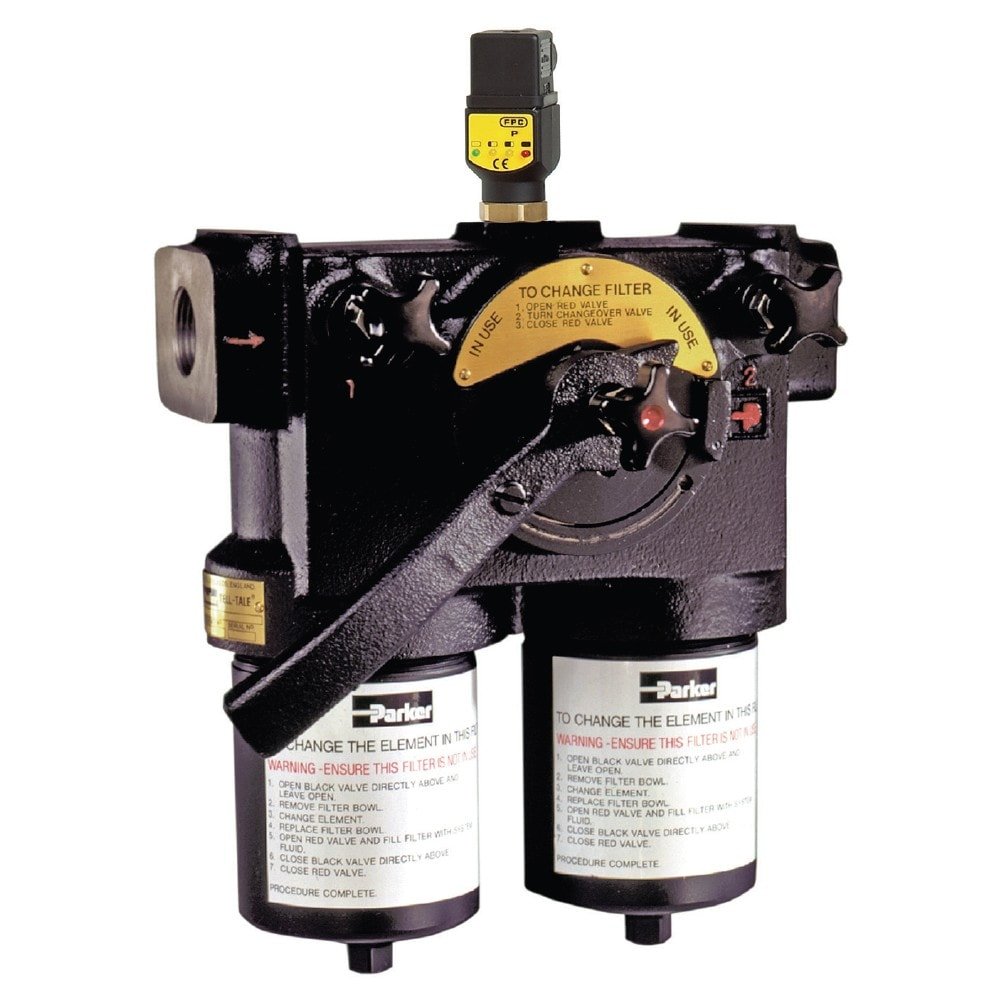

High Pressure In-Line Duplex Filter – 22PD-32PD Series
The Parker 22PD-32PD Series Duplex Filters are designed for continuous hydraulic system operation during filter element replacement.
- Duplex filter design with integrated balancing valve and vent ports
- Continuous filtration during element change
- Standard Microglass III glass fiber media

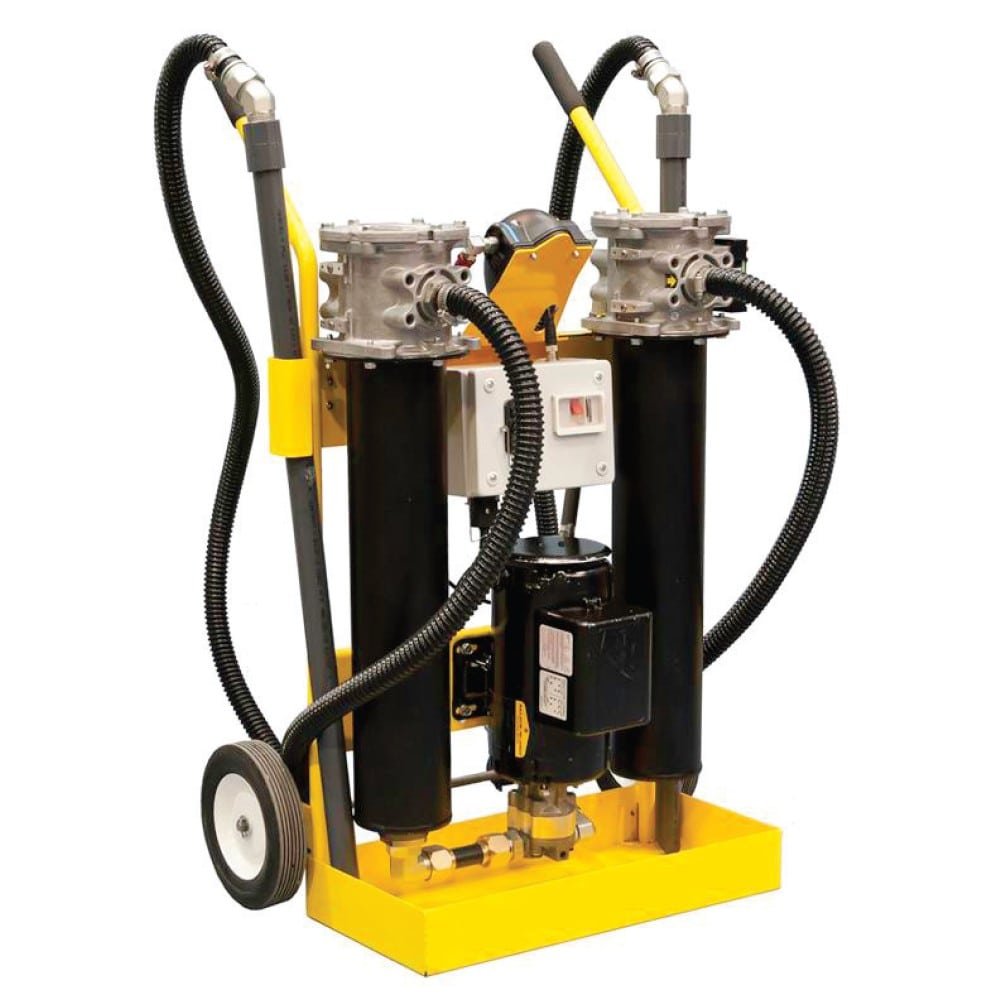

Portable Filtration Cart / Trolley – 10MFP Series
The Parker 10MFP Series Portable Filtration Cart is designed for filtering and conditioning hydraulic fluids before system use, helping reduce contamination-related failures and downtime.
- Includes hand and lance assembly
- Top-access service cover for quick element changes
- Flexible kink-resistant hoses prevent pump cavitation
- Visual clogging indicator included
- Heavy-duty industrial frame and AC motor with thermal overload protection
- Dual two-stage filters provide high dirt holding capacity
- Industrial-quality gear pump
- Integrated drip tray for cleaner operation
- Optional Parker icountPD particle counter available
