General Purpose Hydraulic Cylinders

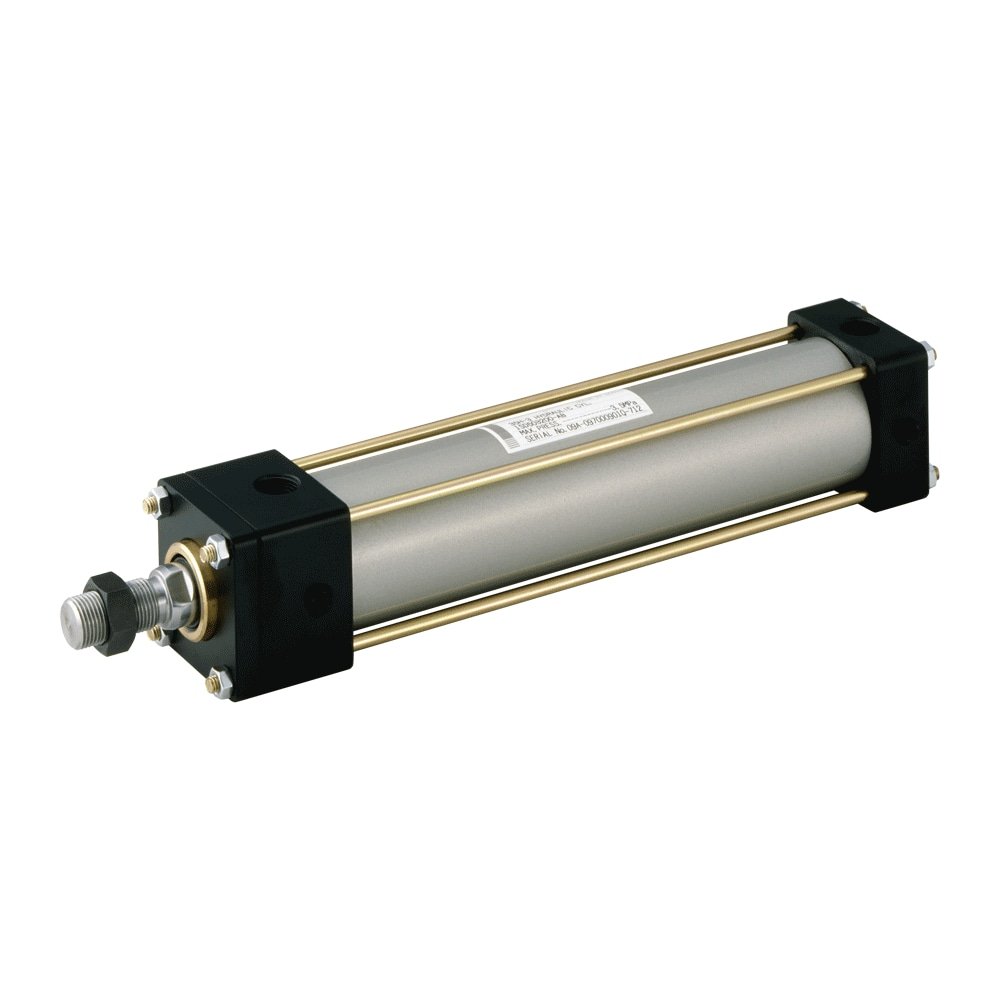

35H-3 Series
The 35H-3 Series offers reliable performance for general industrial applications, featuring easy-to-adjust proximity switches and durable sealing systems.
- Contact & non-contact magnetic proximity switches
- Easy adjustment with dual LED indicators
- Durable U-type piston packing
- Metal-fitting cushion structure for stability

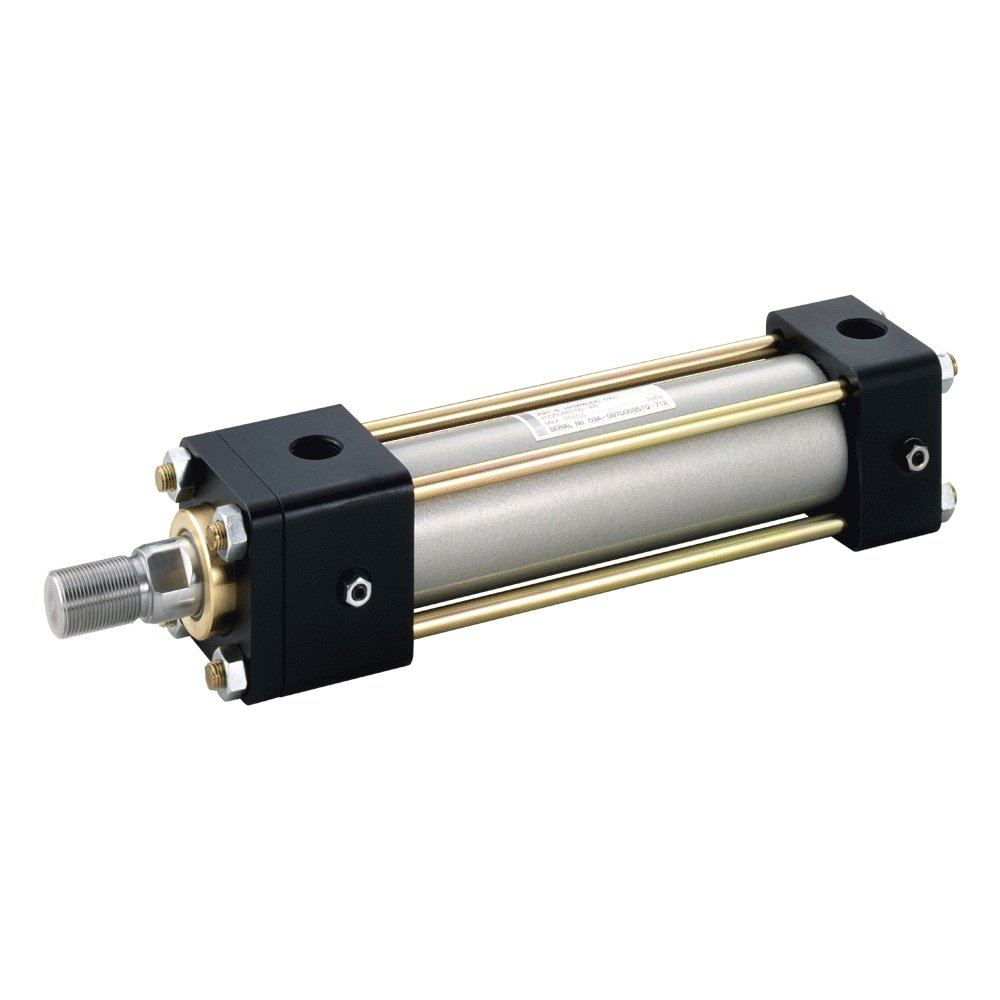

70H-8 Series
Designed for smooth operation and reduced shock, the 70H-8 Series features advanced cushioning technology.
- High-performance cushion for reduced stopping shock
- Easy cushion adjustment with redesigned valve
- Anti-loosening safety lock nut structure
- Enhanced operational safety

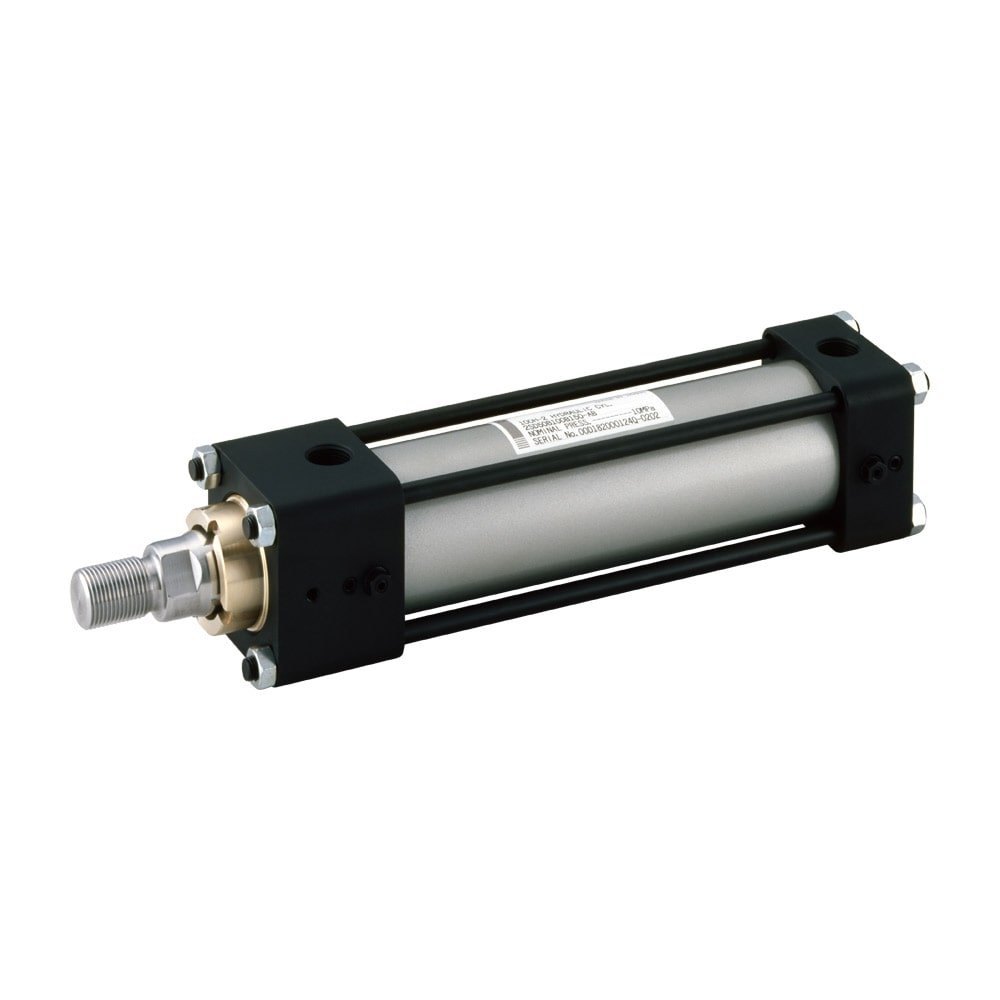

100H-2 Series
Built to ISO 10762 standards, this cylinder ensures smooth motion and consistent performance.
- Floating cushion for smooth start
- High-performance cushioning system
- ISO-standard sealing and groove design
140H-8 / 160H-1 Series
These series provide high durability and reliable performance for demanding industrial environments.
- Advanced cushioning for shock absorption
- ISO-compliant sealing systems
- Improved maintenance with standardized switches
- High resistance to wear and vibration

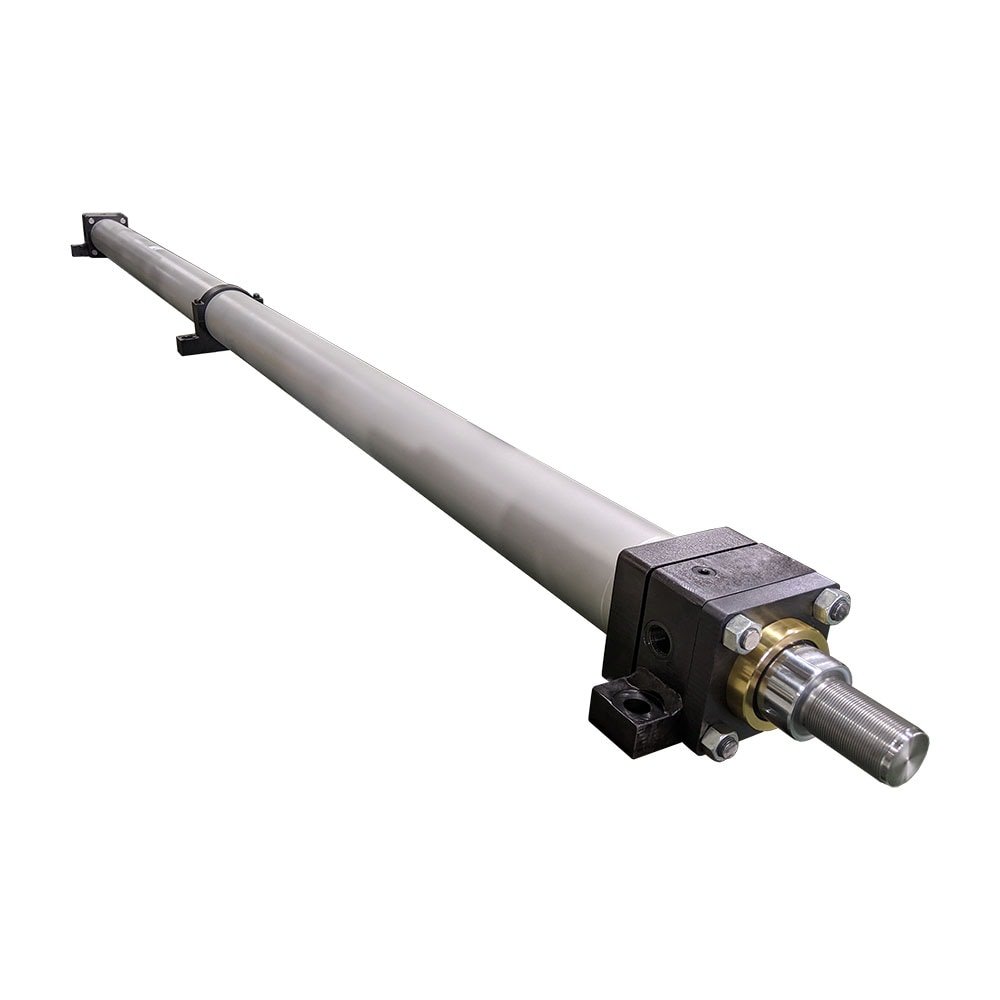

140L-1 Series
Designed for heavy-duty applications, offering superior strength and performance.
- Bore sizes from Ø63 to Ø160 mm
- Stroke lengths up to 3000 mm
- Easy-to-adjust cushion valve
- O-ring sealed flange for leak prevention
Space-Saving Hydraulic Cylinders

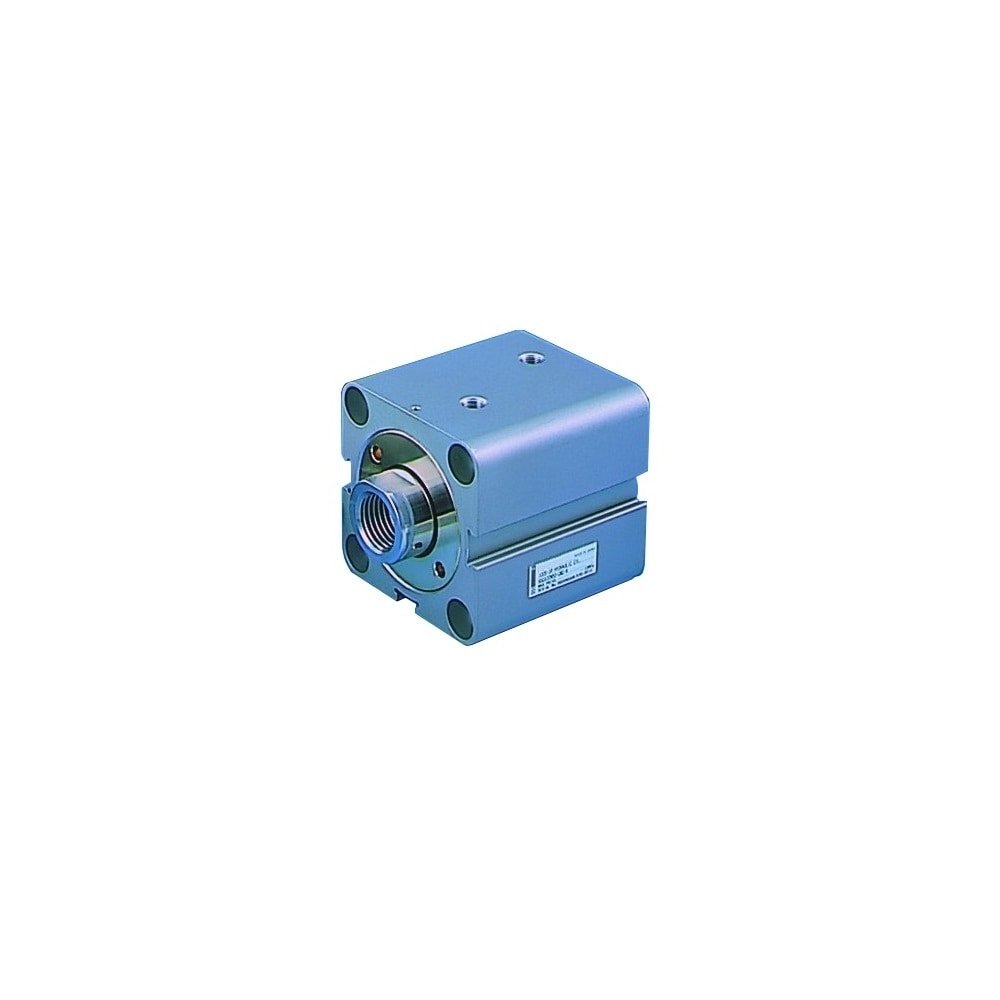

35S-1 / 100S-1 / HQS2 Series
Lightweight and compact, these cylinders are ideal for space-constrained applications.
- Special aluminum alloy body for reduced weight
- Easy maintenance and cost-effective design
- Magnetic proximity switch compatibility
- Suitable for varying pressure and duty cycles

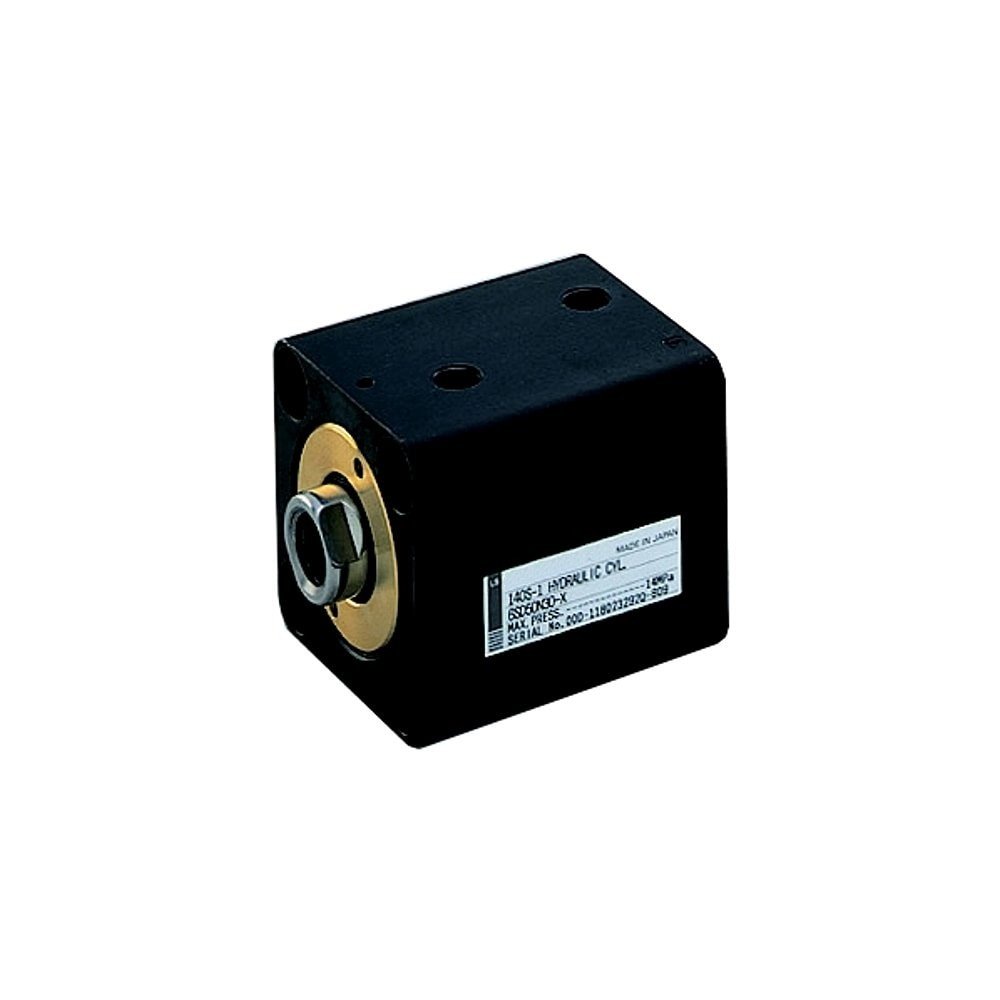

160S-1 / 210S-1 Series
Designed for high-cycle operations and durability in compact spaces.
- Up to 10 million operation cycles
- High temperature resistance (up to 120°C)
- Abrasion-resistant sealing materials
- Industry-leading compact dimensions
210N-1 Series
Engineered for precision clamping and secure installations.
- Fully threaded body design
- Integrated air vent mechanism
- High clamping force capability
- Easy fixture integration
Position Detecting Hydraulic Cylinders

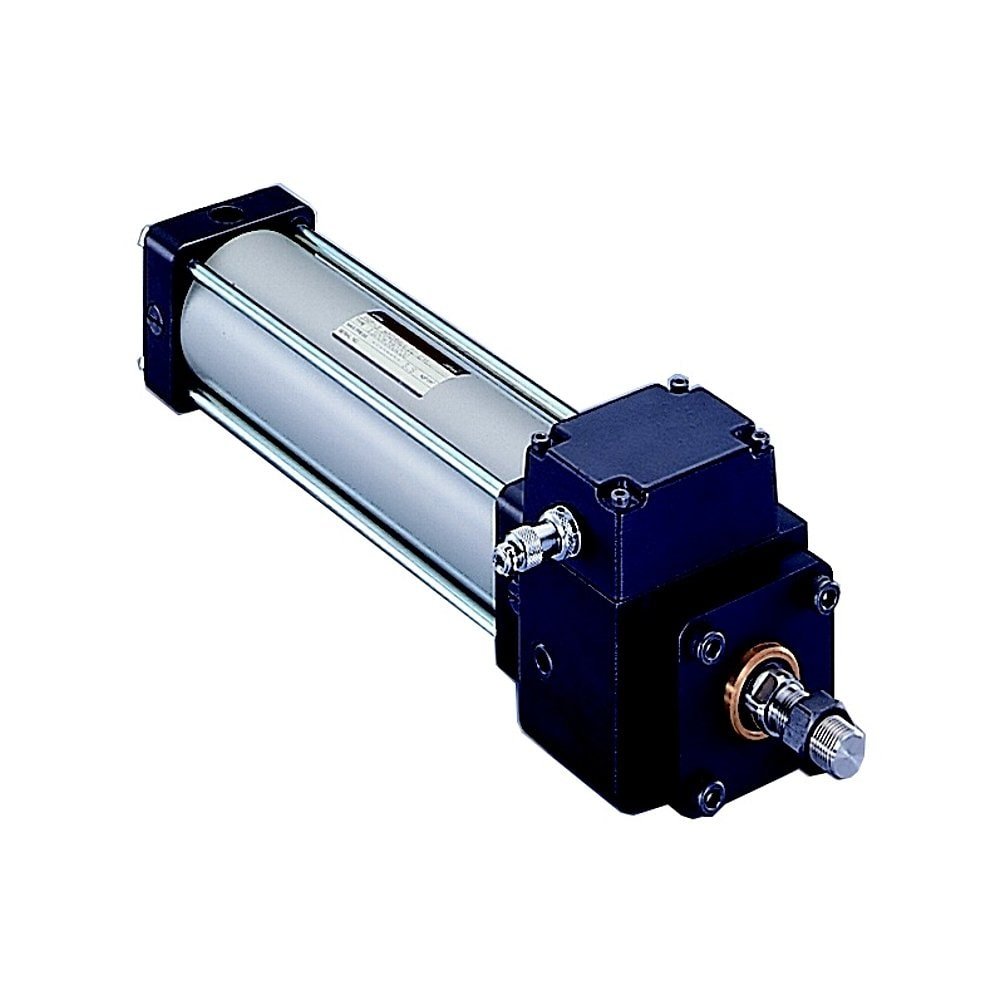

35P-3 / 70P-8 / 140P-8 Series
Ideal for automation and precision control systems, enabling accurate positioning.
- High-accuracy position control via sensors
- Compatible with computers and counters
- Resolution up to 0.1 mm per pulse
- Reliable performance in industrial automation
Absolute Position

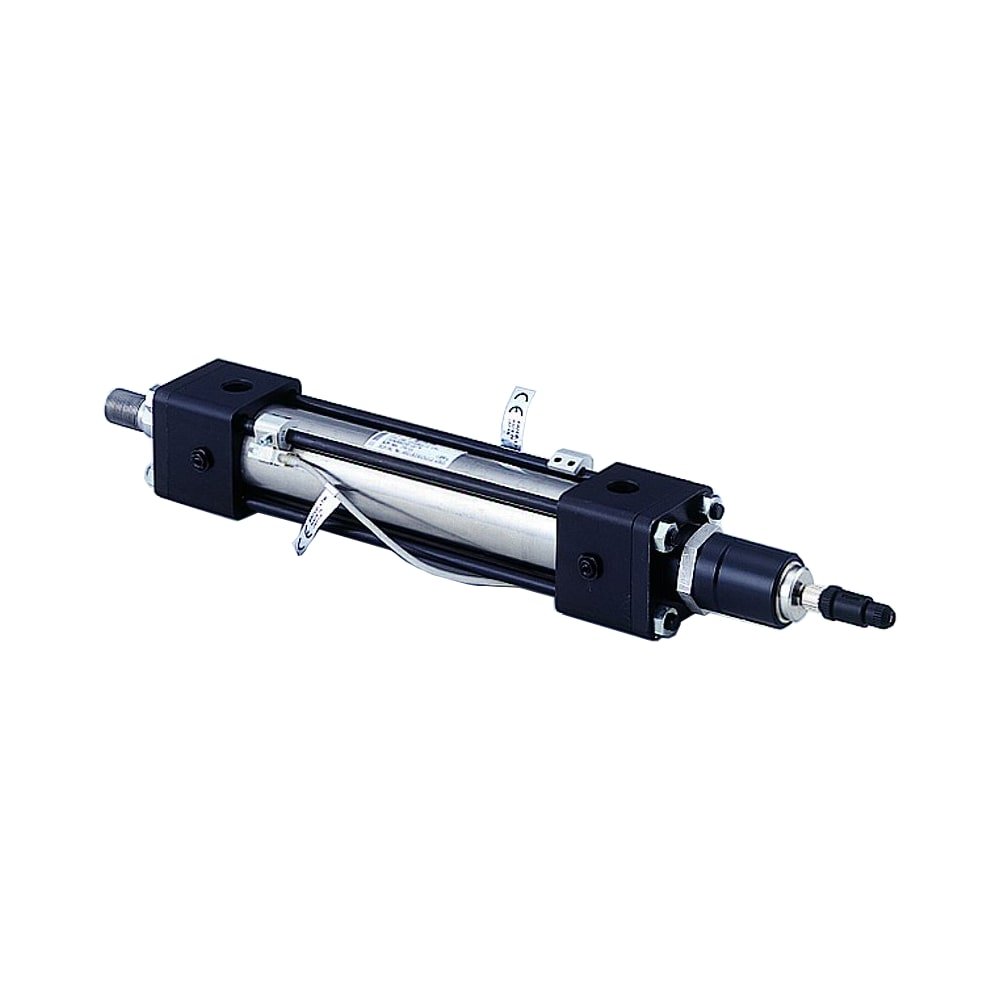

PTN-1B / PTH-1B Series
These cylinders deliver high-precision position feedback without recalibration.
- Magnetostrictive sensing technology
- No need for external detectors
- Compact and maintenance-free design
- Based on proven H-8 series platform
140MT-3 Series
Designed for steel mills and heavy industrial applications, offering exceptional strength.
- High resistance to pressure, vibration, and impact
- Precision-engineered for critical applications
- Long-lasting performance in harsh environments

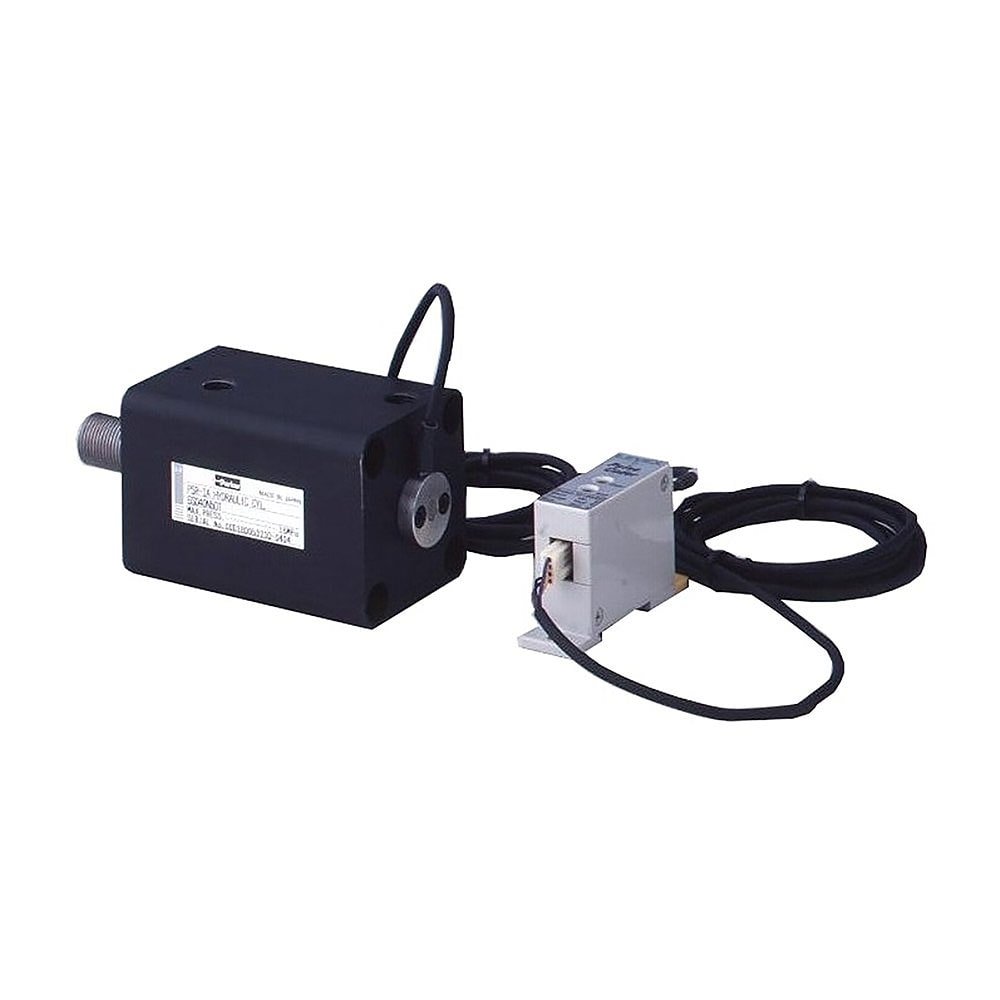

PSR-1A Series
Optimized for compact installations and harsh environments.
- Works in strong magnetic fields
- Compact and space-efficient design
- Compatible with advanced sensing systems
Old Model Hydraulic Systems

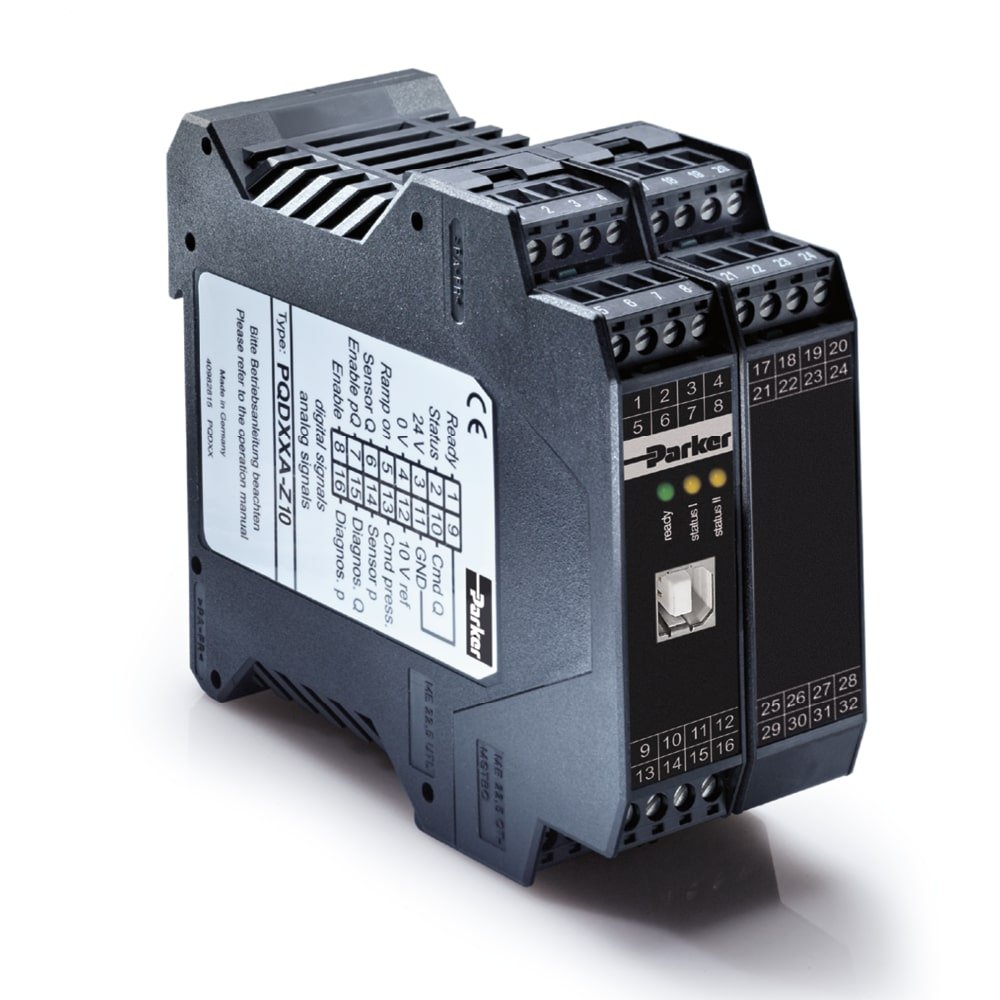

PQCPA Series
The PQCPA Series is a high-performance, environmentally friendly control system designed for accurate position measurement and monitoring. Built with lead-free components, it supports both analog and pulse input methods for flexible integration into industrial systems.
- Eco-Friendly Design: Lead-free components for safer operation
- Dual Input Capability: Supports both analog and pulse input
- High Resolution Accuracy: Equipped with 16-bit A/D converter (analog input)
- Fast Response: Up to 200 kHz response frequency (pulse input)
- Reliable Performance: Suitable for precision control applications
PTT-1B Series
The PTT-1B Series offers high-precision position sensing using advanced magnetostrictive technology. Designed for compact installations, it ensures accurate positioning without the need for additional detectors or recalibration.
- High Precision Measurement: Magnetostrictive sensing technology
- No External Sensors Required: Simplified system design
- Compact Construction: Space-saving and efficient
- Maintenance-Free Operation: No need for position correction
- Reliable Cushioning: Built-in high-performance cushioning for smooth operation
Telescopic Hydraulic Cylinders

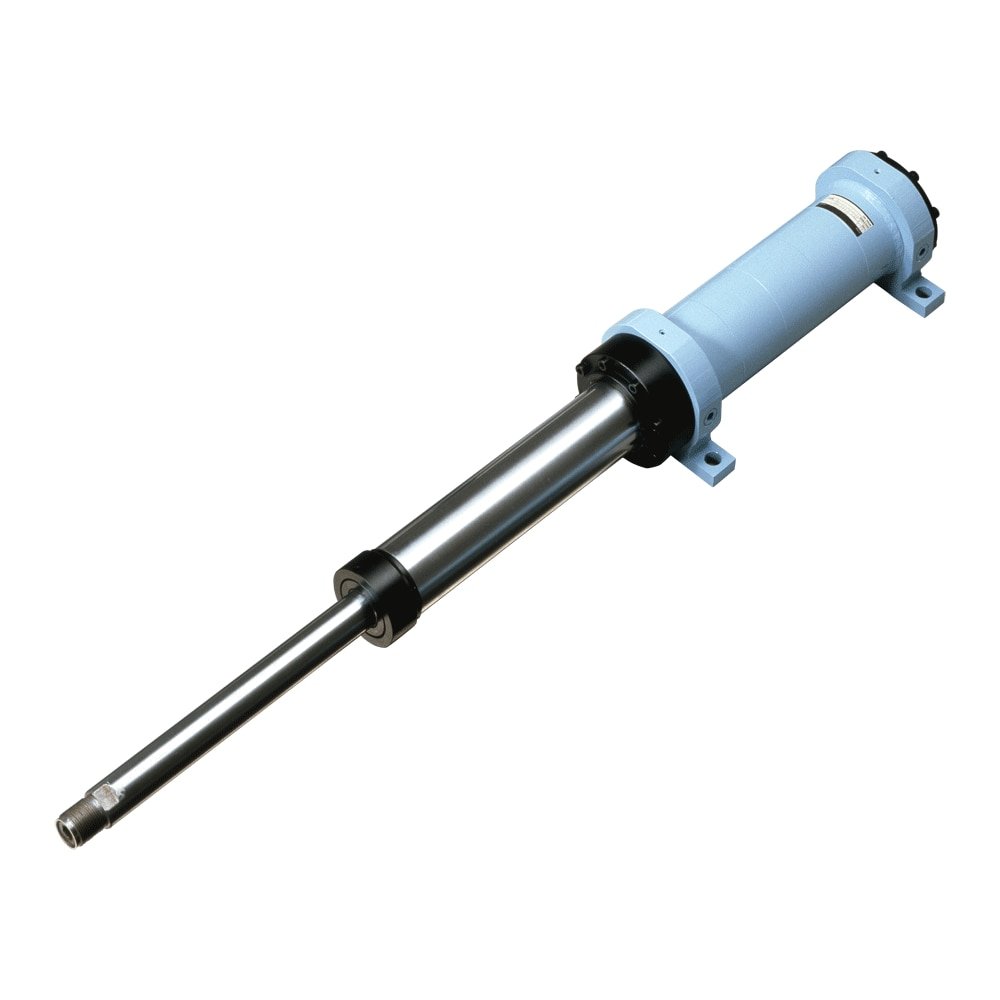

70T-2 Series
Ideal for space-saving vertical applications.
- 2-stage telescopic design
- Built-in cushioning at stroke ends
- Smooth and uniform motion sequence
Rotary Actuators

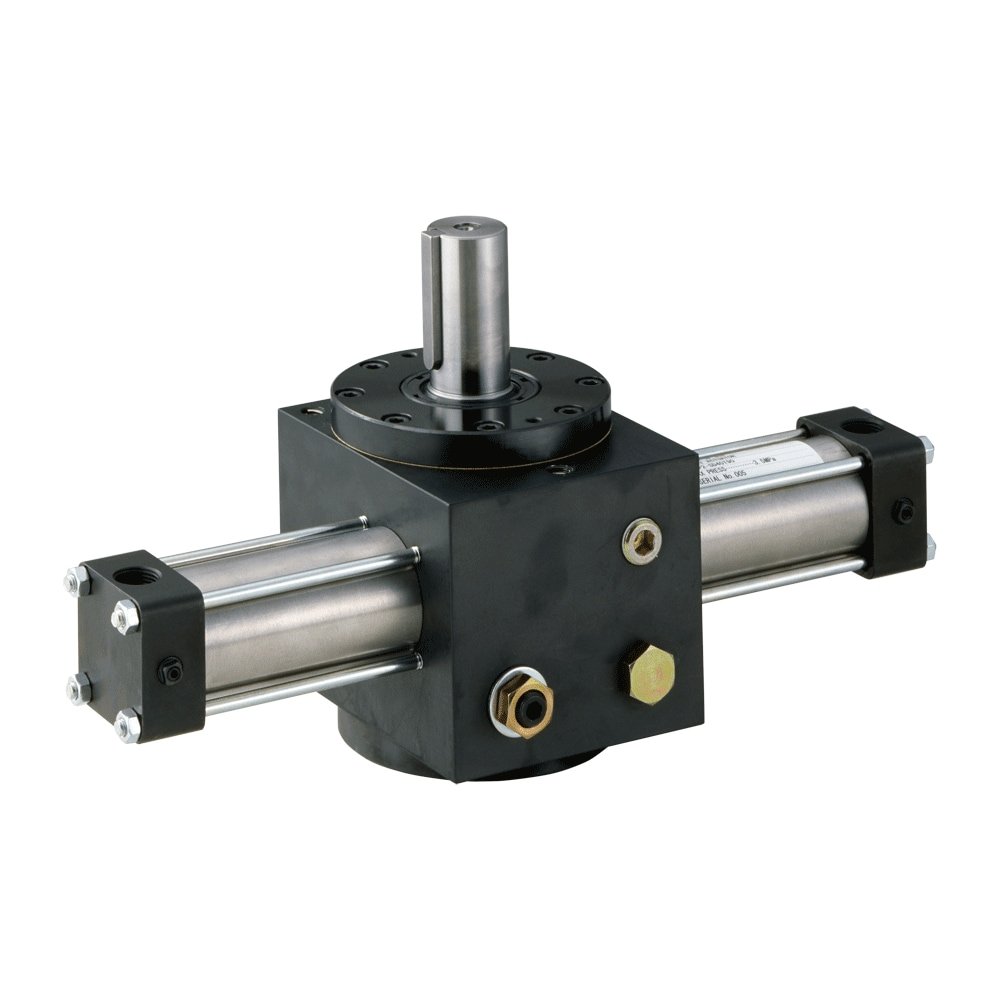

35RP2 Series
Provides precise rotational control with minimal backlash.
- Anti-backlash mechanism for smooth rotation
- Adjustable rotation angle (±5°)
- Built-in magnet for sensor integration

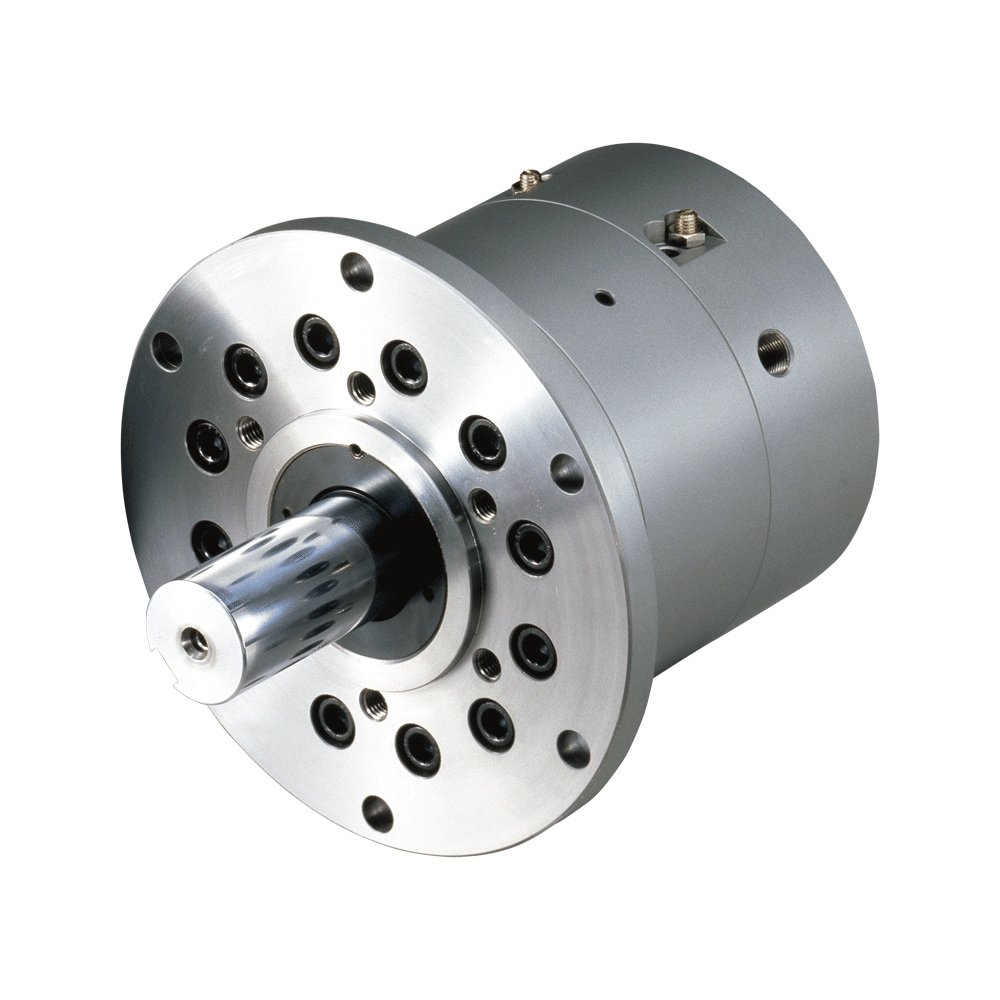

70RV Series
Designed for efficient rotational motion in compact systems.
- Single and double vane configurations
- Optional cushioning system
- Standard shaft key design

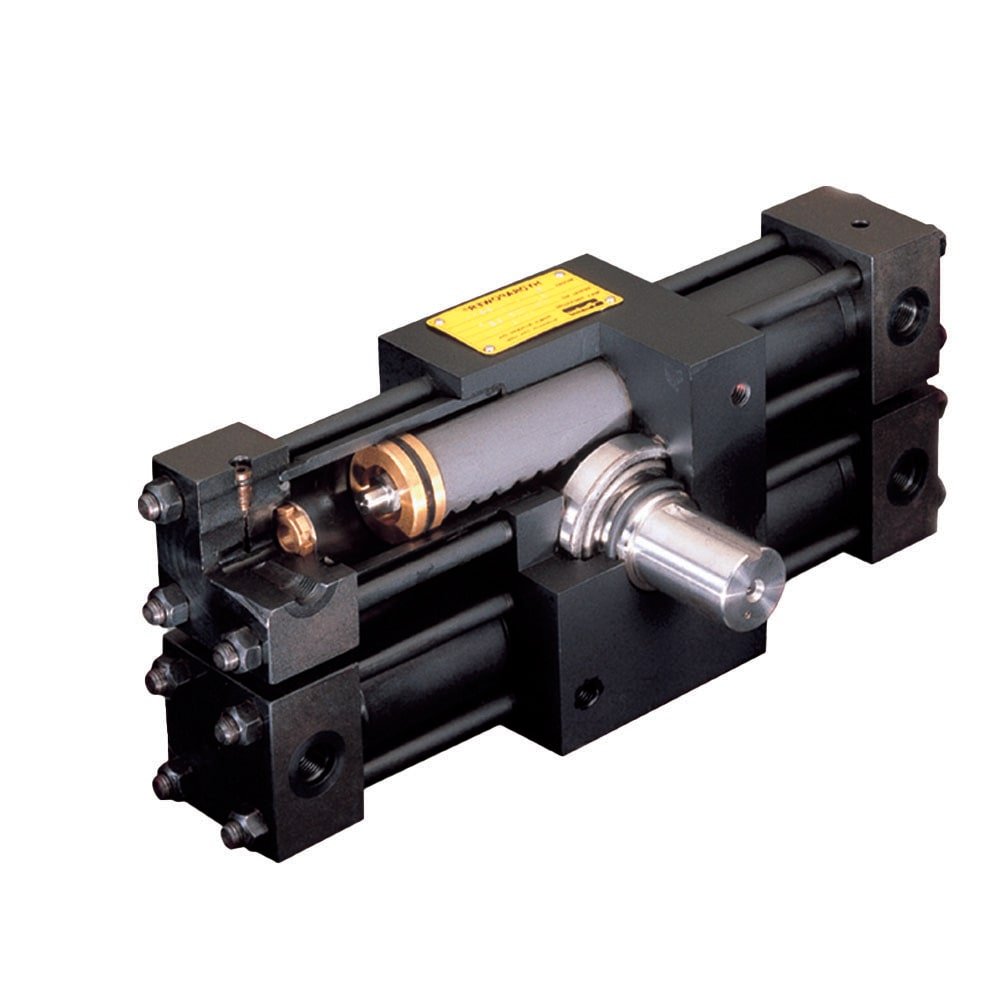

HTR Series
Engineered for heavy-duty rotational applications requiring high torque output.
- High-load tapered roller bearings
- Strong ductile iron/steel housing
- BSPP and Rc port compatibility
- Suitable for high-output torque applications
