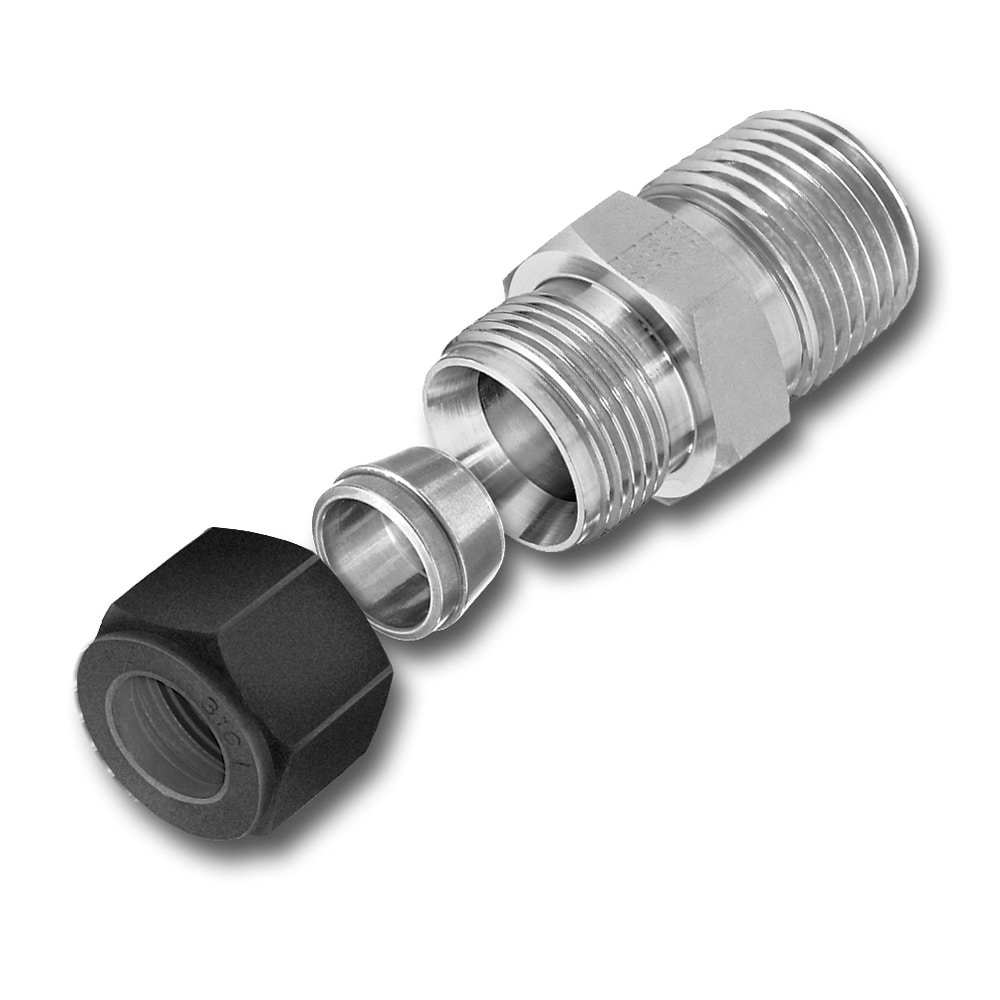

Tube Fitting, Single Ferrule Compression Fitting – CPI™ Series
Parker CPI™ single ferrule compression tube fittings are designed for leak-free connections in process, power, and instrumentation applications. The single ferrule design ensures easy make-up and reliable performance in vibration applications. Manufactured from heat code traceable 316 stainless steel and other corrosion-resistant materials.
- Single ferrule for easy make-up
- Molybdenum Disulfide coated nuts for low torque make-up
- Parker Suparcase™ ferrule for corrosion resistance
- Hardened ferrules for optimum performance

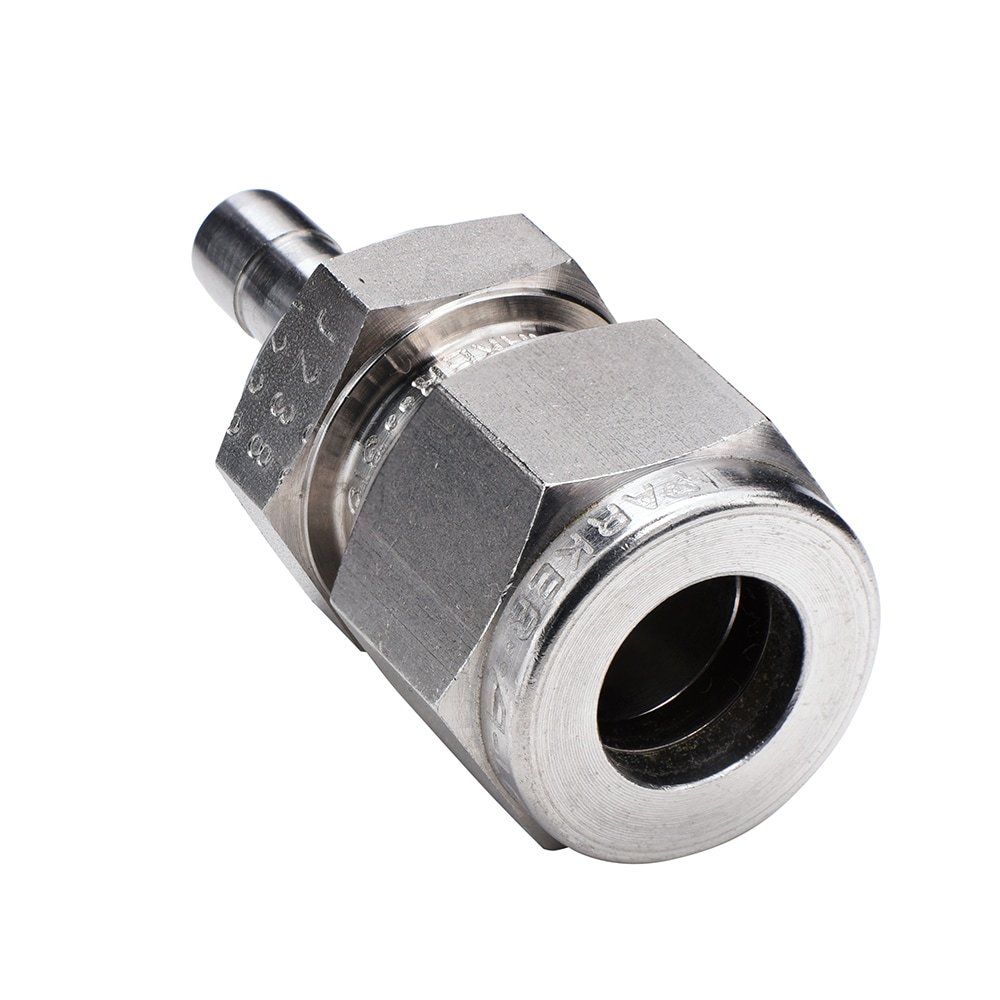

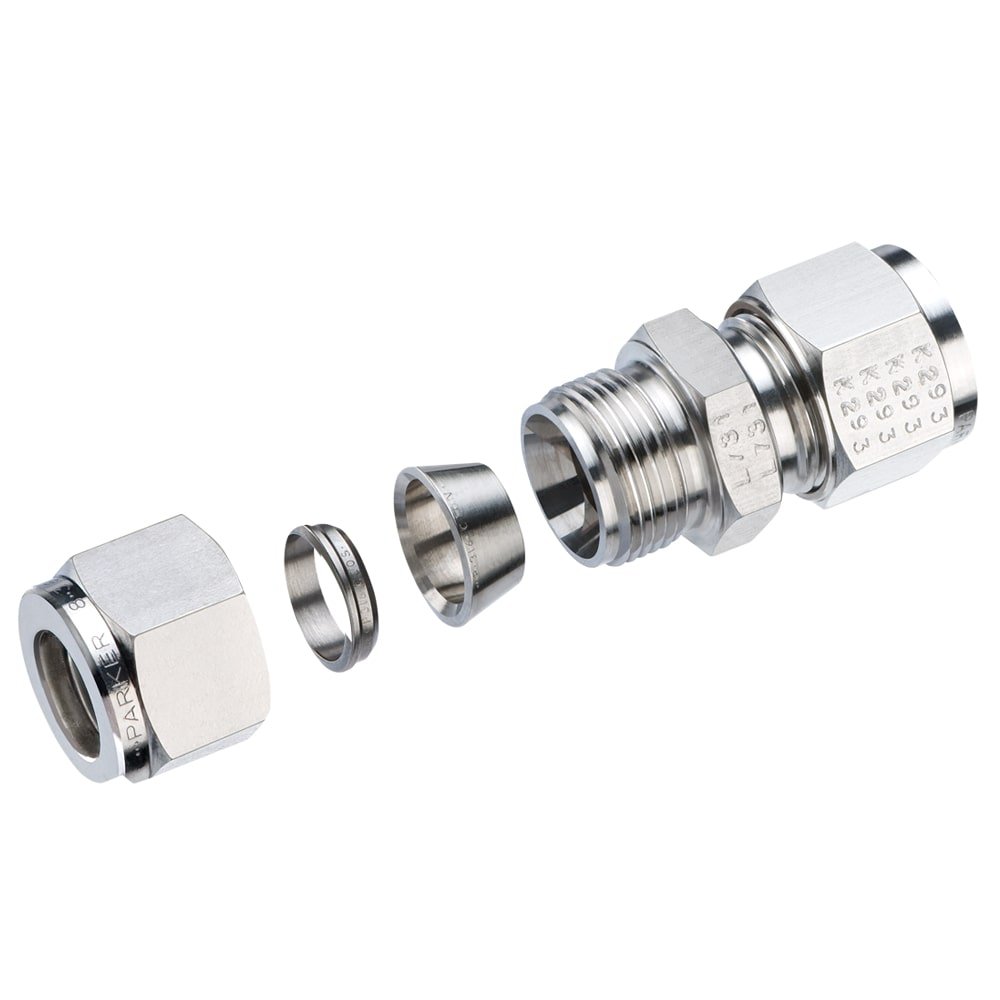

Tube Fitting, Two Ferrule Compression Fitting – A-LOK® Series
Parker’s A-LOK® two ferrule compression tube fittings provide reliable leak-free connections for instrumentation, process control, and analyzer applications. Available in a wide range of sizes, materials, and configurations for industrial applications.
- Wide range of configuration styles
- Tube to male/female pipe connections
- Tube unions and port connectors
- Parker Suparcase™ surface treatment
- Hardened ferrules for leak-free connections
- Silver plated nuts for gall resistance

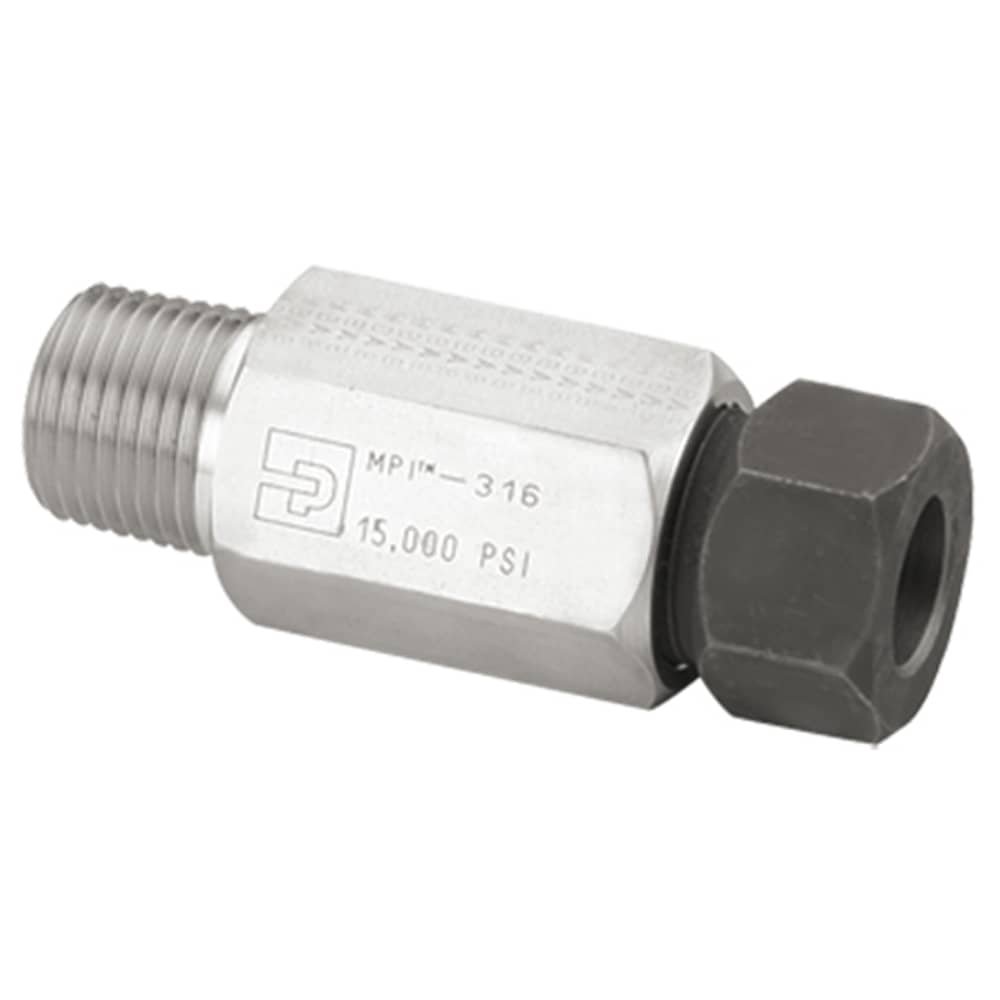

Tube Fitting, Inverted Two Ferrule Compression – MPI Series
Parker MPI™ fittings are inverted two ferrule compression fittings designed for secure and leak-resistant connections in high-pressure applications from 6,000 to 15,000 psi. Suitable for liquids, gases, and chemical applications.
- Corrosion-resistant Parker Suparcase® ferrules
- Improved resistance to pressure and vibration
- Molybdenum disulfide-coated inverted nut
- Easy assembly and multiple remakes
- Long tube-support area for vibration resistance

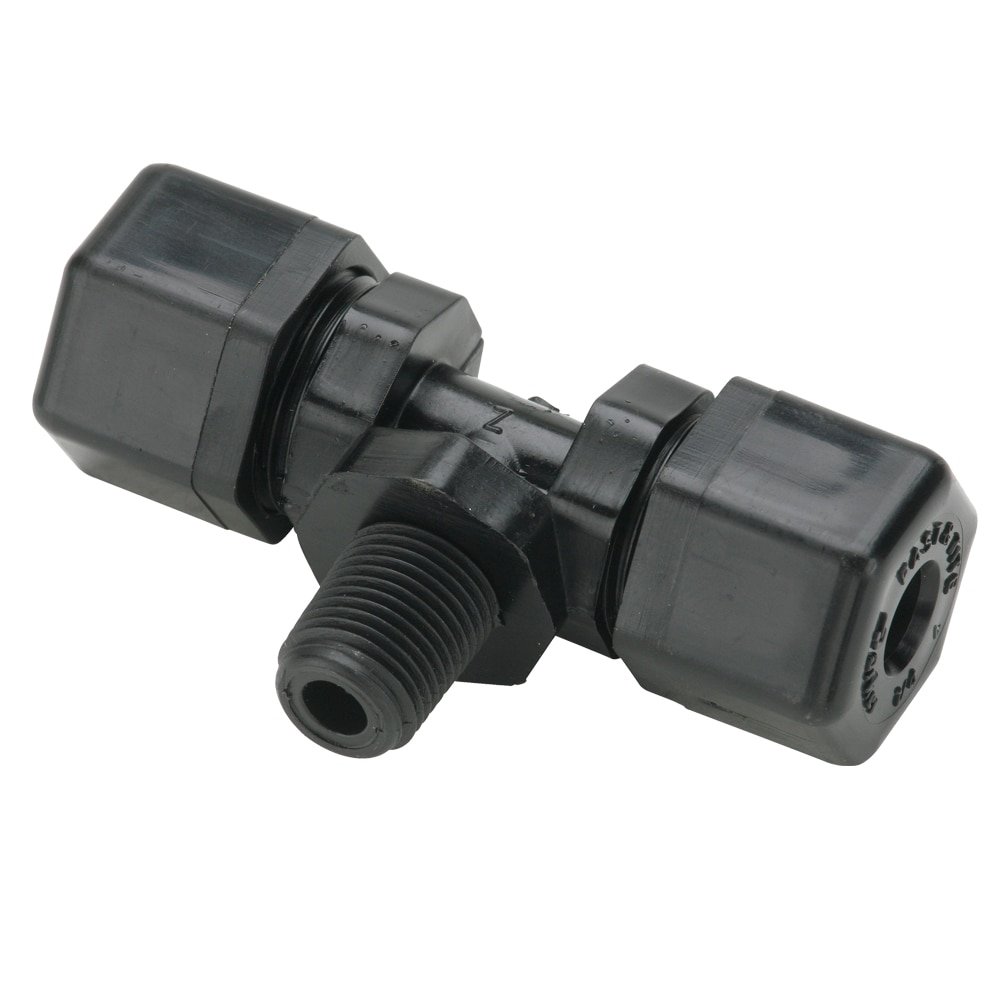

Compression Style Plastic Fittings – Fast & Tite
Parker Fast & Tite fittings are compression style fittings designed for quick installation without tools. They provide leak-proof sealing with secure tube retention using a grab ring and nitrile O-ring.
- Polypropylene or Nylon construction
- Tool-free installation
- Stainless steel grab ring for tube retention
- Nitrile O-ring for positive sealing
- FDA compliant and NSF-51 approved

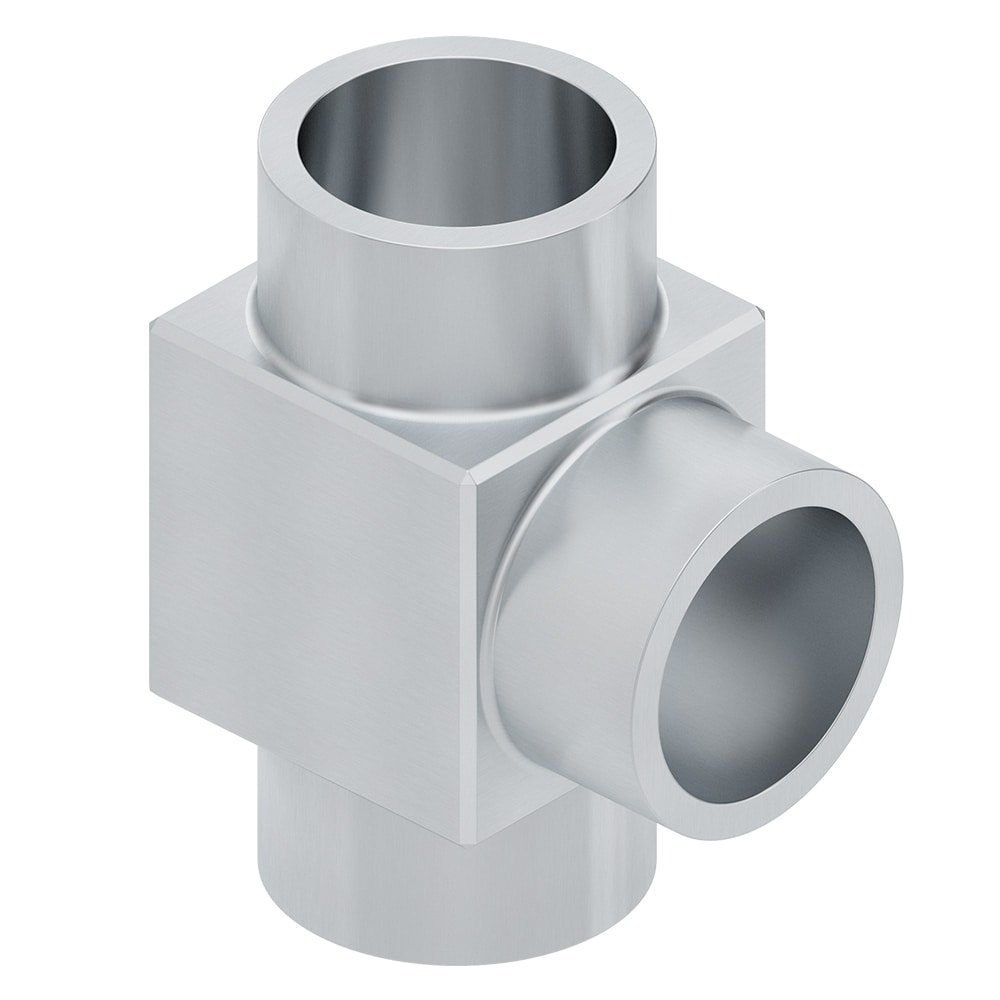

MiniButtweld™ Ultra-High Purity Tube Buttweld Fitting
Parker Veriflo MiniButtweld™ fittings are designed for ultra-high purity gas distribution systems requiring welded tubing performance and reliability. These fittings minimize corrosion, outgassing, and particle entrapment.
- Surface enhancement for corrosion resistance
- Smooth internal diameter transition
- 316L stainless steel construction
- Compact design for tight spaces
- 5 Ra internal electropolish finish
Pipe Fittings, Instrumentation
Parker Instrumentation Pipe Fittings are designed for high-pressure and high-temperature applications up to 10,000 psi. These fittings provide reliable tubing connections while meeting ANSI standards.
- Working pressures up to 10,000 psi
- ANSI compliant NPT threads
- Rolled male threads for extra strength
- Available in stainless steel, brass, and steel
- Protected exposed threads for safety

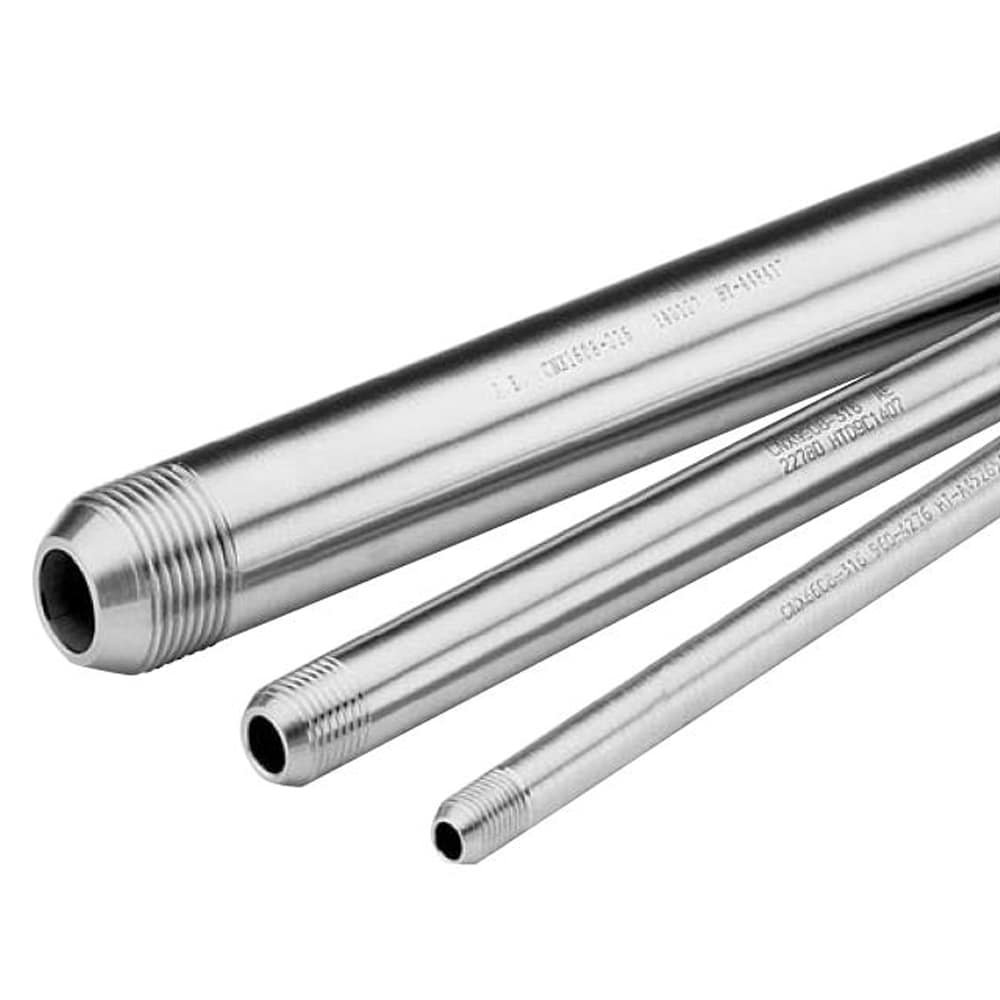

Autoclave Cone and Thread Fittings, 20,000 PSI – SF Series
Parker Autoclave SF Series cone and thread fittings are designed for medium pressure applications up to 20,000 PSI with high-flow performance and reliable sealing.
- Working pressures up to 20,000 psi
- Larger bore sizes for increased flow
- Connection weep holes for leak detection
- 316 stainless steel construction
- Wide operating temperature range
Autoclave Compression Fitting, 15,000 PSI – SW Series
Parker Autoclave SW Series fittings use a single ferrule compression sleeve design for systems up to 15,000 PSI, ensuring fast installation and reliable leak-tight performance.
- Single ferrule compression sleeve
- Fast and easy make-up
- Bubble-tight sealing performance
- Molybdenum disulfide-coated nuts
- 316 stainless steel construction
Autoclave Cone and Thread Fittings, 150,000 PSI – F Series
Parker Autoclave F Series high-pressure fittings are designed for fluid handling systems up to 150,000 PSI in demanding gas and liquid applications.
- Coned-and-threaded connection
- High-pressure performance up to 150,000 PSI
- Anti-vibration connection components
- Autofrettaged tubing compatibility
- 316 stainless steel construction

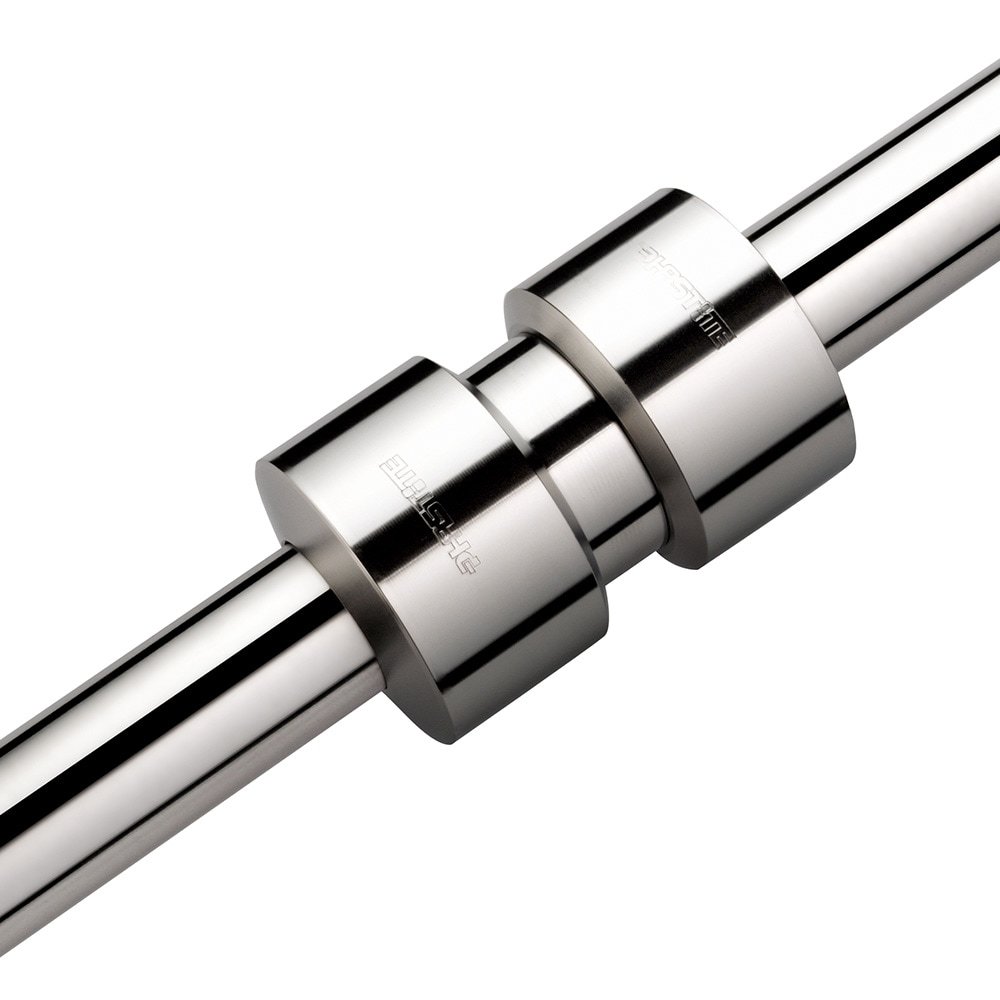

Permanent Ferrule Less Tube Fittings – Phastite Series
Phastite® tube fittings eliminate the need for welding and provide quick installation with reliable performance in applications up to 20,000 psi.
- No welding required
- Reduced installation costs
- Simple assembly process
- Vibration tolerant design
- No loose parts

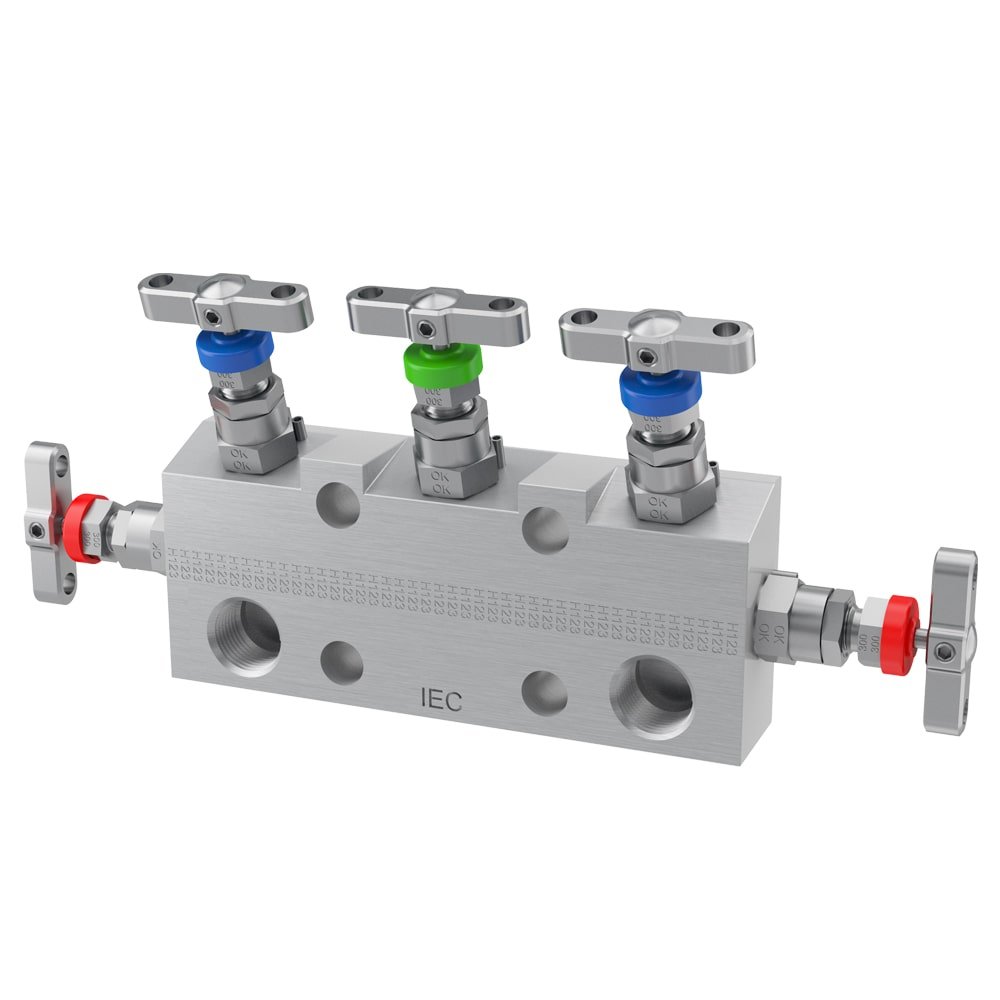

2, 3 and 5 Valve Manifolds – H Series
Parker H Series manifolds are designed for process instrumentation applications with multiple block configurations and reliable isolation performance.
- Minimal leakage paths
- Bi-directional operation
- Low torque performance
- Integral compression ends available
- Full hydrostatic and air tested
